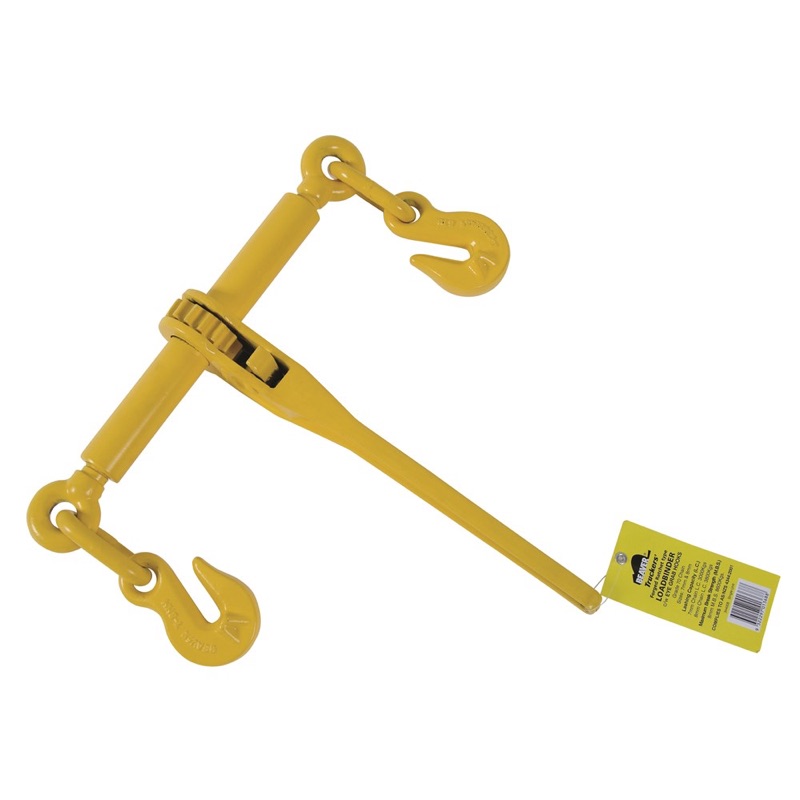

Beaver G70 Ratched-Type Loadbinder with Eye Grab Hooks 10mm
344010per Each
$78.43 inc GSTTrade $70.59, save $7.84Trade accounts save 10%. Apply with your ABN
| UOM | Each |
| a mm | 350 |
| b mm | 32.5 |
| c mm | 65 |
| g mm | 12 |
| LC (kg) | 6000 |
| e Open mm | 768 |
| f Open mm | 836 |
| Chain Size | 10mm |
| Weight (kg) | 5.1 |
| e Closed mm | 603 |
| f Closed mm | 671 |
| Chain Size and Description | 10mm c/w winged eye grab hooks |
About this product
The Beaver G70 Ratched-Type Loadbinder with Eye Grab Hooks in 10mm is the tensioning device that pulls your transport chain tight and holds the load on the deck. This is the heaviest size in the range, matched to 10mm Grade 70 chain and rated to a 6000kg lashing capacity, so it suits big steel, plant and mining gear rather than light trailer work.
The ratchet handle does the hard work, winding tension on without a cheater bar or a wrestle. Winged eye grab hooks let you take the chain at full lashing capacity. Closed length runs 603mm to 671mm and opens out to 768mm through 836mm, giving 165mm of take up. It weighs 5.1kg and carries a yellow painted finish. Complies to AS/NZS 4344.
Common questions
- what chain size does the 10mm Beaver loadbinder suit
- It is built for 10mm Grade 70 transport chain and comes fitted with winged eye grab hooks.
- what is the lashing capacity of the Beaver G70 ratchet loadbinder 10mm
- The lashing capacity is 6000kg, which is the highest in this range of four sizes.
- how much take up does this ratchet loadbinder have
- Closed it measures 603mm to 671mm and open it measures 768mm to 836mm, so you get about 165mm of adjustment.
Full specifications
| Product Code | Chain Size and Description | f Closed mm | e Closed mm | g mm | b mm | a mm | f Open mm | e Open mm | c mm | LC (kg) | Weight (kg) | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 344006 | 6mm c/w winged eye grab hooks | 459 | 415 | 9.5 | 21 | 205 | 572 | 528 | 42 | 2300 | 1.69 | Each |
| 344008 | 7-8 c/w winged eye grab hooks | 638 | 583 | 11 | 32.5 | 350 | 799 | 744 | 65 | 3800 | 4.7 | Each |
| 344010 | 10mm c/w winged eye grab hooks | 671 | 603 | 12 | 32.5 | 350 | 836 | 768 | 65 | 6000 | 5.1 | Each |
| 344013 | 13mm c/w winged eye grab hooks | 776 | 690 | 15 | 32.5 | 350 | 946 | 860 | 65 | 9000 | 7.18 | Each |
