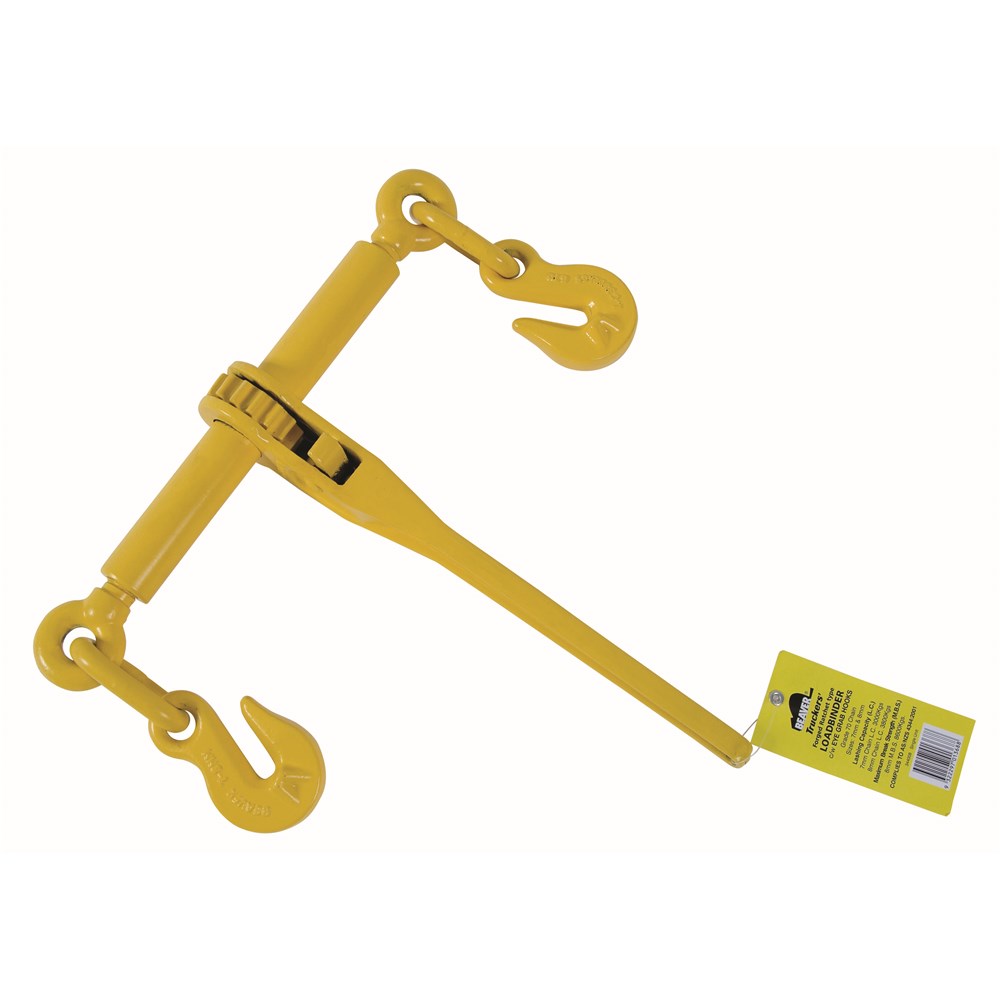

Beaver G70 Ratched-Type Loadbinder with Eye Grab Hooks 7-8mm
344008per Each
$72.02 inc GSTTrade $64.82, save $7.20Trade accounts save 10%. Apply with your ABN
| UOM | Each |
| a mm | 350 |
| b mm | 32.5 |
| c mm | 65 |
| g mm | 11 |
| LC (kg) | 3800 |
| e Open mm | 744 |
| f Open mm | 799 |
| Chain Size | 7-8mm |
| Weight (kg) | 4.7 |
| e Closed mm | 583 |
| f Closed mm | 638 |
| Chain Size and Description | 7-8 c/w winged eye grab hooks |
About this product
The Beaver G70 Ratched-Type Loadbinder with Eye Grab Hooks 7-8mm is the mid-size binder in the range, matched to 7-8mm Grade 70 transport chain and rated to a 3800kg lashing capacity. The winged eye grab hooks seat properly on the chain so you get the full lashing capacity out of the assembly, rather than derating at the hook. Ratchet handle does the tensioning work, so pulling a load down tight takes less effort than a lever binder.
Body length runs 350mm, with a takeup from 583mm closed to 744mm open at the eye, or 638mm to 799mm over the hooks. Weight is 4.7kg. Yellow painted finish makes it easy to spot on a deck or in a truck box. Complies to AS/NZS 4344. Suits general load restraint on floats, tippers and site trucks where 7-8mm chain is the standard.
Common questions
- what is the lashing capacity of a 7-8mm G70 loadbinder
- This Beaver G70 ratchet loadbinder has a lashing capacity of 3800kg. The winged eye grab hooks let you reach that full capacity on the chain.
- what chain size does this Beaver ratchet loadbinder suit
- It is built for 7-8mm Grade 70 load chain and comes fitted with winged eye grab hooks to match.
- ratchet loadbinder vs lever loadbinder which is better
- The ratchet handle on this binder makes tensioning the chain easier and more controlled than a lever type, which is why many crews prefer it for repeat tie downs.
Full specifications
| Product Code | Chain Size and Description | f Closed mm | e Closed mm | g mm | b mm | a mm | f Open mm | e Open mm | c mm | LC (kg) | Weight (kg) | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 344006 | 6mm c/w winged eye grab hooks | 459 | 415 | 9.5 | 21 | 205 | 572 | 528 | 42 | 2300 | 1.69 | Each |
| 344008 | 7-8 c/w winged eye grab hooks | 638 | 583 | 11 | 32.5 | 350 | 799 | 744 | 65 | 3800 | 4.7 | Each |
| 344010 | 10mm c/w winged eye grab hooks | 671 | 603 | 12 | 32.5 | 350 | 836 | 768 | 65 | 6000 | 5.1 | Each |
| 344013 | 13mm c/w winged eye grab hooks | 776 | 690 | 15 | 32.5 | 350 | 946 | 860 | 65 | 9000 | 7.18 | Each |
Questions about this equipment? Send us a message and we’ll check it against the job.
