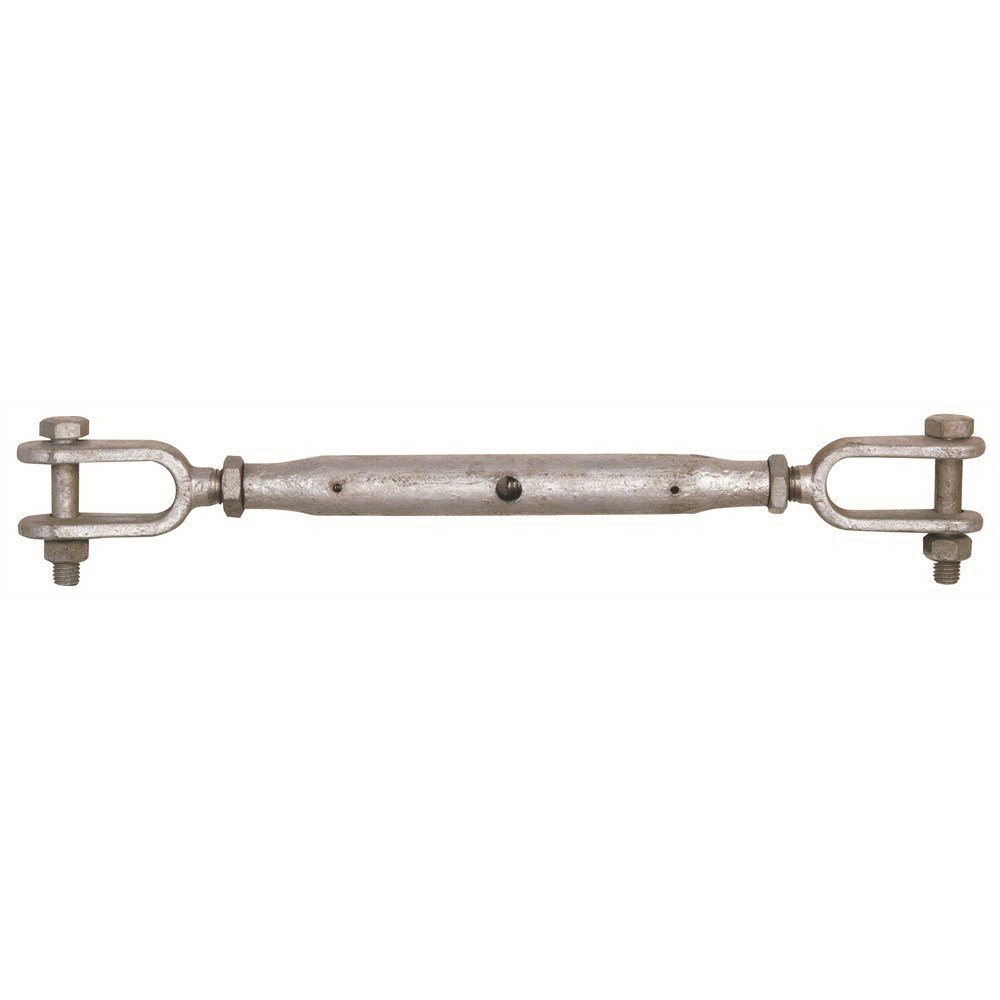

Beaver Jaw and Jaw Rigging Screws with Locknuts 38mm
328338per Each
$407.61 Trade inc GST$452.90 without a trade accountTrade accounts save 10% — apply with your ABN
| G | 47mm |
| H | 90mm |
| L | 407mm |
| D1 | 57mm |
| D2 | 38mm |
| D3 | 33mm |
| WLL | 6t |
| Finish | Hot Dipped Galvanised |
| Weight | 12.6kg |
| e (Open) | 949mm |
| Size (mm) | 38mm |
| e (Closed) | 670mm |
| Thread Size | 38mm |
Full specifications
| Product Code | Size (mm) | WLL | Finish | Weight |
|---|---|---|---|---|
| 328310 | 10mm | 0.3t | Hot Dipped Galvanised | 0.44kg |
| 328313 | 13mm | 0.5t | Hot Dipped Galvanised | 0.85kg |
| 328316 | 16mm | 0.75t | Hot Dipped Galvanised | 1.4kg |
| 328320 | 20mm | 1.25t | Hot Dipped Galvanised | 2.2kg |
| 328324 | 24mm | 2.5t | Hot Dipped Galvanised | 4.5kg |
| 328333 | 33mm | 5t | Hot Dipped Galvanised | 6.4kg |
| 328338 | 38mm | 6t | Hot Dipped Galvanised | 12.6kg |
| 328350 | 50mm | 10t | Hot Dipped Galvanised | 24kg |
| Product Code | Size (mm) | e (Open) | e (Closed) | L | D1 | D2 | D3 | G | H |
|---|---|---|---|---|---|---|---|---|---|
| 328310 | 10mm | 349mm | 235mm | 152mm | 21mm | 10mm | 8mm | 11mm | 21mm |
| 328313 | 13mm | 524mm | 343mm | 229mm | 25mm | 13mm | 9mm | 19mm | 35mm |
| 328316 | 16mm | 550mm | 361mm | 229mm | 27mm | 16mm | 13mm | 22mm | 51mm |
| 328320 | 20mm | 550mm | 387mm | 229mm | 34mm | 20mm | 16mm | 22mm | 48mm |
| 328324 | 24mm | 822mm | 556mm | 356mm | 42mm | 24mm | 22mm | 32mm | 65mm |
| 328333 | 33mm | 872mm | 604mm | 381mm | 51mm | 33mm | 24mm | 38mm | 76mm |
| 328338 | 38mm | 949mm | 670mm | 407mm | 57mm | 38mm | 33mm | 47mm | 90mm |
| 328350 | 50mm | 977mm | 743mm | 407mm | 76mm | 48mm | 42mm | 51mm | 121mm |
Questions about this equipment? Send us a message and we’ll check it against the job.
