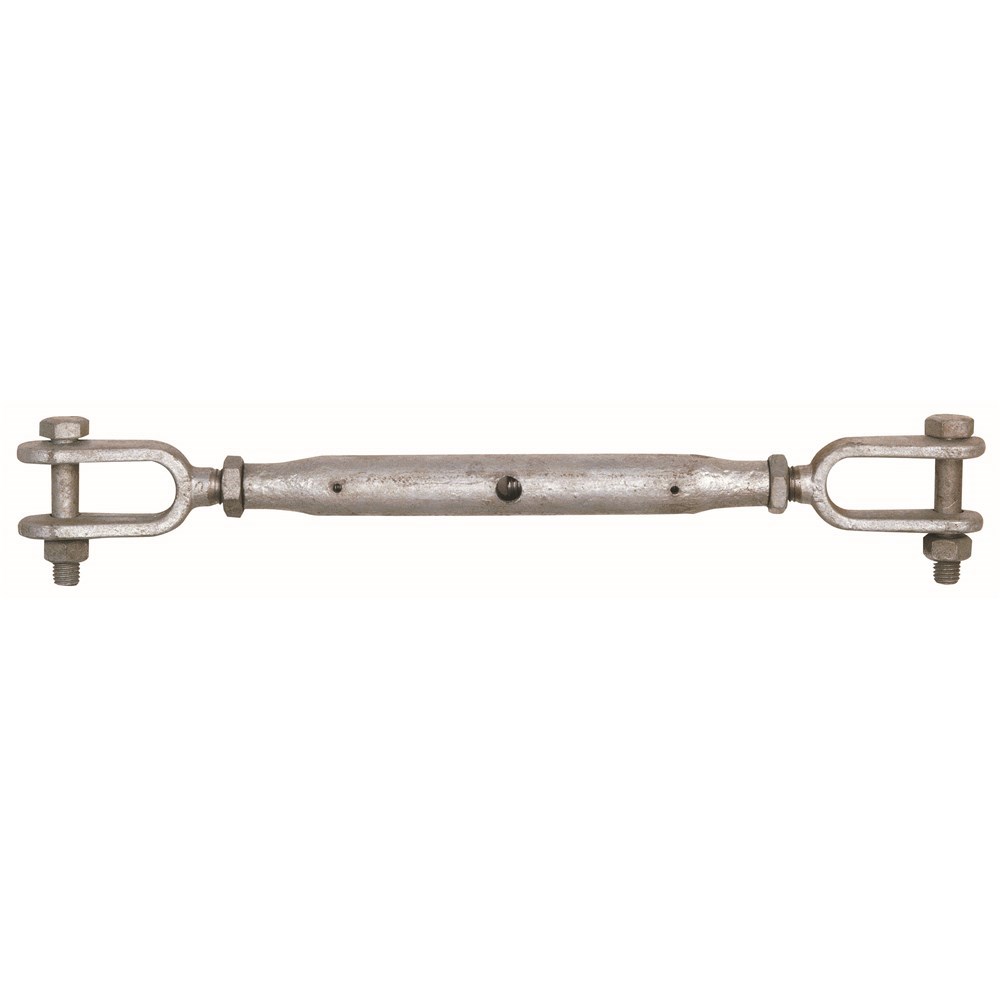

Beaver Jaw and Jaw Rigging Screws with Locknuts 24mm
328324per Each
$97.74 inc GSTTrade $87.97, save $9.77Trade accounts save 10%. Apply with your ABN
| G | 32mm |
| H | 65mm |
| L | 356mm |
| D1 | 42mm |
| D2 | 24mm |
| D3 | 22mm |
| WLL | 2.5t |
| Finish | Hot Dipped Galvanised |
| Weight | 4.5kg |
| e (Open) | 822mm |
| Size (mm) | 24mm |
| e (Closed) | 556mm |
| Thread Size | 24mm |
About this product
The Beaver Jaw and Jaw Rigging Screws with Locknuts 24mm is a turnbuckle for straight line tensioning of wire rope and chain assemblies, rated to a 2.5t working load limit. This is the 24mm thread size in the range, with a 556mm closed length opening out to 822mm, so you get a decent amount of take-up when you are straining a long run. Body length is 356mm and the jaw pin measures 22mm, and the whole unit weighs 4.5kg.
Both ends are jaw fittings, which suits connecting straight to a shackle, thimble or chain link without a second fitting. Made from Grade L high tensile material, quenched and tempered, with a hot dipped galvanised finish that holds up outdoors. Locknuts keep the thread where you set it once tension is on. Step up or down a size in the range if the 2.5t rating or the adjustment range does not match the job.
Common questions
- what is the WLL of a 24mm rigging screw
- The 24mm Beaver jaw and jaw rigging screw has a working load limit of 2.5t. That figure applies to in line tensioning and lifting use.
- how much adjustment does a 24mm beaver rigging screw have
- It measures 556mm closed and 822mm open, giving you 266mm of take-up between the two end positions.
- are beaver rigging screws suitable for outdoor use
- Yes. They are quenched and tempered Grade L high tensile material with a hot dipped galvanised finish, which is made for outdoor exposure.
Full specifications
| Product Code | Size (mm) | WLL | Finish | Weight |
|---|---|---|---|---|
| 328310 | 10mm | 0.3t | Hot Dipped Galvanised | 0.44kg |
| 328313 | 13mm | 0.5t | Hot Dipped Galvanised | 0.85kg |
| 328316 | 16mm | 0.75t | Hot Dipped Galvanised | 1.4kg |
| 328320 | 20mm | 1.25t | Hot Dipped Galvanised | 2.2kg |
| 328324 | 24mm | 2.5t | Hot Dipped Galvanised | 4.5kg |
| 328333 | 33mm | 5t | Hot Dipped Galvanised | 6.4kg |
| 328338 | 38mm | 6t | Hot Dipped Galvanised | 12.6kg |
| 328350 | 50mm | 10t | Hot Dipped Galvanised | 24kg |
| Product Code | Size (mm) | e (Open) | e (Closed) | L | D1 | D2 | D3 | G | H |
|---|---|---|---|---|---|---|---|---|---|
| 328310 | 10mm | 349mm | 235mm | 152mm | 21mm | 10mm | 8mm | 11mm | 21mm |
| 328313 | 13mm | 524mm | 343mm | 229mm | 25mm | 13mm | 9mm | 19mm | 35mm |
| 328316 | 16mm | 550mm | 361mm | 229mm | 27mm | 16mm | 13mm | 22mm | 51mm |
| 328320 | 20mm | 550mm | 387mm | 229mm | 34mm | 20mm | 16mm | 22mm | 48mm |
| 328324 | 24mm | 822mm | 556mm | 356mm | 42mm | 24mm | 22mm | 32mm | 65mm |
| 328333 | 33mm | 872mm | 604mm | 381mm | 51mm | 33mm | 24mm | 38mm | 76mm |
| 328338 | 38mm | 949mm | 670mm | 407mm | 57mm | 38mm | 33mm | 47mm | 90mm |
| 328350 | 50mm | 977mm | 743mm | 407mm | 76mm | 48mm | 42mm | 51mm | 121mm |
Questions about this equipment? Send us a message and we’ll check it against the job.
