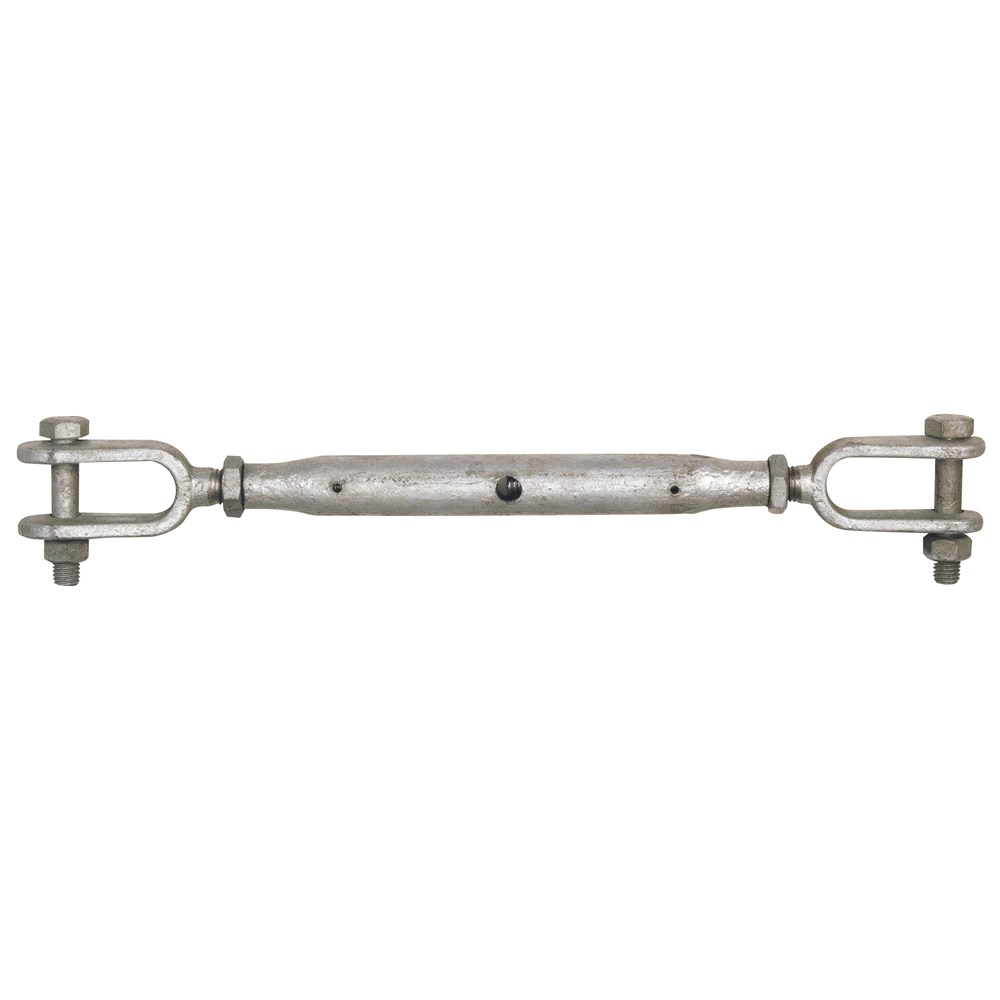

Beaver Jaw and Jaw Rigging Screws with Locknuts 20mm
328320per Each
$46.41 inc GSTTrade $41.77, save $4.64Trade accounts save 10%. Apply with your ABN
| G | 22mm |
| H | 48mm |
| L | 229mm |
| D1 | 34mm |
| D2 | 20mm |
| D3 | 16mm |
| WLL | 1.25t |
| Finish | Hot Dipped Galvanised |
| Weight | 2.2kg |
| e (Open) | 550mm |
| Size (mm) | 20mm |
| e (Closed) | 387mm |
| Thread Size | 20mm |
About this product
The Beaver Jaw and Jaw Rigging Screws with Locknuts 20mm is a straight line tensioner for wire rope and chain assemblies, rated to a 1.25t working load limit. The 20mm thread size sits in the middle of the range, giving you a decent step up in capacity without the bulk of the larger sizes. Body length is 229mm, with 387mm between jaw centres closed and 550mm fully open, so there is plenty of take up for straining a long run.
Both ends are jaw fittings, which suits shackle free connection straight to fabricated lugs or eyes. Made from Grade L high tensile material, quenched and tempered, with a hot dipped galvanised finish for outdoor and exposed work. Jaw opening is 22mm and pin diameter 16mm. It weighs 2.2kg. The locknuts hold your adjustment once the tension is set.
Common questions
- what is the WLL of a 20mm jaw and jaw rigging screw
- This 20mm Beaver jaw and jaw rigging screw has a working load limit of 1.25t.
- how much adjustment does a 20mm rigging screw have
- Centre to centre it measures 387mm closed and 550mm fully open, giving you 163mm of take up for tensioning.
- are beaver rigging screws ok for outdoor use
- Yes. They are made from Grade L high tensile material, quenched and tempered, with a hot dipped galvanised finish suited to outdoor use.
Full specifications
| Product Code | Size (mm) | WLL | Finish | Weight |
|---|---|---|---|---|
| 328310 | 10mm | 0.3t | Hot Dipped Galvanised | 0.44kg |
| 328313 | 13mm | 0.5t | Hot Dipped Galvanised | 0.85kg |
| 328316 | 16mm | 0.75t | Hot Dipped Galvanised | 1.4kg |
| 328320 | 20mm | 1.25t | Hot Dipped Galvanised | 2.2kg |
| 328324 | 24mm | 2.5t | Hot Dipped Galvanised | 4.5kg |
| 328333 | 33mm | 5t | Hot Dipped Galvanised | 6.4kg |
| 328338 | 38mm | 6t | Hot Dipped Galvanised | 12.6kg |
| 328350 | 50mm | 10t | Hot Dipped Galvanised | 24kg |
| Product Code | Size (mm) | e (Open) | e (Closed) | L | D1 | D2 | D3 | G | H |
|---|---|---|---|---|---|---|---|---|---|
| 328310 | 10mm | 349mm | 235mm | 152mm | 21mm | 10mm | 8mm | 11mm | 21mm |
| 328313 | 13mm | 524mm | 343mm | 229mm | 25mm | 13mm | 9mm | 19mm | 35mm |
| 328316 | 16mm | 550mm | 361mm | 229mm | 27mm | 16mm | 13mm | 22mm | 51mm |
| 328320 | 20mm | 550mm | 387mm | 229mm | 34mm | 20mm | 16mm | 22mm | 48mm |
| 328324 | 24mm | 822mm | 556mm | 356mm | 42mm | 24mm | 22mm | 32mm | 65mm |
| 328333 | 33mm | 872mm | 604mm | 381mm | 51mm | 33mm | 24mm | 38mm | 76mm |
| 328338 | 38mm | 949mm | 670mm | 407mm | 57mm | 38mm | 33mm | 47mm | 90mm |
| 328350 | 50mm | 977mm | 743mm | 407mm | 76mm | 48mm | 42mm | 51mm | 121mm |
Questions about this equipment? Send us a message and we’ll check it against the job.
