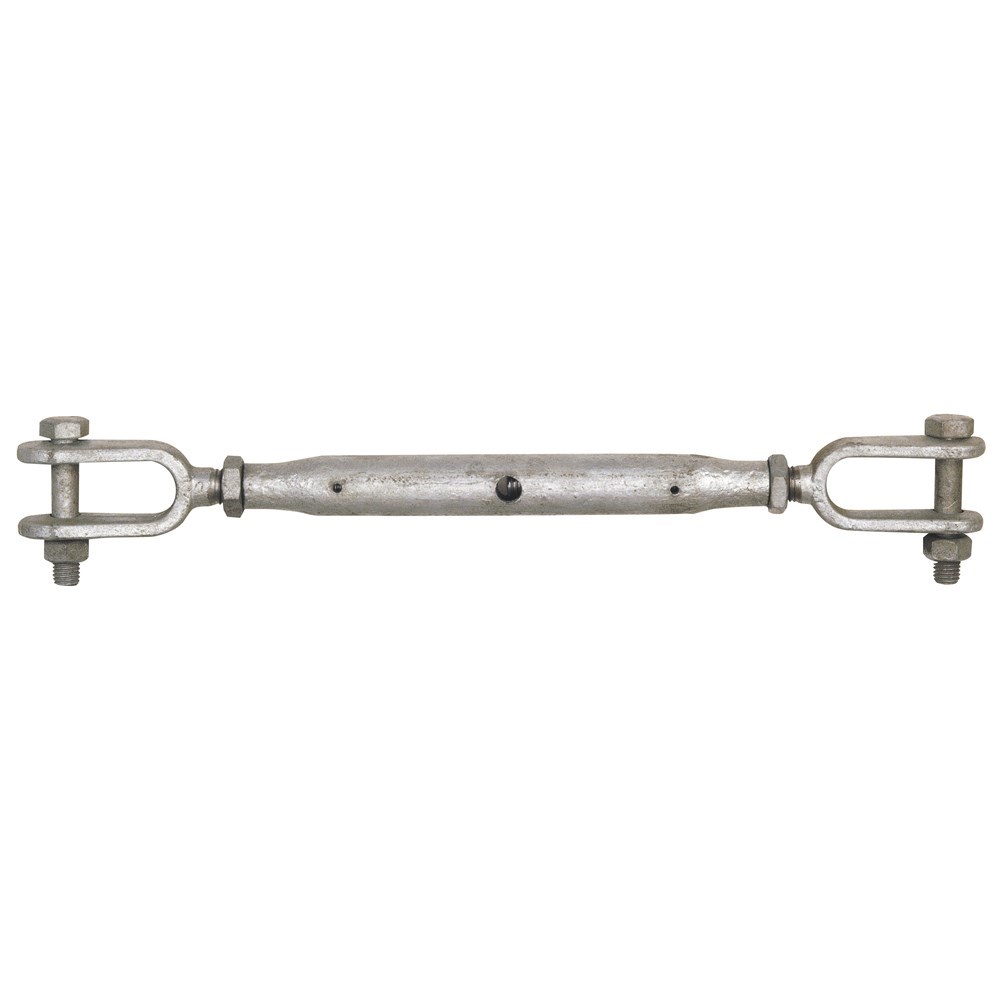

Beaver Jaw and Jaw Rigging Screws with Locknuts 16mm
328316per Each
$40.80 inc GSTTrade $36.72, save $4.08Trade accounts save 10%. Apply with your ABN
| G | 22mm |
| H | 51mm |
| L | 229mm |
| D1 | 27mm |
| D2 | 16mm |
| D3 | 13mm |
| WLL | 0.75t |
| Finish | Hot Dipped Galvanised |
| Weight | 1.4kg |
| e (Open) | 550mm |
| Size (mm) | 16mm |
| e (Closed) | 361mm |
| Thread Size | 16mm |
About this product
The Beaver Jaw and Jaw Rigging Screws with Locknuts 16mm is a turnbuckle for straight, in-line tensioning of wire rope and chain assemblies. This 16mm thread size carries a working load limit of 0.75t, or 750kg, and takes up 189mm of adjustment as it moves between 361mm closed and 550mm open at the eyes. Overall body length is 229mm, with a 22mm jaw opening and a 13mm pin.
Both ends are jaw fittings, so it connects straight to shackles, plate or chain without needing a separate link. It is made from Grade L high tensile material, quenched and tempered, with a hot dipped galvanised finish that holds up outdoors and on exposed structures. Locknuts hold the setting once tension is dialled in. At 1.4kg it is easy enough to handle up a ladder or on a tower.
Common questions
- what is the WLL of a 16mm jaw and jaw rigging screw
- This 16mm size has a working load limit of 0.75t, which is 750kg.
- how much adjustment does a 16mm rigging screw have
- It measures 361mm closed and 550mm open between the eyes, giving 189mm of take-up. Body length is 229mm.
- can rigging screws be used outside
- Yes. This one has a hot dipped galvanised finish over quenched and tempered Grade L high tensile material, which suits outdoor use.
Full specifications
| Product Code | Size (mm) | WLL | Finish | Weight |
|---|---|---|---|---|
| 328310 | 10mm | 0.3t | Hot Dipped Galvanised | 0.44kg |
| 328313 | 13mm | 0.5t | Hot Dipped Galvanised | 0.85kg |
| 328316 | 16mm | 0.75t | Hot Dipped Galvanised | 1.4kg |
| 328320 | 20mm | 1.25t | Hot Dipped Galvanised | 2.2kg |
| 328324 | 24mm | 2.5t | Hot Dipped Galvanised | 4.5kg |
| 328333 | 33mm | 5t | Hot Dipped Galvanised | 6.4kg |
| 328338 | 38mm | 6t | Hot Dipped Galvanised | 12.6kg |
| 328350 | 50mm | 10t | Hot Dipped Galvanised | 24kg |
| Product Code | Size (mm) | e (Open) | e (Closed) | L | D1 | D2 | D3 | G | H |
|---|---|---|---|---|---|---|---|---|---|
| 328310 | 10mm | 349mm | 235mm | 152mm | 21mm | 10mm | 8mm | 11mm | 21mm |
| 328313 | 13mm | 524mm | 343mm | 229mm | 25mm | 13mm | 9mm | 19mm | 35mm |
| 328316 | 16mm | 550mm | 361mm | 229mm | 27mm | 16mm | 13mm | 22mm | 51mm |
| 328320 | 20mm | 550mm | 387mm | 229mm | 34mm | 20mm | 16mm | 22mm | 48mm |
| 328324 | 24mm | 822mm | 556mm | 356mm | 42mm | 24mm | 22mm | 32mm | 65mm |
| 328333 | 33mm | 872mm | 604mm | 381mm | 51mm | 33mm | 24mm | 38mm | 76mm |
| 328338 | 38mm | 949mm | 670mm | 407mm | 57mm | 38mm | 33mm | 47mm | 90mm |
| 328350 | 50mm | 977mm | 743mm | 407mm | 76mm | 48mm | 42mm | 51mm | 121mm |
