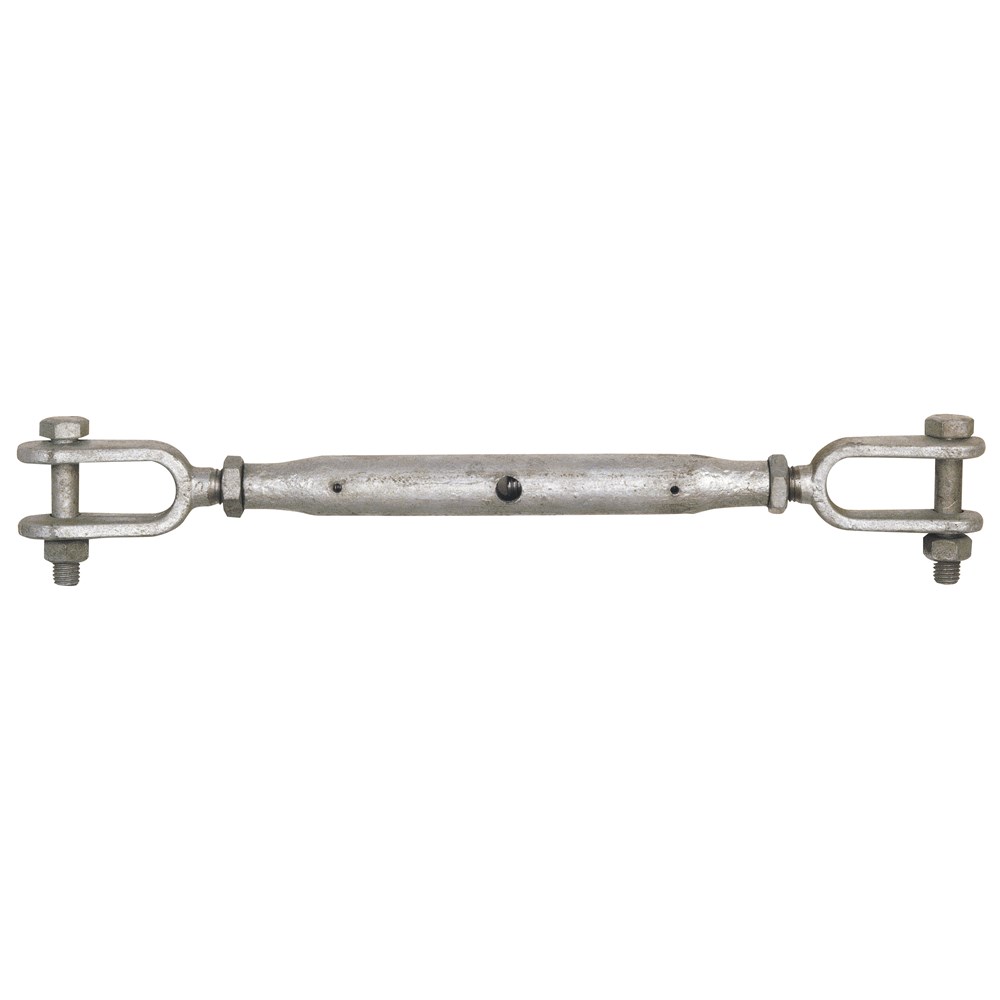

Beaver Jaw and Jaw Rigging Screws with Locknuts 13mm
328313per Each
$20.90 inc GSTTrade $18.81, save $2.09Trade accounts save 10%. Apply with your ABN
| G | 19mm |
| H | 35mm |
| L | 229mm |
| D1 | 25mm |
| D2 | 13mm |
| D3 | 9mm |
| WLL | 0.5t |
| Finish | Hot Dipped Galvanised |
| Weight | 0.85kg |
| e (Open) | 524mm |
| Size (mm) | 13mm |
| e (Closed) | 343mm |
| Thread Size | 13mm |
About this product
The Beaver Jaw and Jaw Rigging Screws with Locknuts 13mm is a rated turnbuckle for straight line tensioning in wire rope and chain assemblies. Both ends are jaw fittings, so it pins straight into a shackle, link or fitting without needing a separate connector. The 13mm thread size carries a working load limit of 0.5t, which puts it at the lighter end of the range for stays, guys and straining jobs rather than heavy lifts.
Adjustment runs from 343mm closed to 524mm open, giving plenty of take up once the assembly is rigged. Body length is 229mm, jaw pin diameter 13mm, and the unit weighs 0.85kg. Made from Grade L high tensile material, quenched and tempered, with a hot dipped galvanised finish that handles outdoor and exposed work. The locknuts hold your setting once tension is on.
Common questions
- what is the WLL of a 13mm jaw jaw rigging screw
- This 13mm Beaver jaw and jaw rigging screw has a working load limit of 0.5t, or 500kg.
- how much adjustment does a beaver 13mm rigging screw have
- It measures 343mm closed and 524mm open, so you get a good range of take up for tensioning a wire rope or chain assembly.
- can rigging screws be used outdoors
- Yes. This one has a hot dipped galvanised finish over quenched and tempered Grade L high tensile material, which suits outdoor use.
Full specifications
| Product Code | Size (mm) | WLL | Finish | Weight |
|---|---|---|---|---|
| 328310 | 10mm | 0.3t | Hot Dipped Galvanised | 0.44kg |
| 328313 | 13mm | 0.5t | Hot Dipped Galvanised | 0.85kg |
| 328316 | 16mm | 0.75t | Hot Dipped Galvanised | 1.4kg |
| 328320 | 20mm | 1.25t | Hot Dipped Galvanised | 2.2kg |
| 328324 | 24mm | 2.5t | Hot Dipped Galvanised | 4.5kg |
| 328333 | 33mm | 5t | Hot Dipped Galvanised | 6.4kg |
| 328338 | 38mm | 6t | Hot Dipped Galvanised | 12.6kg |
| 328350 | 50mm | 10t | Hot Dipped Galvanised | 24kg |
| Product Code | Size (mm) | e (Open) | e (Closed) | L | D1 | D2 | D3 | G | H |
|---|---|---|---|---|---|---|---|---|---|
| 328310 | 10mm | 349mm | 235mm | 152mm | 21mm | 10mm | 8mm | 11mm | 21mm |
| 328313 | 13mm | 524mm | 343mm | 229mm | 25mm | 13mm | 9mm | 19mm | 35mm |
| 328316 | 16mm | 550mm | 361mm | 229mm | 27mm | 16mm | 13mm | 22mm | 51mm |
| 328320 | 20mm | 550mm | 387mm | 229mm | 34mm | 20mm | 16mm | 22mm | 48mm |
| 328324 | 24mm | 822mm | 556mm | 356mm | 42mm | 24mm | 22mm | 32mm | 65mm |
| 328333 | 33mm | 872mm | 604mm | 381mm | 51mm | 33mm | 24mm | 38mm | 76mm |
| 328338 | 38mm | 949mm | 670mm | 407mm | 57mm | 38mm | 33mm | 47mm | 90mm |
| 328350 | 50mm | 977mm | 743mm | 407mm | 76mm | 48mm | 42mm | 51mm | 121mm |
Questions about this equipment? Send us a message and we’ll check it against the job.
