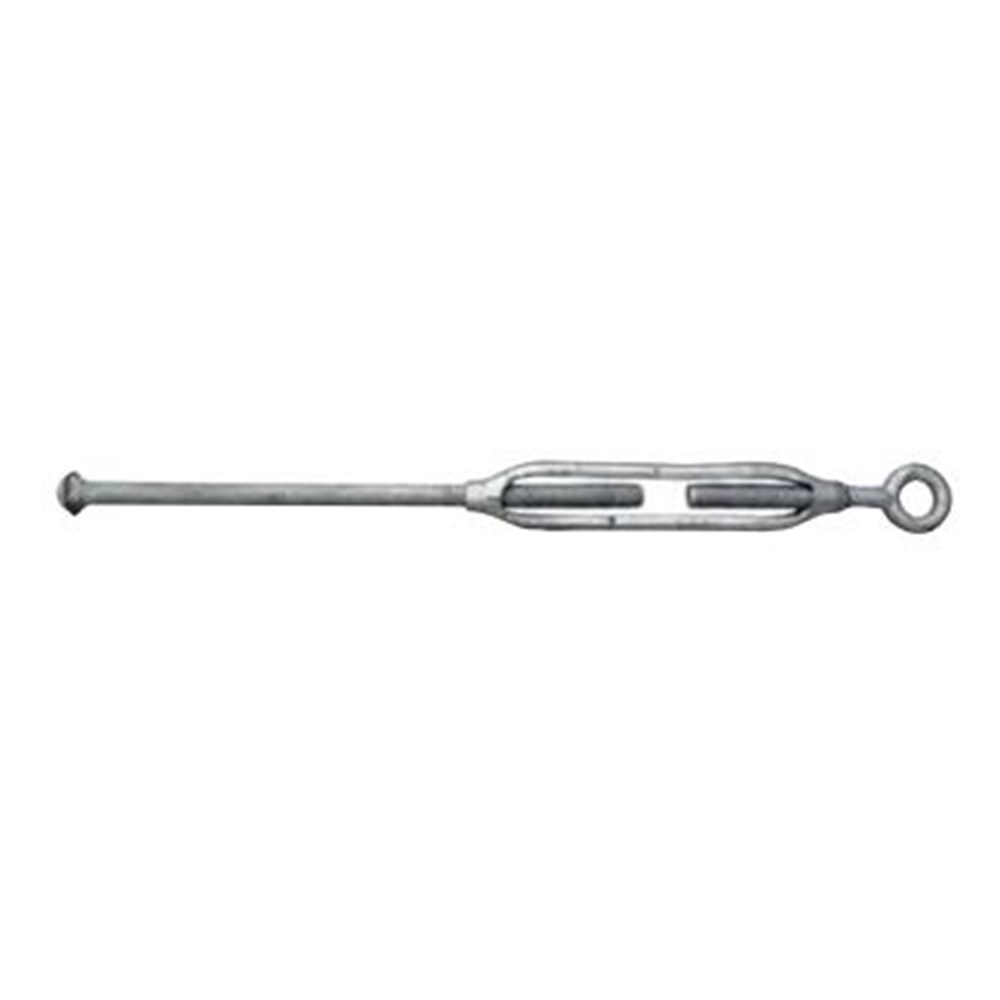

Beaver Forged Stub and Stub Commercial Turnbuckles - Galvanised 25mm
325025per Each
$31.24 inc GSTTrade $28.12, save $3.12Trade accounts save 10%. Apply with your ABN
| L | 350mm |
| L1 | 300mm |
| L2 | 170mm |
| Open | 800mm |
| Closed | 610mm |
| Finish | Hot Dipped Galvanised |
| Weight | 2.56kg |
| Size (mm) | 25mm |
| Thread Size | 25mm |
About this product
The Beaver Forged Stub and Stub Commercial Turnbuckle in galvanised 25mm is a weld-in tensioner for straight, inline pulls. This is the heaviest size in the range at 2.56kg, with a 25mm thread size and a body measuring 350mm through the frame. It closes at 610mm and opens out to 800mm, so you get a solid 190mm of take-up for tuning longer runs where the smaller sizes run short.
Both ends are plain stubs, so you weld them into your own rod, bar or bracket and build the tensioning system to suit the job. The forged steel construction handles heavy inline work, and the hot dipped galvanised finish keeps rust off when it is left outside or exposed on site. Other reference dimensions are 300mm and 170mm. Check the threads run free and keep them clean before you wind it up.
Common questions
- what size thread is the 25mm beaver stub and stub turnbuckle
- It has a 25mm thread size, the largest in the Beaver forged stub and stub commercial range. Overall body length is 350mm.
- how much adjustment do you get on a 25mm turnbuckle
- It measures 610mm closed and 800mm open, giving you 190mm of adjustment for setting tension on an inline run.
- can you weld a stub and stub turnbuckle
- Yes, the stub ends are made to be welded into your own rod or bracket so you can build a tensioning system to suit the application.
Full specifications
| Product Code | Size (mm) | Finish | Open | Closed | L | L1 | L2 | Weight |
|---|---|---|---|---|---|---|---|---|
| 325010 | 10mm | Hot Dipped Galvanised | 500mm | 320mm | 144mm | 170mm | 80mm | 0.26kg |
| 325013 | 13mm | Hot Dipped Galvanised | 560mm | 395mm | 190mm | 200mm | 100mm | 0.5kg |
| 325016 | 16mm | Hot Dipped Galvanised | 682mm | 500mm | 250mm | 240mm | 115mm | 1kg |
| 325020 | 20mm | Hot Dipped Galvanised | 759mm | 555mm | 295mm | 260mm | 130mm | 1.68kg |
| 325023 | 22mm | Hot Dipped Galvanised | 800mm | 585mm | 320mm | 270mm | 140mm | 2.46kg |
| 325025 | 25mm | Hot Dipped Galvanised | 800mm | 610mm | 350mm | 300mm | 170mm | 2.56kg |
