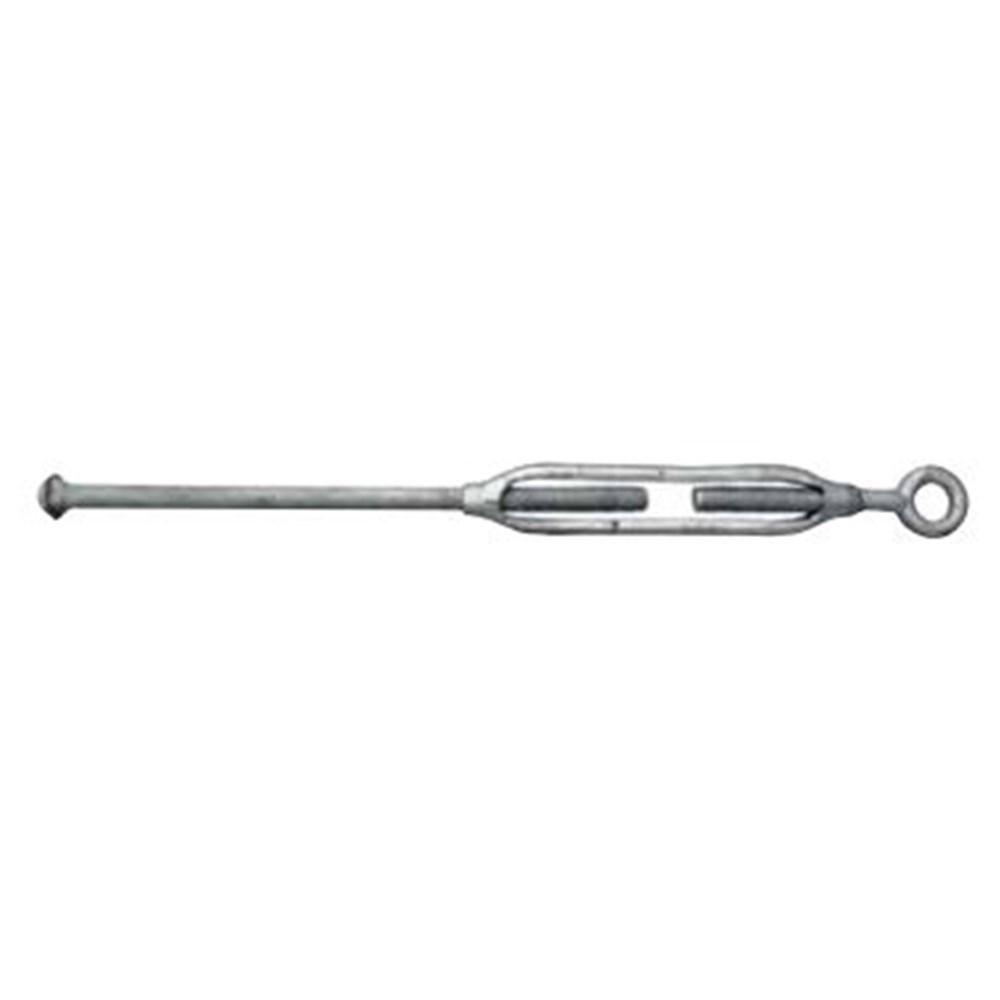

Beaver Forged Stub and Stub Commercial Turnbuckles - Galvanised 20mm
325020per Each
$19.99 inc GSTTrade $17.99, save $2.00Trade accounts save 10%. Apply with your ABN
| L | 295mm |
| L1 | 260mm |
| L2 | 130mm |
| Open | 759mm |
| Closed | 555mm |
| Finish | Hot Dipped Galvanised |
| Weight | 1.68kg |
| Size (mm) | 20mm |
| Thread Size | 20mm |
About this product
The Beaver Forged Stub and Stub Commercial Turnbuckle in galvanised 20mm is a weldable tensioner for straight or inline pulls, with plain stub ends you finish to suit the job. At 20mm thread it sits in the upper end of the range, measuring 295mm body length with a 260mm L1 and 130mm L2, and weighing 1.68kg.
Take-up runs from 555mm closed out to 759mm open, so there is plenty of adjustment once the ends are welded into a stay, brace or tie rod. The body is forged steel, which keeps the section solid where the thread does the work. A hot dipped galvanised finish handles rust and corrosion on outdoor structures and exposed site work. Weld your own eyes, hooks or flat plate on and you have a tensioning assembly built to the geometry you need.
Common questions
- what size thread is the 20mm beaver stub turnbuckle
- It runs a 20mm thread. The body measures 295mm long and the unit weighs 1.68kg.
- how much adjustment do you get on a 20mm stub and stub turnbuckle
- It goes from 555mm closed to 759mm open, giving you a solid range of take-up once the stub ends are welded in.
- are stub and stub turnbuckles suitable for outdoor use
- Yes. The forged steel body has a hot dipped galvanised finish for protection against rust and corrosion in exposed conditions.
Full specifications
| Product Code | Size (mm) | Finish | Open | Closed | L | L1 | L2 | Weight |
|---|---|---|---|---|---|---|---|---|
| 325010 | 10mm | Hot Dipped Galvanised | 500mm | 320mm | 144mm | 170mm | 80mm | 0.26kg |
| 325013 | 13mm | Hot Dipped Galvanised | 560mm | 395mm | 190mm | 200mm | 100mm | 0.5kg |
| 325016 | 16mm | Hot Dipped Galvanised | 682mm | 500mm | 250mm | 240mm | 115mm | 1kg |
| 325020 | 20mm | Hot Dipped Galvanised | 759mm | 555mm | 295mm | 260mm | 130mm | 1.68kg |
| 325023 | 22mm | Hot Dipped Galvanised | 800mm | 585mm | 320mm | 270mm | 140mm | 2.46kg |
| 325025 | 25mm | Hot Dipped Galvanised | 800mm | 610mm | 350mm | 300mm | 170mm | 2.56kg |
