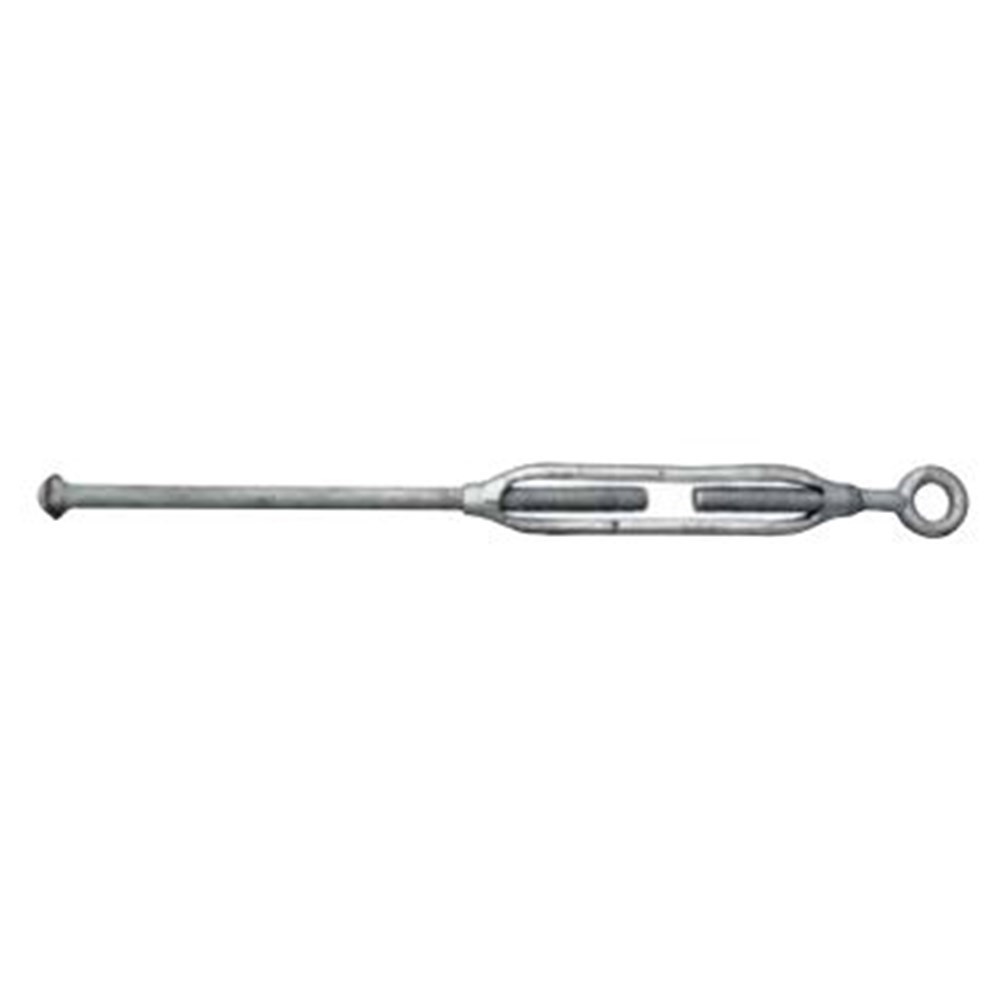

Beaver Forged Stub and Stub Commercial Turnbuckles - Galvanised 12mm
325013per Each
$8.24 inc GSTTrade $7.42, save $0.82Trade accounts save 10%. Apply with your ABN
| L | 190mm |
| L1 | 200mm |
| L2 | 100mm |
| Open | 560mm |
| Closed | 395mm |
| Finish | Hot Dipped Galvanised |
| Weight | 0.5kg |
| Size (mm) | 13mm |
| Thread Size | 12mm |
About this product
The Beaver Forged Stub and Stub Commercial Turnbuckle in 12mm thread is a weld-on tensioner for straight or inline pulls, with plain stub ends you finish to suit the job. This size takes a 13mm body and adjusts from 395mm closed out to 560mm open, giving you a decent take-up range on stays, guy wires and fabricated tensioning systems.
Both ends are stubs, so a boilermaker can weld on eyes, plates or whatever the design calls for rather than being stuck with a fixed fitting. The body is forged steel and carries a hot dipped galvanised finish to slow down rust in outdoor and coastal work. At 0.5kg it is easy to handle, with L at 190mm, L1 at 200mm and L2 at 100mm for laying out your assembly before anything gets tacked.
Common questions
- what size is the 12mm beaver stub and stub turnbuckle when open
- It opens to 560mm and closes to 395mm, so you get a useful adjustment range on the 12mm thread size.
- can you weld beaver stub and stub turnbuckles
- Yes, that is the point of the stub ends. They come plain so you can weld on your own eyes or fittings and build the tensioning system you need.
- are beaver forged turnbuckles galvanised
- This one has a hot dipped galvanised finish over forged steel, which helps it stand up to rust and corrosion outdoors.
Full specifications
| Product Code | Size (mm) | Finish | Open | Closed | L | L1 | L2 | Weight |
|---|---|---|---|---|---|---|---|---|
| 325010 | 10mm | Hot Dipped Galvanised | 500mm | 320mm | 144mm | 170mm | 80mm | 0.26kg |
| 325013 | 13mm | Hot Dipped Galvanised | 560mm | 395mm | 190mm | 200mm | 100mm | 0.5kg |
| 325016 | 16mm | Hot Dipped Galvanised | 682mm | 500mm | 250mm | 240mm | 115mm | 1kg |
| 325020 | 20mm | Hot Dipped Galvanised | 759mm | 555mm | 295mm | 260mm | 130mm | 1.68kg |
| 325023 | 22mm | Hot Dipped Galvanised | 800mm | 585mm | 320mm | 270mm | 140mm | 2.46kg |
| 325025 | 25mm | Hot Dipped Galvanised | 800mm | 610mm | 350mm | 300mm | 170mm | 2.56kg |
