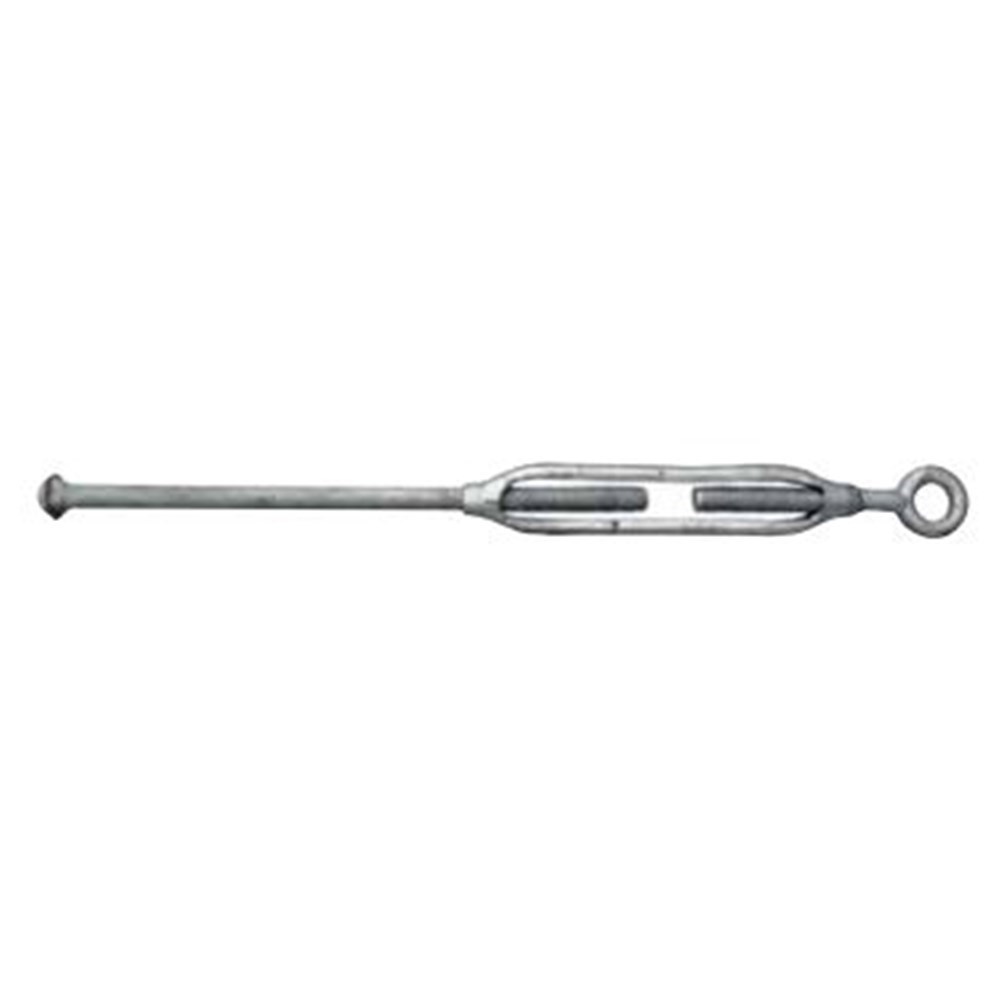

Beaver Forged Stub and Stub Commercial Turnbuckles - Galvanised 10mm
325010per Each
$4.45 inc GSTTrade $4.01, save $0.44Trade accounts save 10%. Apply with your ABN
| L | 144mm |
| L1 | 170mm |
| L2 | 80mm |
| Open | 500mm |
| Closed | 320mm |
| Finish | Hot Dipped Galvanised |
| Weight | 0.26kg |
| Size (mm) | 10mm |
| Thread Size | 10mm |
About this product
The Beaver Forged Stub and Stub Commercial Turnbuckle in galvanised 10mm is a weld-in tensioner for straight or inline tension work. Both ends are plain stubs, so you weld them to whatever your job calls for, cable fittings, eyes or brackets, and build the tensioning system to suit. At 10mm thread size it is one of the lighter options in the range, weighing 0.26kg, which makes it handy for fencing runs, bracing wires and lighter guy work where a bigger body would be overkill.
Body dimensions are 144mm, with L1 at 170mm and L2 at 80mm, and it moves from 320mm closed out to 500mm open. That gives you a decent take-up for fine adjustment on site. Forged steel construction handles hard use, and the hot dipped galvanised finish keeps rust off when the fitting lives outdoors.
Common questions
- what is the 10mm Beaver stub and stub turnbuckle used for
- It is made for straight or inline tension applications. The stub ends are welded to your own fittings, so you can build a tensioning system to suit the job.
- how far does a 10mm stub and stub turnbuckle adjust
- It measures 320mm closed and extends to 500mm open, giving you plenty of take-up for fine tension adjustment.
- is a galvanised turnbuckle ok for outdoor use
- Yes, this one has a hot dipped galvanised finish to protect against rust and corrosion, so it suits fittings left out in the weather.
Full specifications
| Product Code | Size (mm) | Finish | Open | Closed | L | L1 | L2 | Weight |
|---|---|---|---|---|---|---|---|---|
| 325010 | 10mm | Hot Dipped Galvanised | 500mm | 320mm | 144mm | 170mm | 80mm | 0.26kg |
| 325013 | 13mm | Hot Dipped Galvanised | 560mm | 395mm | 190mm | 200mm | 100mm | 0.5kg |
| 325016 | 16mm | Hot Dipped Galvanised | 682mm | 500mm | 250mm | 240mm | 115mm | 1kg |
| 325020 | 20mm | Hot Dipped Galvanised | 759mm | 555mm | 295mm | 260mm | 130mm | 1.68kg |
| 325023 | 22mm | Hot Dipped Galvanised | 800mm | 585mm | 320mm | 270mm | 140mm | 2.46kg |
| 325025 | 25mm | Hot Dipped Galvanised | 800mm | 610mm | 350mm | 300mm | 170mm | 2.56kg |
