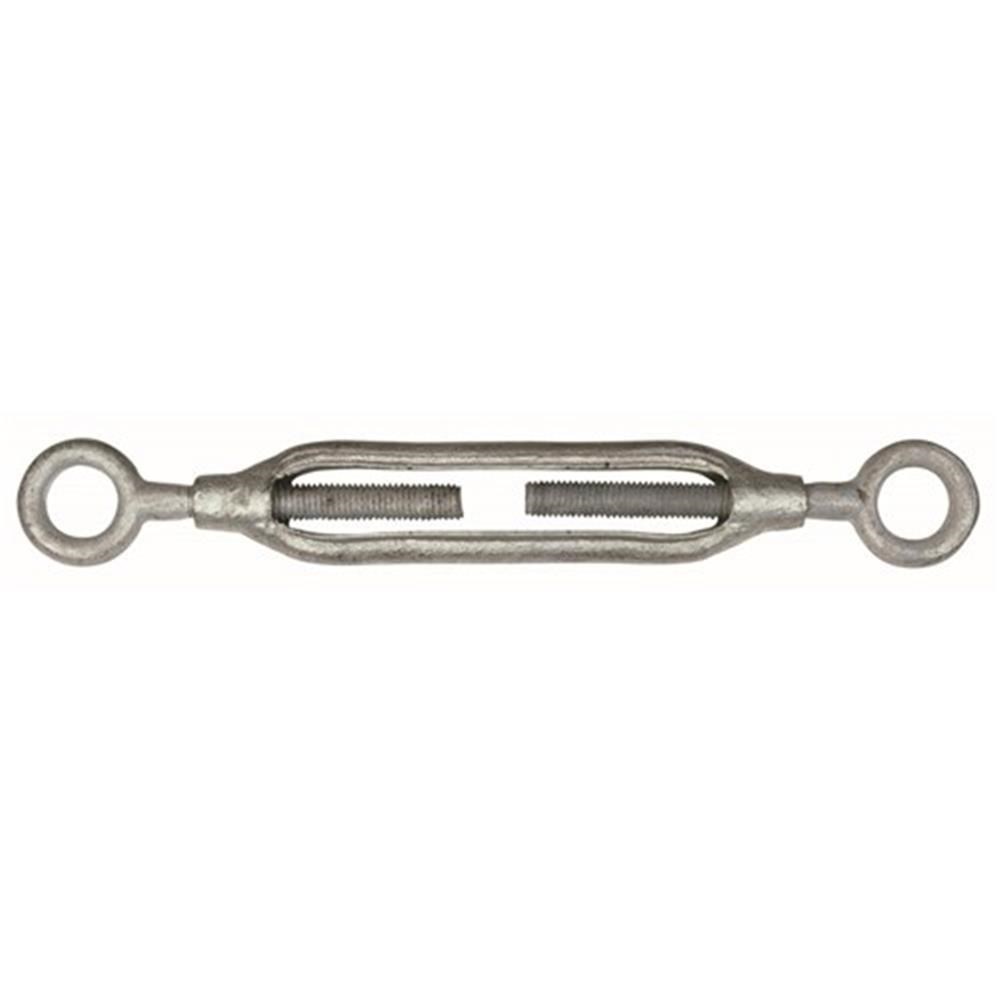

BEAVER EYE AND EYE COMMERCIAL TURNBUCKLES - GALVANISED 25mm
324225per Each
$38.67 inc GSTTrade $34.80, save $3.87Trade accounts save 10%. Apply with your ABN
| A mm | 345 |
| B mm | 32.5 |
| C mm | 67 |
| Size | 25mm |
| Finish | Galvanised |
| Size mm | 25 |
| Pack Qty | 8 |
| e Open mm | 720 |
| e Closed mm | 490 |
| Weight per 100 (kg) | 256 |
About this product
The Beaver Eye and Eye Commercial Turnbuckle in galvanised 25mm is a tensioning fitting for straight, inline pulls on wire rope and chain assemblies. This is the 25mm size in the range, the heaviest of the group, with a 345mm body, 32.5mm at B and 67mm at C. Length runs from 490mm closed out to 720mm open, giving you 230mm of adjustment to pull a run tight.
Forged steel through the body and eyes, with a hot dipped galvanised finish to hold off rust and corrosion on outdoor and exposed work. An electro plated finish is also made in this pattern if the job calls for it. At roughly 2.56kg each, the 25mm is a two hands item on the tools, so plan your access before you start winding it up.
Common questions
- how much adjustment does a 25mm turnbuckle have
- It measures 490mm closed and 720mm open, so you get 230mm of take-up to tension the assembly.
- what is the beaver 25mm turnbuckle made from
- Forged steel with a hot dipped galvanised finish for protection against rust and corrosion.
- can you use eye and eye turnbuckles with chain
- Yes. Eye and eye commercial turnbuckles are made for straight or inline tension and are commonly run with wire rope and chain assemblies.
Full specifications
| Product Code | Size mm | e Open mm | e Closed mm | A mm | B mm | C mm | Finish | Pack Qty | Weight per 100 (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 324206 | 6 | 200 | 132 | 98 | 10 | 19.5 | Galvanised | 250 | 8 |
| 324208 | 8 | 250 | 166 | 123 | 11 | 22 | Galvanised | 150 | 14 |
| 324210 | 10 | 295 | 188 | 144 | 12 | 25 | Galvanised | 100 | 26 |
| 324213 | 13 | 420 | 255 | 297 | 17 | 33.5 | Galvanised | 40 | 50 |
| 324216 | 16 | 525 | 340 | 250 | 24 | 45.5 | Galvanised | 25 | 100 |
| 324220 | 20 | 605 | 395 | 285 | 28 | 52 | Galvanised | 15 | 168 |
| 324225 | 25 | 720 | 490 | 345 | 32.5 | 67 | Galvanised | 8 | 256 |
