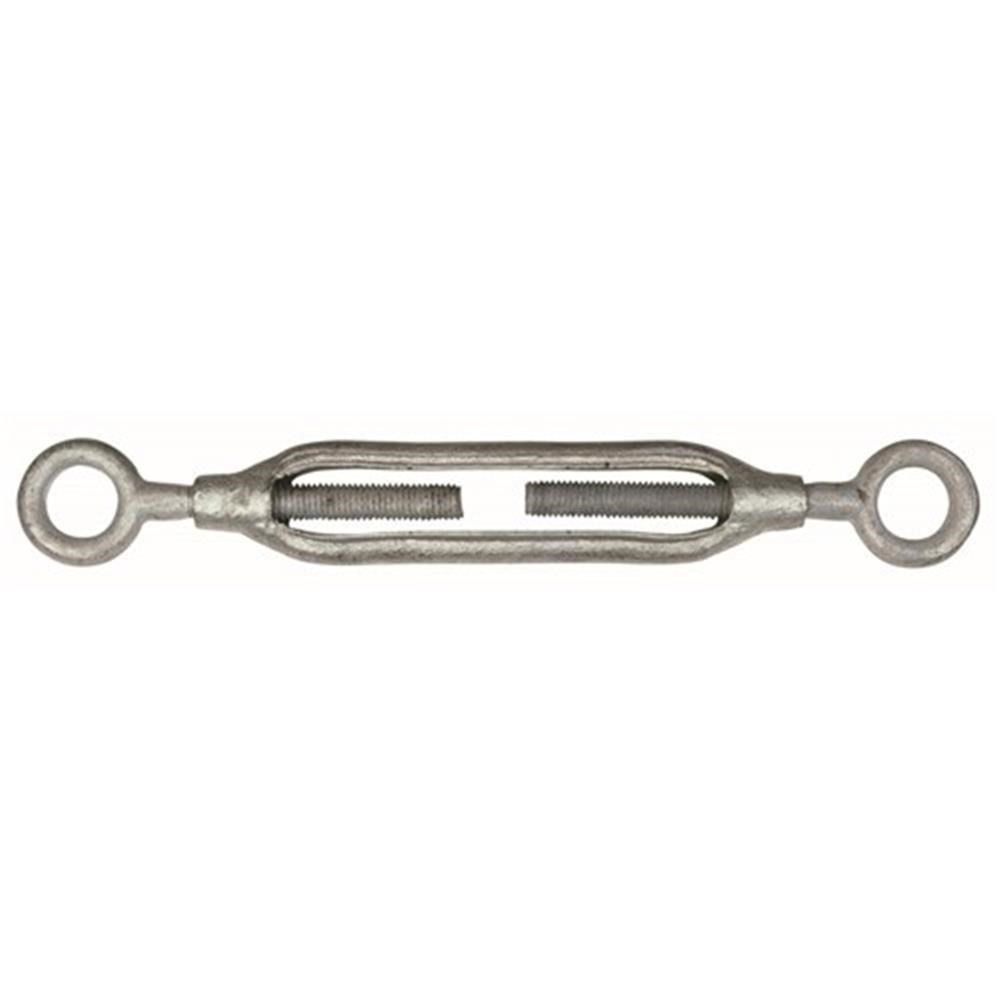

BEAVER EYE AND EYE COMMERCIAL TURNBUCKLES - GALVANISED 20mm
324220per Each
$17.44 inc GSTTrade $15.70, save $1.74Trade accounts save 10%. Apply with your ABN
| A mm | 285 |
| B mm | 28 |
| C mm | 52 |
| Size | 20mm |
| Finish | Galvanised |
| Size mm | 20 |
| Pack Qty | 15 |
| e Open mm | 605 |
| e Closed mm | 395 |
| Weight per 100 (kg) | 168 |
About this product
The Beaver Eye and Eye Commercial Turnbuckle in galvanised 20mm is a forged steel tensioner for straight, inline pulls on wire rope and chain assemblies. This is the 20mm size, with a 285mm body length, 28mm eye material and a 52mm eye opening, so it suits the heavier end of commercial tensioning rather than light stay work.
Adjustment runs from 605mm fully open down to 395mm closed, giving you 210mm of take-up once the assembly is rigged. Both ends are eyes, so it pins straight into shackles, thimbled rope ends or chain without needing a jaw. The hot dipped galvanised finish handles outdoor and coastal exposure better than bare steel, and an electro plated finish is also made in this pattern if that suits the job better.
Common questions
- how much adjustment does a 20mm eye and eye turnbuckle have
- It measures 605mm fully open and 395mm closed, so you get 210mm of take-up between the two limits.
- what is the beaver commercial turnbuckle made of
- Forged steel with a hot dipped galvanised finish for added protection against rust and corrosion.
- what is an eye and eye turnbuckle used for
- Straight or inline tension applications, generally with wire rope and chain assemblies. The eyes pin into shackles or thimbled ends at both ends.
Full specifications
| Product Code | Size mm | e Open mm | e Closed mm | A mm | B mm | C mm | Finish | Pack Qty | Weight per 100 (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 324206 | 6 | 200 | 132 | 98 | 10 | 19.5 | Galvanised | 250 | 8 |
| 324208 | 8 | 250 | 166 | 123 | 11 | 22 | Galvanised | 150 | 14 |
| 324210 | 10 | 295 | 188 | 144 | 12 | 25 | Galvanised | 100 | 26 |
| 324213 | 13 | 420 | 255 | 297 | 17 | 33.5 | Galvanised | 40 | 50 |
| 324216 | 16 | 525 | 340 | 250 | 24 | 45.5 | Galvanised | 25 | 100 |
| 324220 | 20 | 605 | 395 | 285 | 28 | 52 | Galvanised | 15 | 168 |
| 324225 | 25 | 720 | 490 | 345 | 32.5 | 67 | Galvanised | 8 | 256 |
