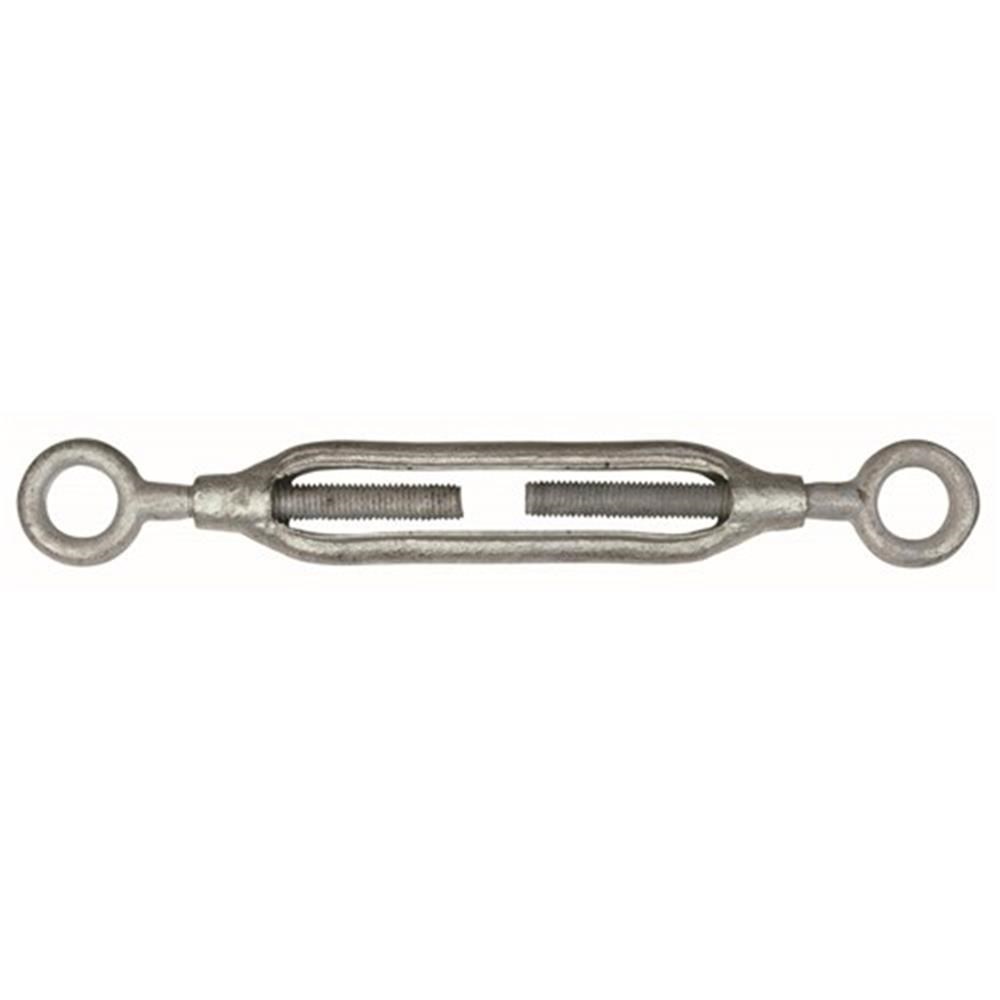

BEAVER EYE AND EYE COMMERCIAL TURNBUCKLES - GALVANISED 16mm
324216per Each
$9.52 inc GSTTrade $8.57, save $0.95Trade accounts save 10%. Apply with your ABN
| A mm | 250 |
| B mm | 24 |
| C mm | 45.5 |
| Size | 16mm |
| Finish | Galvanised |
| Size mm | 16 |
| Pack Qty | 25 |
| e Open mm | 525 |
| e Closed mm | 340 |
| Weight per 100 (kg) | 100 |
About this product
The Beaver Eye and Eye Commercial Turnbuckles - Galvanised 16mm is a forged steel tensioner for straight, inline pulls on wire rope and chain assemblies. At 16mm body size it sits in the upper half of the range, with a 250mm thread length and a 45.5mm eye dimension for larger shackles, thimbles and chain fittings.
Adjustment runs from 340mm closed out to 525mm open, so you get plenty of travel to pull up a stay or guy without swapping hardware. The eye width measures 24mm. The hot dipped galvanised finish holds up against rust and corrosion on outdoor and exposed work, and the same turnbuckle is also made in an electro plated finish if you want a lighter coating. Check the threads run free and the eyes are not opened up before each use.
Common questions
- what size is the 16mm beaver eye and eye turnbuckle when closed
- It measures 340mm closed and extends to 525mm fully open, giving you a good range of take-up on the one fitting.
- what is a beaver eye and eye turnbuckle used for
- It is used for straight or inline tension applications, most often with wire rope and chain assemblies.
- is the 16mm beaver turnbuckle galvanised or plated
- This one is hot dipped galvanised for added protection against rust and corrosion. The same turnbuckle is also available in an electro plated finish.
Full specifications
| Product Code | Size mm | e Open mm | e Closed mm | A mm | B mm | C mm | Finish | Pack Qty | Weight per 100 (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 324206 | 6 | 200 | 132 | 98 | 10 | 19.5 | Galvanised | 250 | 8 |
| 324208 | 8 | 250 | 166 | 123 | 11 | 22 | Galvanised | 150 | 14 |
| 324210 | 10 | 295 | 188 | 144 | 12 | 25 | Galvanised | 100 | 26 |
| 324213 | 13 | 420 | 255 | 297 | 17 | 33.5 | Galvanised | 40 | 50 |
| 324216 | 16 | 525 | 340 | 250 | 24 | 45.5 | Galvanised | 25 | 100 |
| 324220 | 20 | 605 | 395 | 285 | 28 | 52 | Galvanised | 15 | 168 |
| 324225 | 25 | 720 | 490 | 345 | 32.5 | 67 | Galvanised | 8 | 256 |
