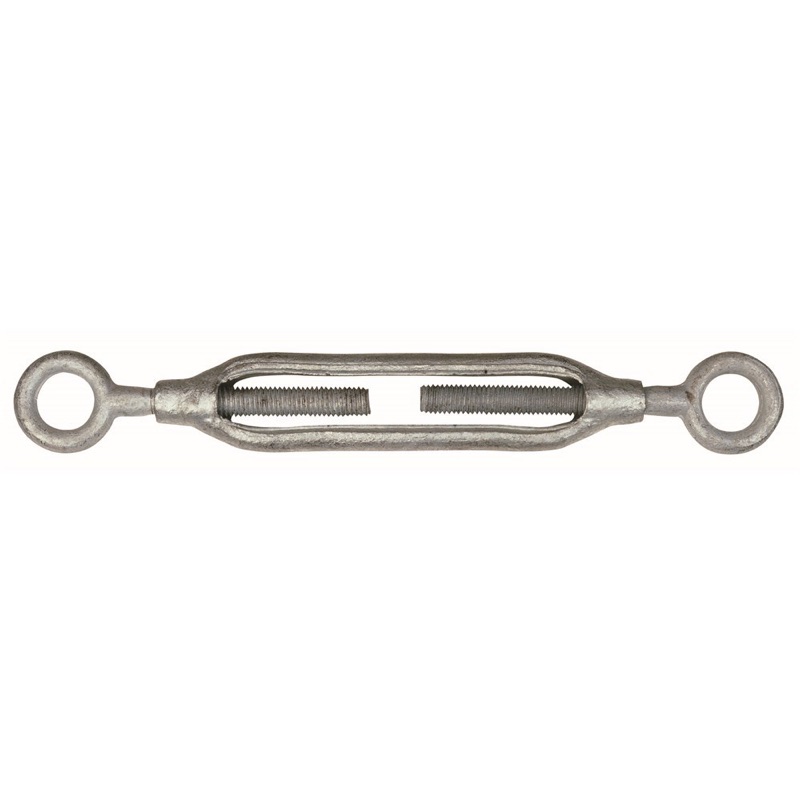

BEAVER EYE AND EYE COMMERCIAL TURNBUCKLES - GALVANISED 13mm
324213per Each
$10.37 inc GSTTrade $9.33, save $1.04Trade accounts save 10%. Apply with your ABN
| A mm | 297 |
| B mm | 17 |
| C mm | 33.5 |
| Size | 13mm |
| Finish | Galvanised |
| Size mm | 13 |
| Pack Qty | 40 |
| e Open mm | 420 |
| e Closed mm | 255 |
| Weight per 100 (kg) | 50 |
About this product
The Beaver Eye and Eye Commercial Turnbuckle in 13mm galvanised is a tensioning fitting for straight, inline pulls on wire rope and chain assemblies. It is the mid to upper end of the range, with a 297mm body and roughly 165mm of adjustment, moving from 255mm closed out to 420mm open. That travel gives you room to take up slack on longer runs without swapping fittings.
Forged steel through the body and eyes, with an eye thickness of 17mm and a 33.5mm eye opening, so it pairs sensibly with 13mm hardware. The hot dipped galvanised finish handles rust and corrosion, which suits outdoor guy wires, fencing and general site tension work. An electro plated version is also made if you want a lighter coating. Wind it out evenly and keep the threads clean so it stays free moving.
Common questions
- what is the adjustment range on a 13mm eye and eye turnbuckle
- It measures 255mm closed and 420mm open, giving about 165mm of take up. The body itself is 297mm long.
- are beaver commercial turnbuckles galvanised or plated
- This one is hot dipped galvanised for added protection against rust and corrosion. Beaver also makes the same turnbuckle in an electro plated finish.
- what is a 13mm eye and eye turnbuckle used for
- Straight or inline tension applications, most often in wire rope and chain assemblies. The 17mm eye thickness and 33.5mm eye opening suit matching 13mm hardware.
Full specifications
| Product Code | Size mm | e Open mm | e Closed mm | A mm | B mm | C mm | Finish | Pack Qty | Weight per 100 (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 324206 | 6 | 200 | 132 | 98 | 10 | 19.5 | Galvanised | 250 | 8 |
| 324208 | 8 | 250 | 166 | 123 | 11 | 22 | Galvanised | 150 | 14 |
| 324210 | 10 | 295 | 188 | 144 | 12 | 25 | Galvanised | 100 | 26 |
| 324213 | 13 | 420 | 255 | 297 | 17 | 33.5 | Galvanised | 40 | 50 |
| 324216 | 16 | 525 | 340 | 250 | 24 | 45.5 | Galvanised | 25 | 100 |
| 324220 | 20 | 605 | 395 | 285 | 28 | 52 | Galvanised | 15 | 168 |
| 324225 | 25 | 720 | 490 | 345 | 32.5 | 67 | Galvanised | 8 | 256 |
