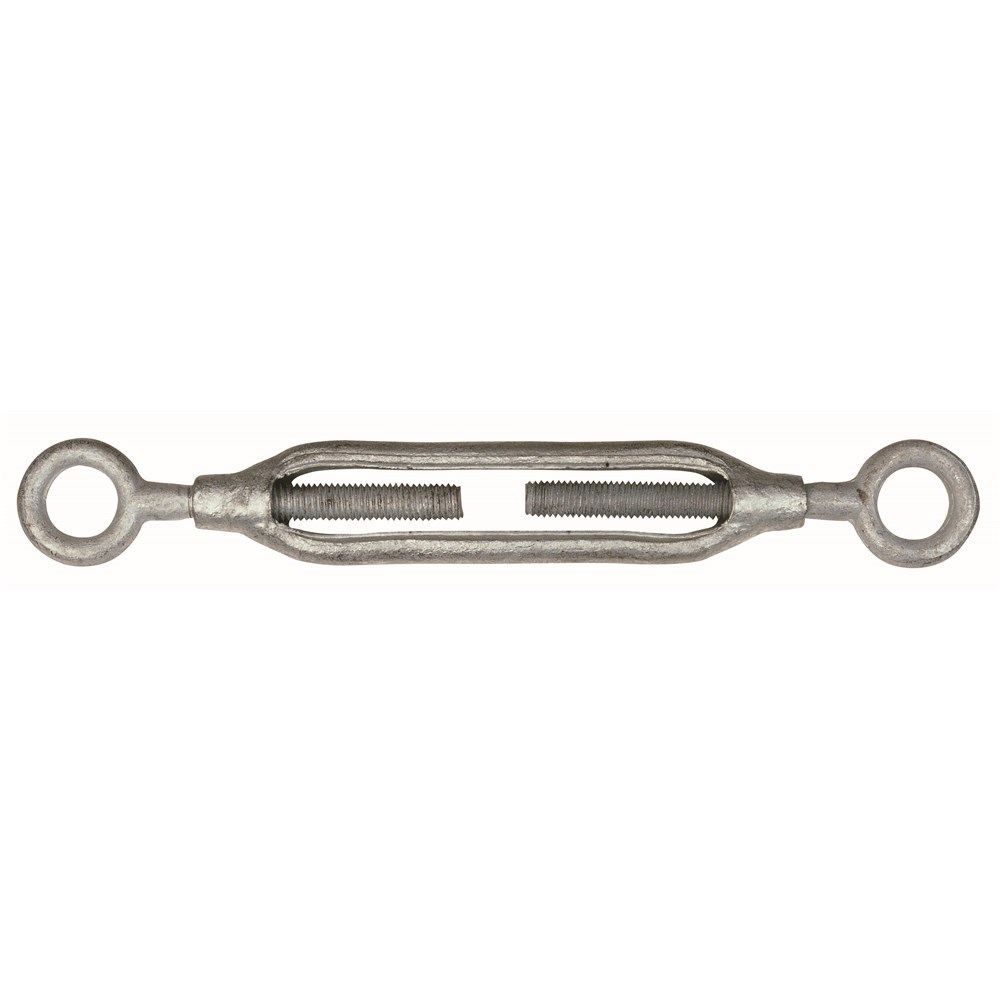

BEAVER EYE AND EYE COMMERCIAL TURNBUCKLES - GALVANISED 8mm
324208per Each
$4.14 inc GSTTrade $3.73, save $0.41Trade accounts save 10%. Apply with your ABN
| A mm | 123 |
| B mm | 11 |
| C mm | 22 |
| Size | 8mm |
| Finish | Galvanised |
| Size mm | 8 |
| Pack Qty | 150 |
| e Open mm | 250 |
| e Closed mm | 166 |
| Weight per 100 (kg) | 14 |
About this product
The Beaver Eye and Eye Commercial Turnbuckle in 8mm is a forged steel tensioner for straight, inline pull on wire rope and chain assemblies. This is the lighter end of the range, suited to guy wires, fence and mesh straining, and bracing jobs where you need fine adjustment without a lot of bulk. Body length sits at 123mm, with an 11mm eye section and 22mm across the eye.
Adjustment runs from 250mm fully open to 166mm closed, giving you 84mm of take-up to pull the slack out and hold tension. The hot dipped galvanised finish handles rust and corrosion, so it works outdoors and around coastal or wash-down areas. An electro plated finish is also made in this pattern if the job calls for it. Wind both eyes in evenly and keep some thread engaged at each end.
Common questions
- what is the adjustment range on an 8mm beaver turnbuckle
- It measures 250mm fully open and 166mm closed, so you get 84mm of take-up between the eyes.
- are beaver commercial turnbuckles galvanised
- Yes, this one has a hot dipped galvanised finish for added protection against rust and corrosion. An electro plated finish is also available in the same pattern.
- what is an eye and eye turnbuckle used for
- Straight or inline tension work, most often with wire rope and chain assemblies where you need to adjust and hold tension.
Full specifications
| Product Code | Size mm | e Open mm | e Closed mm | A mm | B mm | C mm | Finish | Pack Qty | Weight per 100 (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 324206 | 6 | 200 | 132 | 98 | 10 | 19.5 | Galvanised | 250 | 8 |
| 324208 | 8 | 250 | 166 | 123 | 11 | 22 | Galvanised | 150 | 14 |
| 324210 | 10 | 295 | 188 | 144 | 12 | 25 | Galvanised | 100 | 26 |
| 324213 | 13 | 420 | 255 | 297 | 17 | 33.5 | Galvanised | 40 | 50 |
| 324216 | 16 | 525 | 340 | 250 | 24 | 45.5 | Galvanised | 25 | 100 |
| 324220 | 20 | 605 | 395 | 285 | 28 | 52 | Galvanised | 15 | 168 |
| 324225 | 25 | 720 | 490 | 345 | 32.5 | 67 | Galvanised | 8 | 256 |
Questions about this equipment? Send us a message and we’ll check it against the job.
