what size wire rope does a 6mm turnbuckle suit

This is the 6mm size in the Beaver commercial eye and eye range, matched to light wire rope and chain assemblies working in straight or inline tension. The eye ends are sized for 6mm gear.

how much adjustment do you get on a 6mm eye and eye turnbuckle

It measures 200mm fully open and 132mm closed, so you have 68mm of take-up to tension a line. The body itself is 98mm long.

is a galvanised turnbuckle ok outside

The hot dipped galvanised finish is there to hold off rust and corrosion in exposed conditions. If you want a different look or a lighter coating, the same turnbuckle comes in electro plated.

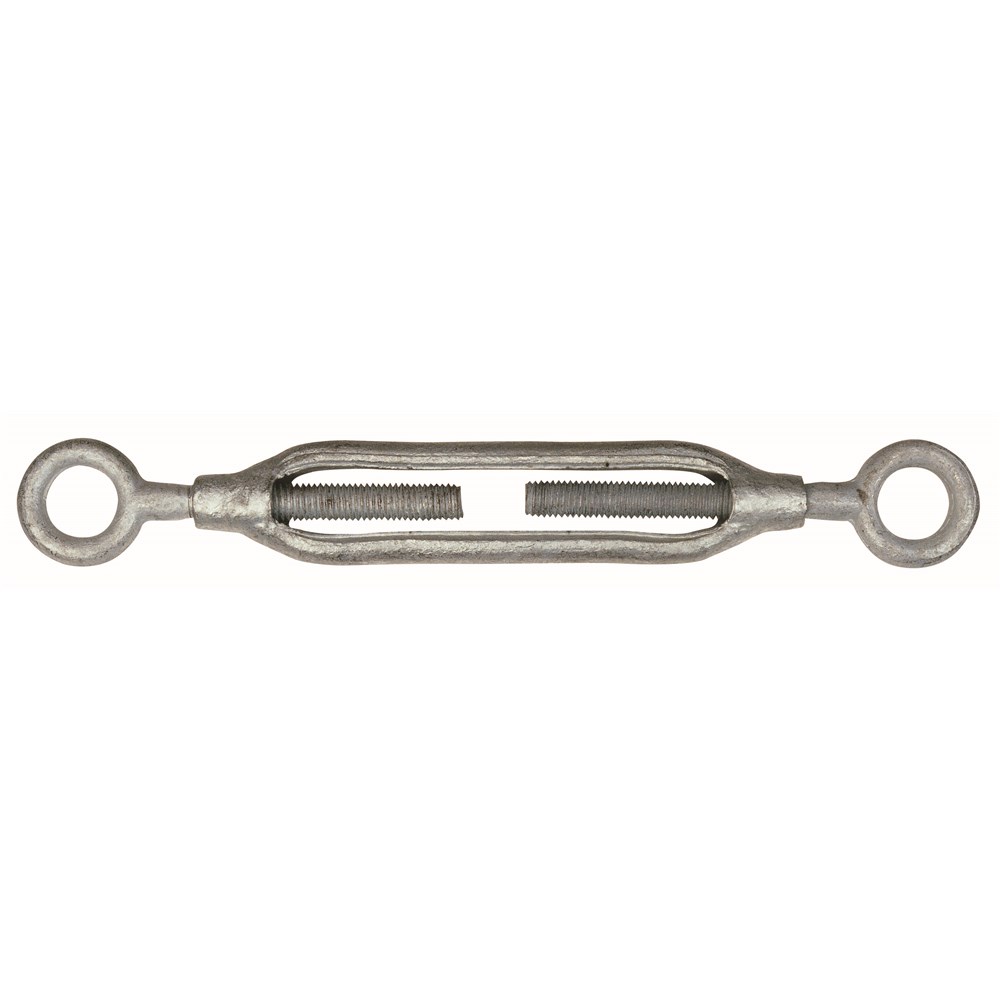

BEAVER EYE AND EYE COMMERCIAL TURNBUCKLES - GALVANISED 6mm

Name: BEAVER EYE AND EYE COMMERCIAL TURNBUCKLES - GALVANISED 6mm
Brand: BEAVER
SKU: 324206
Price: 3.44 AUD
Availability: InStock

324206per Each

Size

$3.44 inc GSTTrade $3.10, save $0.34Trade accounts save 10%. Apply with your ABN

A mm	98
B mm	10
C mm	19.5
Size	6mm
Finish	Galvanised
Size mm	6
Pack Qty	250
e Open mm	200
e Closed mm	132
Weight per 100 (kg)	8

About this product

The Beaver Eye and Eye Commercial Turnbuckle in galvanised 6mm is the smallest end of the range, made for straight, inline tension adjustment on wire rope and chain assemblies. Both ends take a 6mm eye, with a 10mm B dimension and a 19.5mm C dimension, so it suits light stay wires, fencing tension lines and bracing where a bigger body would be overkill.

Take-up runs from 200mm fully open to 132mm closed, giving you 68mm of adjustment across a 98mm body length. It is forged steel with a hot dipped galvanised finish for corrosion protection outdoors, and an electro plated version is also available. At roughly 8kg per 100 units, it is light enough to carry a handful up a ladder without thinking about it.

Common questions

what size wire rope does a 6mm turnbuckle suit: This is the 6mm size in the Beaver commercial eye and eye range, matched to light wire rope and chain assemblies working in straight or inline tension. The eye ends are sized for 6mm gear.
how much adjustment do you get on a 6mm eye and eye turnbuckle: It measures 200mm fully open and 132mm closed, so you have 68mm of take-up to tension a line. The body itself is 98mm long.
is a galvanised turnbuckle ok outside: The hot dipped galvanised finish is there to hold off rust and corrosion in exposed conditions. If you want a different look or a lighter coating, the same turnbuckle comes in electro plated.

Full specifications

Product Code	Size mm	e Open mm	e Closed mm	A mm	B mm	C mm	Finish	Pack Qty	Weight per 100 (kg)
324206	6	200	132	98	10	19.5	Galvanised	250	8
324208	8	250	166	123	11	22	Galvanised	150	14
324210	10	295	188	144	12	25	Galvanised	100	26
324213	13	420	255	297	17	33.5	Galvanised	40	50
324216	16	525	340	250	24	45.5	Galvanised	25	100
324220	20	605	395	285	28	52	Galvanised	15	168
324225	25	720	490	345	32.5	67	Galvanised	8	256

Questions about this equipment? Send us a message and we’ll check it against the job.
