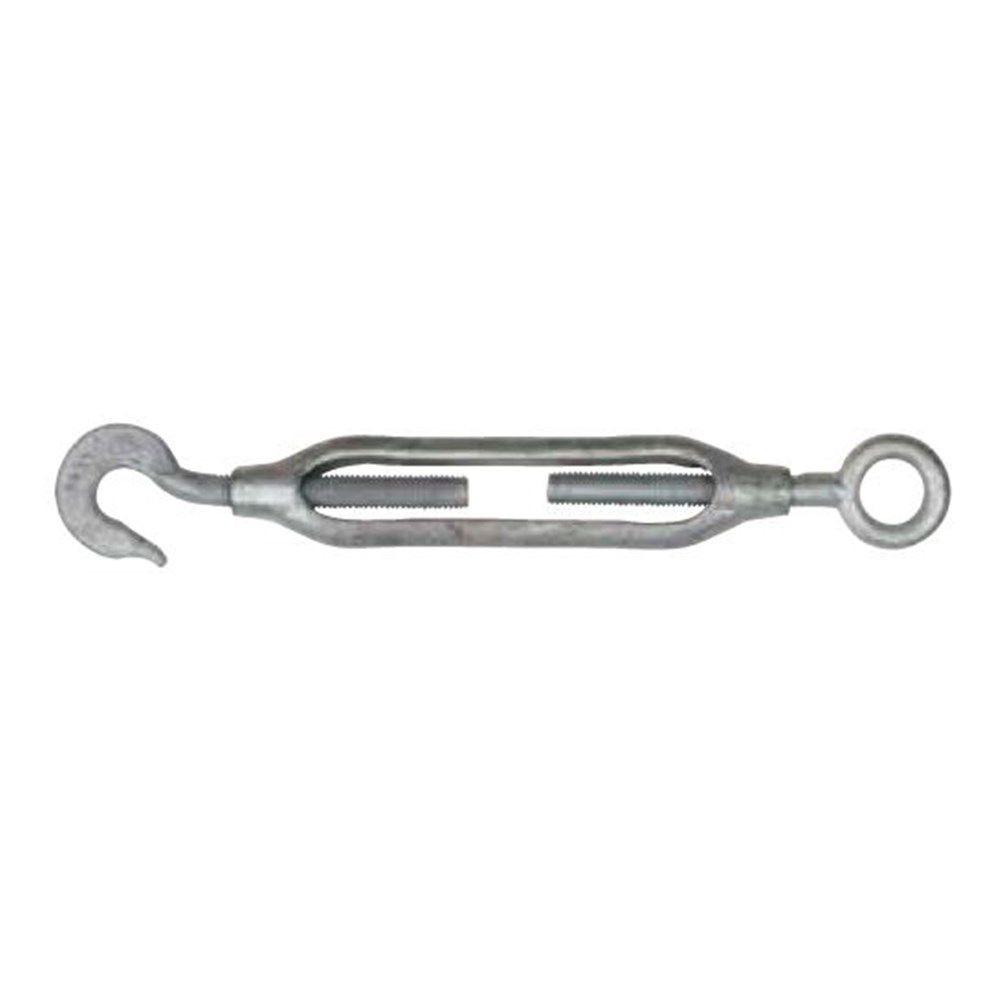

Beaver Hook and Eye CommercialTurnbuckles - Galvanised 23mm
323223per Each
$29.42 inc GSTTrade $26.48, save $2.94Trade accounts save 10%. Apply with your ABN
| A (mm) | 325 |
| B (mm) | 31.5 |
| C (mm) | 66 |
| D (mm) | 24.5 |
| Finish | Hot Dipped Galvanised |
| Open (mm) | 700 |
| Size (mm) | 22 |
| Closed (mm) | 440 |
| Thread Size | 23mm |
| Weight per 100 (kg) | 246 |
About this product
The Beaver Hook and Eye Commercial Turnbuckle in galvanised 23mm is a tensioning fitting for straight or inline pulls on wire rope and chain assemblies. This is the 23mm thread size, the larger end of the range, taking up 440mm closed and extending out to 700mm open. That gives you a solid 260mm of adjustment for pulling slack out of a long run. Body length measures 325mm, with a weight of 246kg per 100.
Forged steel through the hook and eye ends, with a hot dipped galvanised finish to hold off rust when the fitting lives outdoors. An electro plated version is available if galvanising is not what you need. Keep in mind this is a commercial grade turnbuckle and is not to be used for lifting. Dimensions carry a tolerance of plus or minus 10 percent, so check clearances on tight installs.
Common questions
- can you use a Beaver commercial turnbuckle for lifting
- No. Beaver Commercial Hook and Eye Turnbuckles are not to be used for lifting applications. They are made for straight or inline tension work.
- what is the adjustment range on a 23mm turnbuckle
- The 23mm size measures 440mm closed and 700mm open, giving you 260mm of take-up. Dimensions carry a plus or minus 10 percent tolerance.
- is a hot dipped galvanised turnbuckle better than electro plated
- Hot dipped galvanising lays down a heavier coating for outdoor and exposed jobs where corrosion is the concern. This range is also available in an electro plated finish.
Full specifications
| Product Code | Size (mm) | Finish | Open (mm) | Closed (mm) | A (mm) | B (mm) | C (mm) | D (mm) | Weight per 100 (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 323206 | 6 | Hot Dipped Galvanised | 225 | 153 | 99.5 | 9 | 19 | 9 | 8 |
| 323208 | 8 | Hot Dipped Galvanised | 250 | 161 | 120 | 11 | 22 | 11.5 | 14 |
| 323210 | 10 | Hot Dipped Galvanised | 330 | 220 | 150 | 14 | 27 | 14.5 | 26 |
| 323213 | 13 | Hot Dipped Galvanised | 415 | 265 | 191 | 16.5 | 34 | 14.5 | 50 |
| 323216 | 16 | Hot Dipped Galvanised | 520 | 335 | 250 | 24 | 46.5 | 19 | 100 |
| 323220 | 20 | Hot Dipped Galvanised | 595 | 400 | 290 | 27.3 | 53 | 25.5 | 168 |
| 323223 | 22 | Hot Dipped Galvanised | 700 | 440 | 325 | 31.5 | 66 | 24.5 | 246 |
| 323225 | 25 | Hot Dipped Galvanised | 720 | 480 | 337 | 32.5 | 67 | 26 | 256 |
