Beaver Hook and Eye CommercialTurnbuckles - Galvanised 16mm
323216per Each
$14.16 inc GSTTrade $12.74, save $1.42Trade accounts save 10%. Apply with your ABN
| A (mm) | 250 |
| B (mm) | 24 |
| C (mm) | 46.5 |
| D (mm) | 19 |
| Finish | Hot Dipped Galvanised |
| Open (mm) | 520 |
| Size (mm) | 16 |
| Closed (mm) | 335 |
| Thread Size | 16mm |
| Weight per 100 (kg) | 100 |
About this product

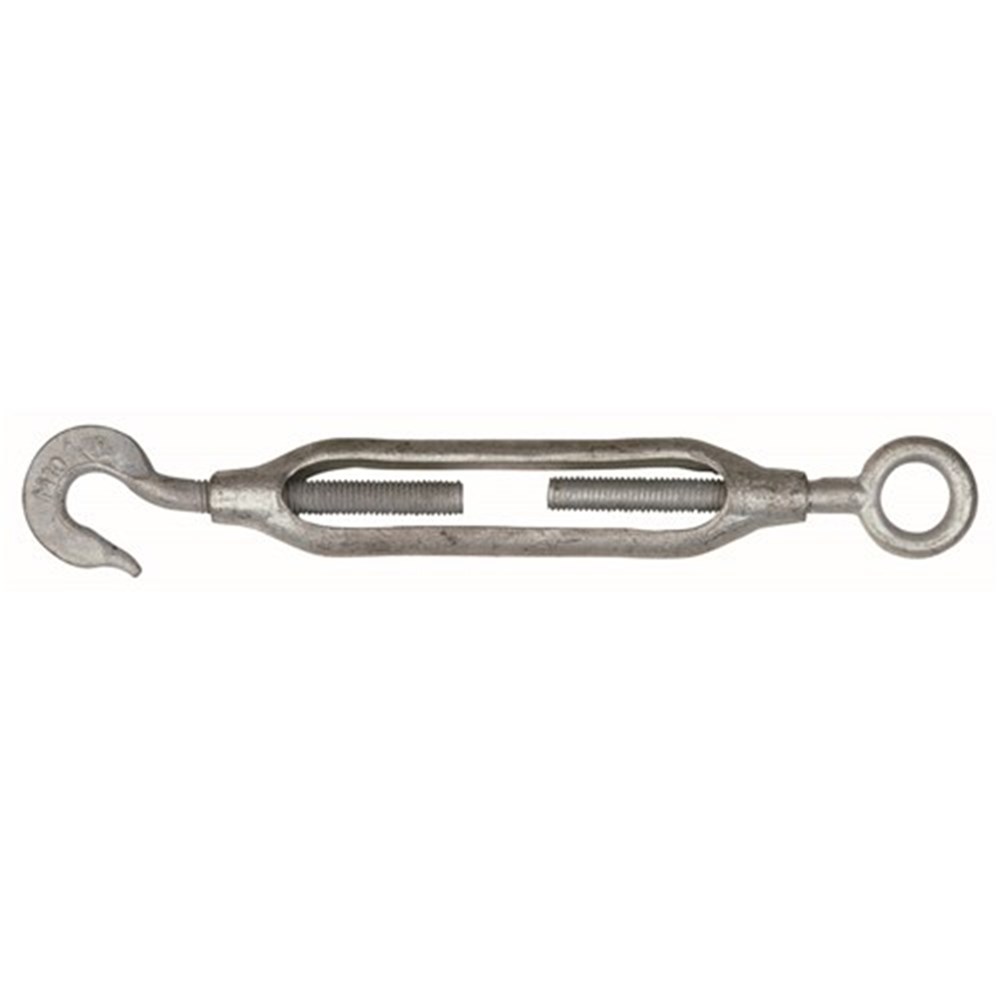

The Beaver Hook and Eye Commercial Turnbuckle in galvanised 16mm is a tensioning fitting for straight or inline pulls on wire rope and chain assemblies. This is the 16mm thread size, giving you 250mm of take-up through the body, measuring 335mm closed and 520mm open. That range suits jobs where you need a fair bit of adjustment without swapping out the fitting. The hook end drops onto a fixing quickly, the eye end takes a shackle or thimble.
Forged steel through the body and end fittings, finished hot dipped galvanised to hold off rust and corrosion outdoors. Other dimensions run 24mm at B, 46.5mm at C and 19mm at D, with size and dimensions allowing plus or minus 10 percent. Worth noting, these are commercial turnbuckles and are not to be used for lifting applications. An electro plated finish is also made in this range if the job is undercover.
Common questions
- can you use a Beaver commercial turnbuckle for lifting?
- No. These commercial turnbuckles are not to be used for lifting applications, they are made for straight or inline tension work.
- how much adjustment does a 16mm turnbuckle give?
- The 16mm size has 250mm of take-up, going from 335mm closed out to 520mm fully open.
- is a galvanised turnbuckle ok outside?
- Yes, the hot dipped galvanised finish adds protection against rust and corrosion. If the fitting stays undercover, the electro plated version is also available in this range.
Full specifications
| Product Code | Size (mm) | Finish | Open (mm) | Closed (mm) | A (mm) | B (mm) | C (mm) | D (mm) | Weight per 100 (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 323206 | 6 | Hot Dipped Galvanised | 225 | 153 | 99.5 | 9 | 19 | 9 | 8 |
| 323208 | 8 | Hot Dipped Galvanised | 250 | 161 | 120 | 11 | 22 | 11.5 | 14 |
| 323210 | 10 | Hot Dipped Galvanised | 330 | 220 | 150 | 14 | 27 | 14.5 | 26 |
| 323213 | 13 | Hot Dipped Galvanised | 415 | 265 | 191 | 16.5 | 34 | 14.5 | 50 |
| 323216 | 16 | Hot Dipped Galvanised | 520 | 335 | 250 | 24 | 46.5 | 19 | 100 |
| 323220 | 20 | Hot Dipped Galvanised | 595 | 400 | 290 | 27.3 | 53 | 25.5 | 168 |
| 323223 | 22 | Hot Dipped Galvanised | 700 | 440 | 325 | 31.5 | 66 | 24.5 | 246 |
| 323225 | 25 | Hot Dipped Galvanised | 720 | 480 | 337 | 32.5 | 67 | 26 | 256 |
