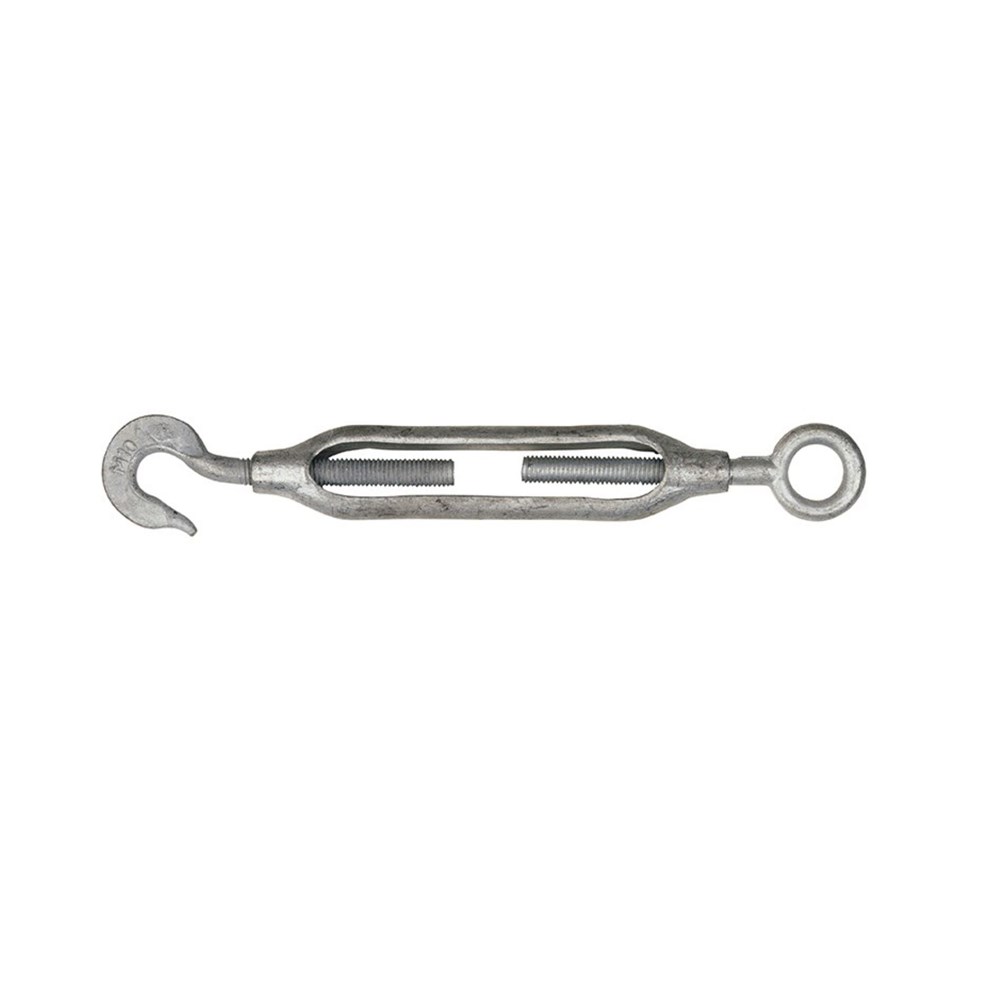

Beaver Hook and Eye CommercialTurnbuckles - Galvanised 13mm
323213per Each
$9.27 inc GSTTrade $8.34, save $0.93Trade accounts save 10%. Apply with your ABN
| A (mm) | 191 |
| B (mm) | 16.5 |
| C (mm) | 34 |
| D (mm) | 14.5 |
| Finish | Hot Dipped Galvanised |
| Open (mm) | 415 |
| Size (mm) | 13 |
| Closed (mm) | 265 |
| Thread Size | 13mm |
| Weight per 100 (kg) | 50 |
About this product
The Beaver Hook and Eye Commercial Turnbuckle in galvanised 13mm is a tensioning fitting for straight or inline pulls on wire rope and chain assemblies. The 13mm thread sits in the middle of the range, with a take up from 265mm closed out to 415mm open, so you get 150mm of adjustment to pull the slack out of a run. Overall body length is 191mm, with a 16.5mm B dimension, 34mm at C and 14.5mm at D.
Forged steel through the body and end fittings, finished hot dipped galvanised to hold off rust in outdoor and coastal work. An electro plated version is also made if the job is undercover. This is a commercial turnbuckle, not rated for lifting, so keep it to tensioning and stay duty. Expect size and dimension tolerance of plus or minus 10 per cent. Weight works out at 50kg per 100 units.
Common questions
- can you use a Beaver commercial turnbuckle for lifting?
- No. These commercial turnbuckles are not to be used for lifting applications, only straight or inline tension work such as wire rope and chain assemblies.
- how much adjustment does a 13mm turnbuckle have?
- It measures 265mm closed and 415mm open, giving you 150mm of take up. Body length is 191mm.
- is the galvanised finish suitable for outdoor use?
- Yes, the hot dipped galvanised finish adds protection against rust and corrosion. An electro plated finish is also available if you want it for drier, undercover work.
Full specifications
| Product Code | Size (mm) | Finish | Open (mm) | Closed (mm) | A (mm) | B (mm) | C (mm) | D (mm) | Weight per 100 (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 323206 | 6 | Hot Dipped Galvanised | 225 | 153 | 99.5 | 9 | 19 | 9 | 8 |
| 323208 | 8 | Hot Dipped Galvanised | 250 | 161 | 120 | 11 | 22 | 11.5 | 14 |
| 323210 | 10 | Hot Dipped Galvanised | 330 | 220 | 150 | 14 | 27 | 14.5 | 26 |
| 323213 | 13 | Hot Dipped Galvanised | 415 | 265 | 191 | 16.5 | 34 | 14.5 | 50 |
| 323216 | 16 | Hot Dipped Galvanised | 520 | 335 | 250 | 24 | 46.5 | 19 | 100 |
| 323220 | 20 | Hot Dipped Galvanised | 595 | 400 | 290 | 27.3 | 53 | 25.5 | 168 |
| 323223 | 22 | Hot Dipped Galvanised | 700 | 440 | 325 | 31.5 | 66 | 24.5 | 246 |
| 323225 | 25 | Hot Dipped Galvanised | 720 | 480 | 337 | 32.5 | 67 | 26 | 256 |
