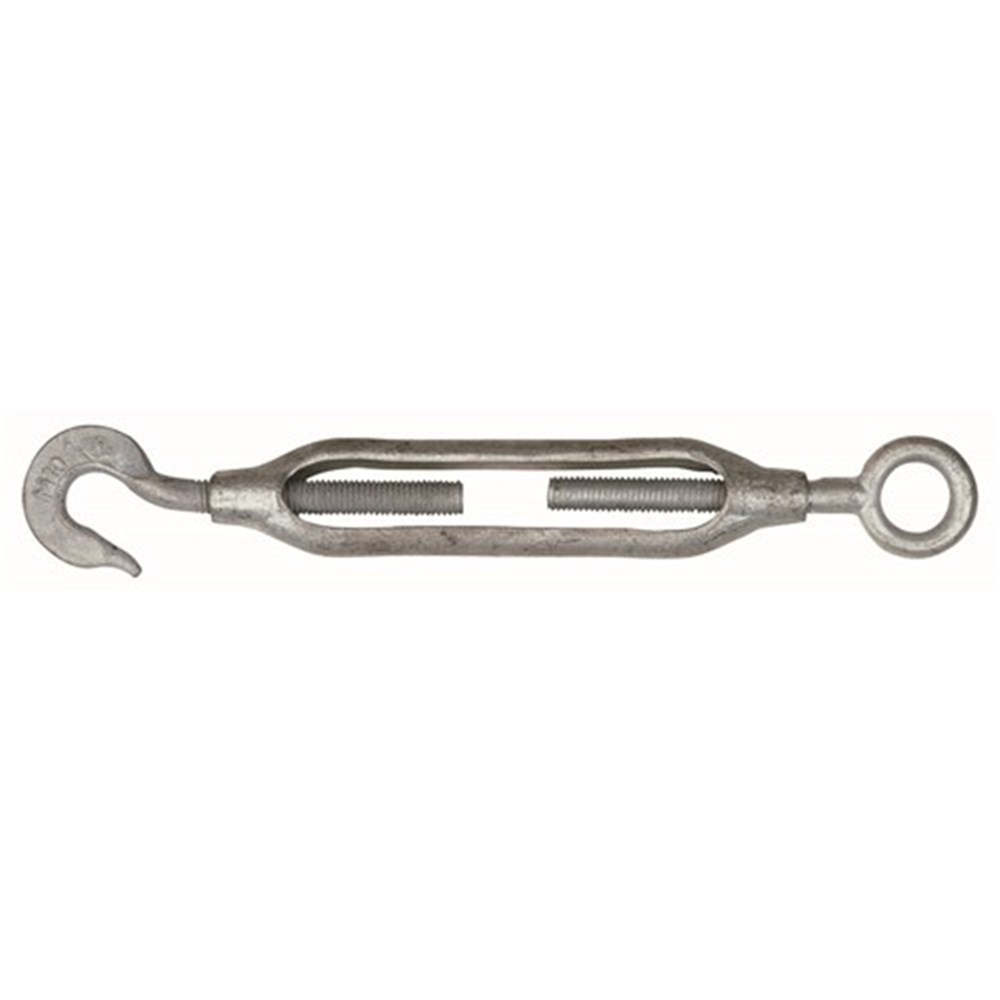

Beaver Hook and Eye CommercialTurnbuckles - Galvanised 10mm
323210per Each
$5.20 inc GSTTrade $4.68, save $0.52Trade accounts save 10%. Apply with your ABN
| A (mm) | 150 |
| B (mm) | 14 |
| C (mm) | 27 |
| D (mm) | 14.5 |
| Finish | Hot Dipped Galvanised |
| Open (mm) | 330 |
| Size (mm) | 10 |
| Closed (mm) | 220 |
| Thread Size | 10mm |
| Weight per 100 (kg) | 26 |
About this product
The Beaver Hook and Eye Commercial Turnbuckle in 10mm is a forged steel tensioner for taking up slack in wire rope and chain assemblies. This size runs a 10mm thread with a 150mm body, adjusting from 220mm closed out to 330mm fully open, so you get a good amount of take-up without stepping into the heavier sizes. Hook one end, eye the other, which makes it quick to hitch onto an existing fitting and tension from there.
The hot dipped galvanised finish holds up against rust and corrosion on outdoor and exposed jobs, and an electro plated version is available if that suits your setup better. Weight works out at 26kg per 100 units. Dimensions carry a tolerance of plus or minus 10 percent. This is a commercial tensioning fitting for straight or inline pull only, not for lifting applications.
Common questions
- can you use a Beaver commercial turnbuckle for lifting?
- No. These commercial turnbuckles are not to be used for lifting applications. They are made for straight or inline tension work such as wire rope and chain assemblies.
- how much adjustment does the 10mm turnbuckle give?
- It measures 220mm closed and 330mm fully open, giving you 110mm of take-up on a 10mm thread. Note dimensions carry a plus or minus 10 percent tolerance.
- is hot dipped galvanised better than electro plated for outdoor use?
- Hot dipped galvanising lays down a thicker coating and gives added protection against rust and corrosion, so it suits exposed sites. The same turnbuckle is also available electro plated.
Full specifications
| Product Code | Size (mm) | Finish | Open (mm) | Closed (mm) | A (mm) | B (mm) | C (mm) | D (mm) | Weight per 100 (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 323206 | 6 | Hot Dipped Galvanised | 225 | 153 | 99.5 | 9 | 19 | 9 | 8 |
| 323208 | 8 | Hot Dipped Galvanised | 250 | 161 | 120 | 11 | 22 | 11.5 | 14 |
| 323210 | 10 | Hot Dipped Galvanised | 330 | 220 | 150 | 14 | 27 | 14.5 | 26 |
| 323213 | 13 | Hot Dipped Galvanised | 415 | 265 | 191 | 16.5 | 34 | 14.5 | 50 |
| 323216 | 16 | Hot Dipped Galvanised | 520 | 335 | 250 | 24 | 46.5 | 19 | 100 |
| 323220 | 20 | Hot Dipped Galvanised | 595 | 400 | 290 | 27.3 | 53 | 25.5 | 168 |
| 323223 | 22 | Hot Dipped Galvanised | 700 | 440 | 325 | 31.5 | 66 | 24.5 | 246 |
| 323225 | 25 | Hot Dipped Galvanised | 720 | 480 | 337 | 32.5 | 67 | 26 | 256 |
