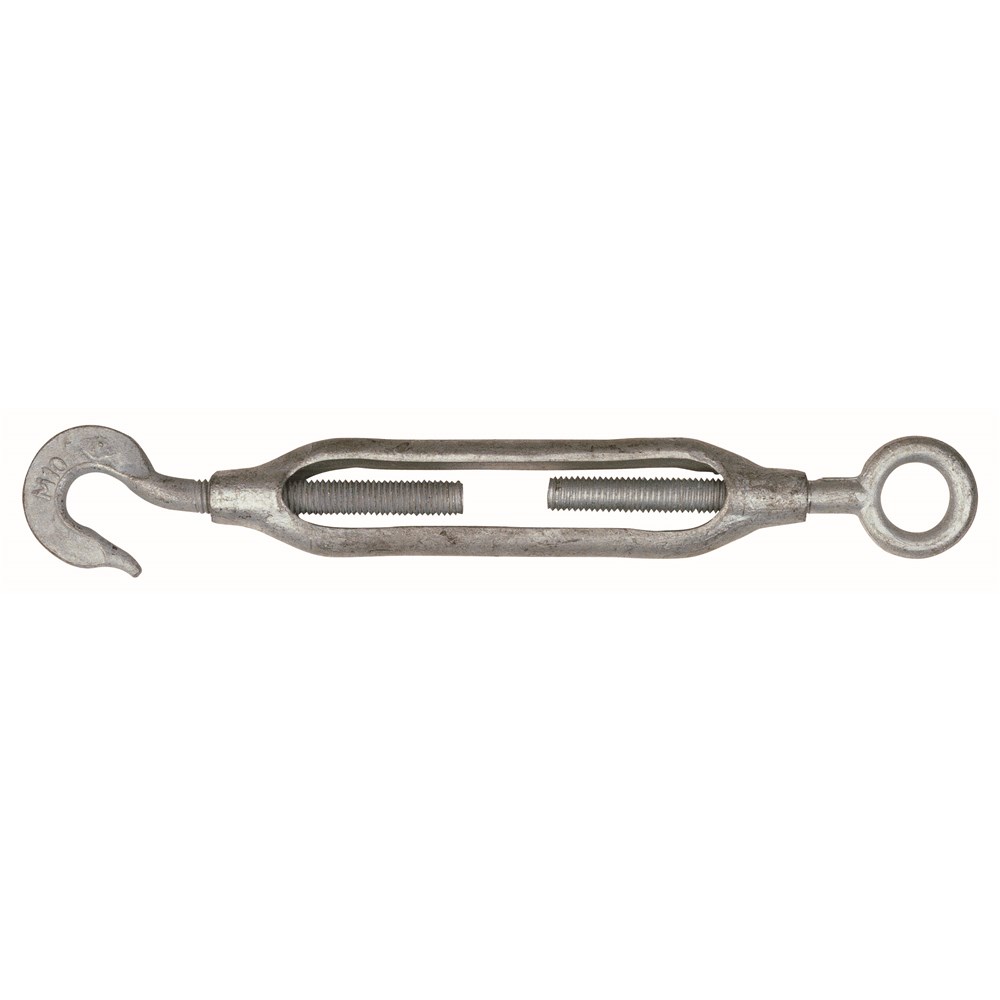

Beaver Hook and Eye CommercialTurnbuckles - Galvanised 6mm
323206per Each
$3.53 inc GSTTrade $3.18, save $0.35Trade accounts save 10%. Apply with your ABN
| A (mm) | 99.5 |
| B (mm) | 9 |
| C (mm) | 19 |
| D (mm) | 9 |
| Finish | Hot Dipped Galvanised |
| Open (mm) | 225 |
| Size (mm) | 6 |
| Closed (mm) | 153 |
| Thread Size | 6mm |
| Weight per 100 (kg) | 8 |
About this product
The Beaver Hook and Eye Commercial Turnbuckle in galvanised 6mm is a tensioning fitting for straight or inline pulls on wire rope and chain assemblies. This is the smallest thread size in the range, so it suits light fencing runs, guy wires and bracing where you just need to take the slack out and hold it. The 6mm thread gives you a take-up from 153mm closed to 225mm fully open.
Forged steel body with a hot dipped galvanised finish, which handles outdoor and coastal work better than a plated fitting. Key dimensions are 99.5mm on A, 9mm on B, 19mm on C and 9mm on D, and size and dimensions carry a tolerance of plus or minus 10%. Worth noting, this turnbuckle is not to be used for lifting applications. If you need a longer body or more take-up, step up through the larger thread sizes.
Common questions
- can you use a beaver commercial turnbuckle for lifting
- No. Beaver Commercial Hook and Eye Turnbuckles are not to be used for lifting applications, they are for straight or inline tension work only.
- what is the open and closed length of a 6mm turnbuckle
- The 6mm size measures 153mm closed and 225mm fully open, with a size and dimension tolerance of plus or minus 10%.
- is a galvanised turnbuckle better than electro plated
- The hot dipped galvanised finish gives more protection against rust and corrosion, so it is the pick for outdoor use. An electro plated version is also available.
Full specifications
| Product Code | Size (mm) | Finish | Open (mm) | Closed (mm) | A (mm) | B (mm) | C (mm) | D (mm) | Weight per 100 (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 323206 | 6 | Hot Dipped Galvanised | 225 | 153 | 99.5 | 9 | 19 | 9 | 8 |
| 323208 | 8 | Hot Dipped Galvanised | 250 | 161 | 120 | 11 | 22 | 11.5 | 14 |
| 323210 | 10 | Hot Dipped Galvanised | 330 | 220 | 150 | 14 | 27 | 14.5 | 26 |
| 323213 | 13 | Hot Dipped Galvanised | 415 | 265 | 191 | 16.5 | 34 | 14.5 | 50 |
| 323216 | 16 | Hot Dipped Galvanised | 520 | 335 | 250 | 24 | 46.5 | 19 | 100 |
| 323220 | 20 | Hot Dipped Galvanised | 595 | 400 | 290 | 27.3 | 53 | 25.5 | 168 |
| 323223 | 22 | Hot Dipped Galvanised | 700 | 440 | 325 | 31.5 | 66 | 24.5 | 246 |
| 323225 | 25 | Hot Dipped Galvanised | 720 | 480 | 337 | 32.5 | 67 | 26 | 256 |
