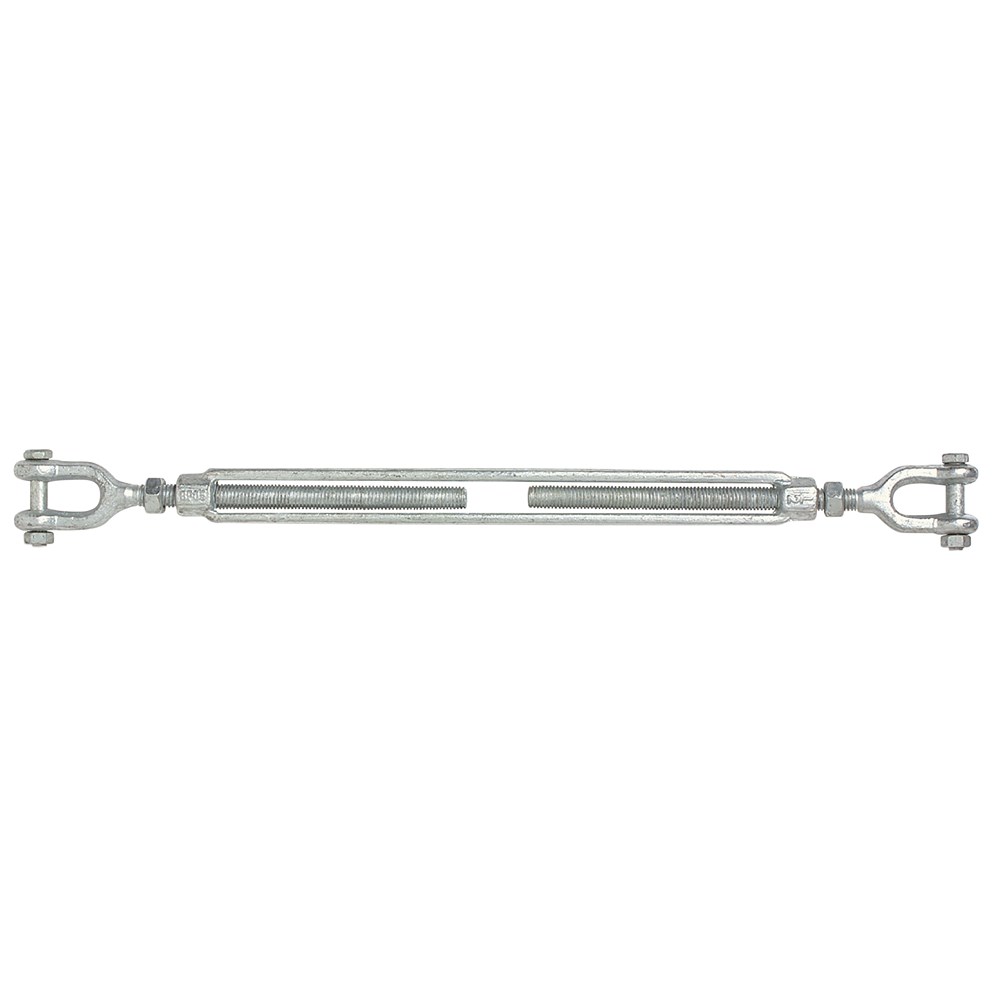

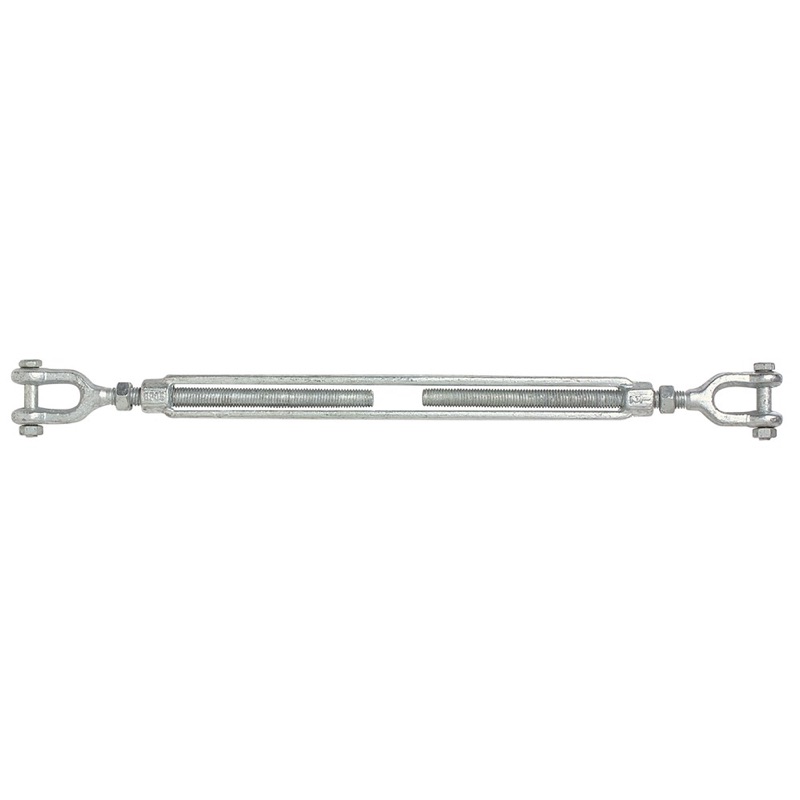

Beaver Super Buckles Jaw and Jaw with Lock Nuts 7/8"
322422per Each
$61.25 inc GSTTrade $55.13, save $6.12Trade accounts save 10%. Apply with your ABN
| G mm | 30 |
| H mm | 45 |
| L mm | 370 |
| D2 mm | 19 |
| D3 mm | 19.9 |
| Finish | Galvanised |
| Pack Qty | 6 |
| WLL Tonne | 3.26 |
| Size Inches | 22 x 305 |
| Thread Size | 7/8" |
| e (Open) mm | 890 |
| e (Closed) mm | 585 |
| Weight per 100 (kg) | 3.7 |
About this product
The Beaver Super Buckles Jaw and Jaw with Lock Nuts 7/8" is a rated turnbuckle for straight line tensioning of wire rope and chain assemblies. This is the 3.26 tonne WLL size in the range, with a 7/8" thread and a 22 x 305 body, so it sits at the heavier straining end where smaller buckles run out of capacity. Closed length is 585mm and it opens out to 890mm, giving you plenty of adjustment on a long stay or guy.
Made from Grade P high tensile material, quenched and tempered, with a hot dipped galvanised finish that handles outdoor and exposed work. Jaw ends take a pin at both sides for in line connection, and the lock nuts hold your setting once the load is on. Jaw width is 30mm, jaw depth 45mm and the pin diameter is 19mm. Complies Federal Specifications FF-T-791 Type1 Form1 Class.
Common questions
- what is the WLL of a 7/8 Beaver super buckle
- This 7/8" size has a working load limit of 3.26 tonne. It is the rated jaw and jaw version with lock nuts.
- how much adjustment does a 7/8 turnbuckle give
- It measures 585mm closed and 890mm open, so you get around 305mm of take-up on the 22 x 305 body.
- can Beaver super buckles be used outside
- Yes. They have a hot dipped galvanised finish over quenched and tempered Grade P high tensile material, which suits outdoor use.
Full specifications
| Product Code | Size Inches | Finish | e (Open) mm | e (Closed) mm | L mm | D2 mm | D3 mm | G mm | H mm | WLL Tonne | Pack Qty | Weight per 100 (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 322412 | 12 x 305 | Galvanised | 775 | 470 | 342 | 9.5 | 9.5 | 14 | 26 | 1 | 25 | 1.1 |
| 322416 | 16 x 305 | Galvanised | 815 | 510 | 352 | 12.5 | 12.5 | 20 | 34 | 1.59 | 15 | 1.75 |
| 322419 | 19 x 305 | Galvanised | 850 | 545 | 360 | 15.8 | 15.8 | 25.5 | 38 | 2.36 | 10 | 2.8 |
| 322422 | 22 x 305 | Galvanised | 890 | 585 | 370 | 19 | 19.9 | 30 | 45 | 3.26 | 6 | 3.7 |
| 322425 | 25 x 305 | Galvanised | 935 | 630 | 380 | 25.4 | 22.2 | 32 | 51 | 4.54 | 5 | 5.6 |
Questions about this equipment? Send us a message and we’ll check it against the job.
