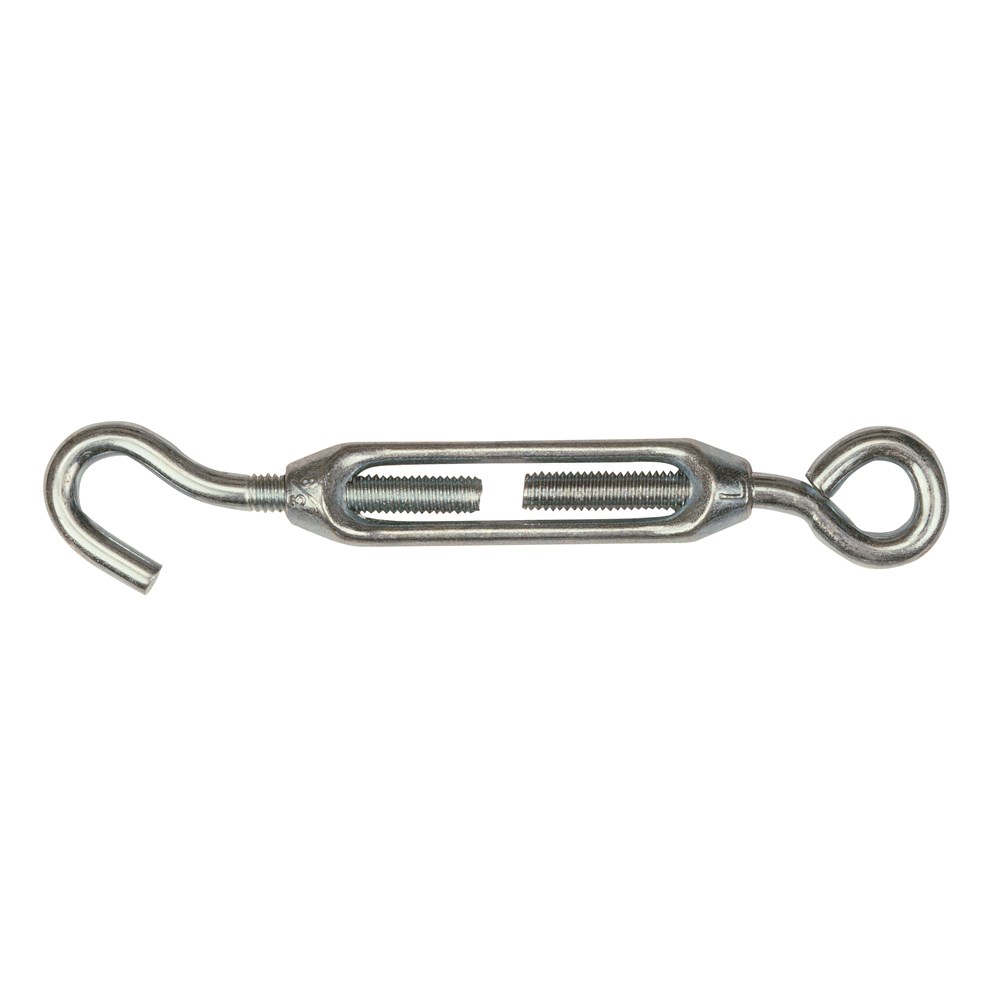

Beaver Hook and Eye CommercialTurnbuckles - Electro Plated 5mm x Electro Plated
320205per Each
$1.05 inc GSTTrade $0.95, save $0.10Trade accounts save 10%. Apply with your ABN
| Finish | Electro Plated |
| Size (mm) | 5 |
| Thread Size | 5mm |
| Weight per 100 (kg) | 15 |
About this product
The Beaver Hook and Eye Commercial Turnbuckle in 5mm is a tensioning fitting for straight or inline pulls on wire rope and chain assemblies. It is the lightest thread size in this range at 15kg per 100 units, so it suits the smaller wire and chain work where a heavier turnbuckle would be overkill. The hook end lets you hitch on without threading through, and the eye end takes a shackle or thimble.
Body and fittings are forged steel with an electro plated finish, which gives it a fair level of protection against rust and corrosion for general outdoor and shed use. If the job sits in a harsher spot, the same turnbuckle comes in a hot dipped galvanised finish. One thing to be clear on, this is a commercial tensioner only and is not to be used for lifting applications.
Common questions
- can you use a Beaver commercial turnbuckle for lifting
- No. These commercial turnbuckles are not to be used for lifting applications, only straight or inline tension work.
- what is the 5mm Beaver turnbuckle made from
- It is forged steel with an electro plated finish for added protection against rust and corrosion.
- electro plated or hot dipped galvanised turnbuckle, which one
- The electro plated finish handles general use and gives protection against rust and corrosion. The same turnbuckle is also available hot dipped galvanised if conditions are harsher.
Full specifications
| Product Code | Size (mm) | Finish | Weight per 100 (kg) |
|---|---|---|---|
| 320205 | 5 | Electro Plated | 15 |
| 320206 | 6 | Electro Plated | 16 |
| 320208 | 8 | Electro Plated | 24 |
| 320210 | 10 | Electro Plated | 39 |
