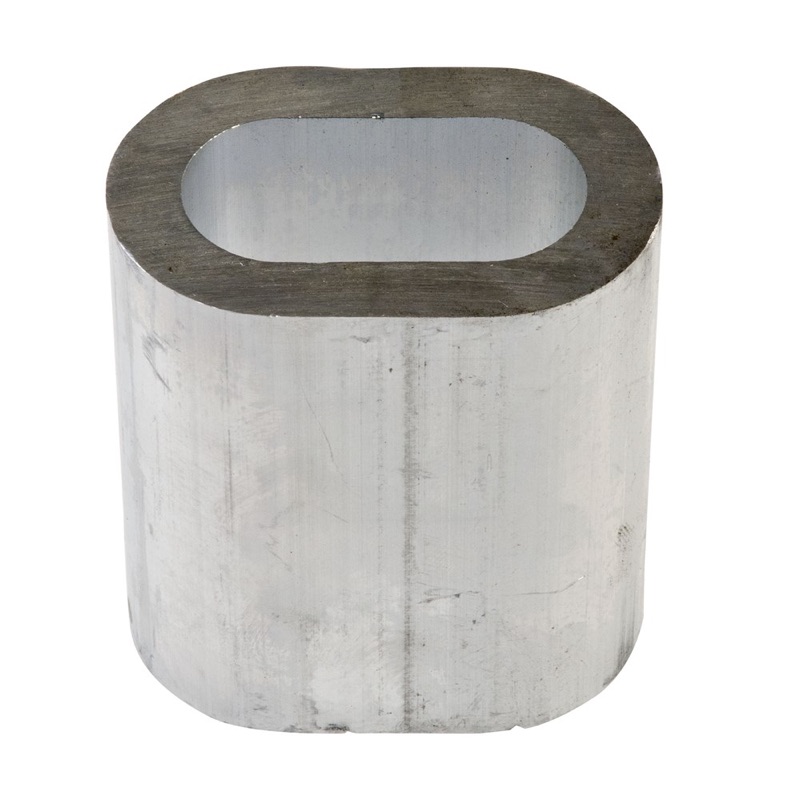

Beaver Wire Rope Aluminium Ferrules 31mm x 62mm x 11.7mm
317128per Each
$34.85 inc GSTTrade $31.37, save $3.48Trade accounts save 10%. Apply with your ABN
| A | 31mm |
| B | 62mm |
| C | 11.7mm |
| L | 98mm |
| DIN Code | 28 |
| Dimensions A x B x C | 31mm x 62mm x 11.7mm |
About this product
The Beaver Wire Rope Aluminium Ferrules 31mm x 62mm x 11.7mm are swage sleeves for forming eyes in galvanised or black wire rope. This is one of the larger sizes in the range, with an 11.7mm bore, a 31mm outside diameter and a 62mm body, sitting at DIN code 28 with an overall length of 98mm.
Aluminium swages down cleanly under a press and grips the rope along the full length of the ferrule, which is why it is the standard choice for machine swaged eyes. Beaver certify these ferrules to EN 13411. Match the bore to your rope diameter, use the correct die for the size, and check the finished swage before the assembly goes to work.
Common questions
- what size wire rope does a 31mm x 62mm x 11.7mm ferrule suit
- The bore, dimension C, is 11.7mm, so it is matched to rope of that nominal diameter. Always confirm the rope diameter against the ferrule bore before swaging.
- are Beaver aluminium ferrules certified
- Yes, Beaver certify these aluminium ferrules to EN 13411.
- can you use aluminium ferrules on galvanised wire rope
- Yes. This is the standard ferrule for machine swaging eyes in either galvanised or black wire rope.
Full specifications
| Product code | DIN Code | A | B | C | L |
|---|---|---|---|---|---|
| 317101A | 1.5 | 1.8mm | 3.6mm | 1.05mm | 6mm |
| 317102 | 2 | 2.2mm | 4.4mm | 0.90mm | 7mm |
| 317102A | 2.5 | 2.7mm | 5.4mm | 1.05mm | 9mm |
| 317103 | 3 | 3.3mm | 6.6mm | 1.25mm | 11mm |
| 317103A | 3.5 | 3.8mm | 7.6mm | 1.5mm | 13mm |
| 317104 | 4 | 4.4mm | 8.8mm | 1.7mm | 14mm |
| 317105 | 5 | 5.5mm | 11mm | 2.1mm | 18mm |
| 317106 | 6 | 6.6mm | 13.2mm | 2.5mm | 21mm |
| 317106A | 6.5 | 7.2mm | 14.4mm | 2.7mm | 23mm |
| 317107 | 7 | 7.8mm | 15.6mm | 2.9mm | 25mm |
| 317108 | 8 | 8.8mm | 17.6mm | 3.3mm | 28mm |
| 317109 | 9 | 9.9mm | 19.8mm | 3.7mm | 32mm |
| 317110 | 10 | 10.9mm | 21.8mm | 4.1mm | 35mm |
| 317111 | 11 | 12.1mm | 24.2mm | 4.5mm | 39mm |
| 317112 | 12 | 13.2mm | 26.4mm | 4.9mm | 42mm |
| 317113 | 13 | 14.2mm | 28.4mm | 5.4mm | 46mm |
| 317114 | 14 | 15.3mm | 30.6mm | 5.8mm | 49mm |
| 317116 | 16 | 17.5mm | 35mm | 6.7mm | 56mm |
| 317118 | 18 | 19.6mm | 39.2mm | 7.6mm | 63mm |
| 317120 | 20 | 21.7mm | 43.4mm | 8.4mm | 70mm |
| 317122 | 22 | 24.3mm | 48.6mm | 9.2mm | 77mm |
| 317124 | 24 | 26.4mm | 52.8mm | 10mm | 84mm |
| 317126 | 26 | 28.5mm | 57mm | 10.9mm | 91mm |
| 317128 | 28 | 31mm | 62mm | 11.7mm | 98mm |
| 317130 | 30 | 33.1mm | 66.2mm | 12.5mm | 105mm |
| 317132 | 32 | 35.2mm | 70.4mm | 13.4mm | 112mm |
| 317134 | 34 | 37.8mm | 75.6mm | 14.2mm | 119mm |
| 317136 | 36 | 39.8mm | 79.6mm | 15mm | 126mm |
| 317138 | 38 | 41.9mm | 83.8mm | 15.8mm | 133mm |
| 317140 | 40 | 44mm | 88mm | 16.6mm | 140mm |
| 317142 | 42 | 45mm | 90mm | 17.4mm | 147mm |
| 317146 | 46 | 49mm | 98mm | 19mm | 161mm |
| 317152 | 52 | 57.2mm | 114.4mm | 21.6mm | 182mm |
| 317156 | 56 | 61.6mm | 123.2mm | 23.3mm | 196mm |
