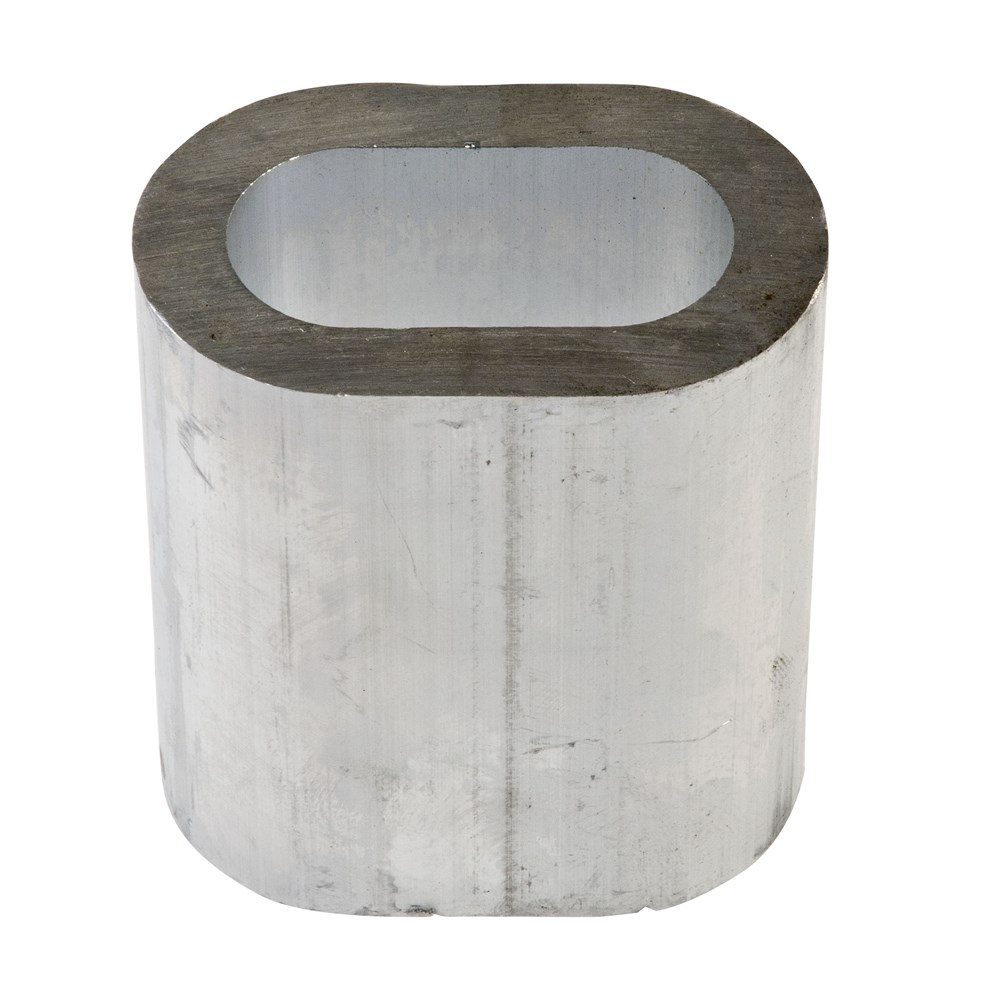

Beaver Wire Rope Aluminium Ferrules 19.6mm x 39.2mm x 7.6mm
317118per Each
$9.27 inc GSTTrade $8.34, save $0.93Trade accounts save 10%. Apply with your ABN
| A | 19.6mm |
| B | 39.2mm |
| C | 7.6mm |
| L | 63mm |
| DIN Code | 18 |
| Dimensions A x B x C | 19.6mm x 39.2mm x 7.6mm |
About this product
The Beaver Wire Rope Aluminium Ferrules 19.6mm x 39.2mm x 7.6mm is the swage sleeve you press onto wire rope to form a permanent eye. This size carries DIN code 18, with a 7.6mm bore, a 19.6mm outside dimension across A, 39.2mm across B and an overall length of 63mm. Beaver ferrules are certified to EN 13411.
Aluminium swages cleanly under a machine press, so the ferrule flows around the rope rather than cutting into it. Suits galvanised or black wire rope, and it is the standard choice for shop made eyes on slings and general rigging assemblies. Match the 7.6mm bore to your rope size and the correct die, then check the finished swage dimensions before the assembly goes to work.
Common questions
- what size wire rope do Beaver 19.6 x 39.2 x 7.6mm ferrules fit
- This ferrule has a 7.6mm bore (dimension C), so it is matched to rope of that nominal size. Always confirm against the rope diameter and the swaging die before pressing.
- are Beaver aluminium ferrules certified
- Yes, Beaver aluminium ferrules are certified to EN 13411.
- can you swage aluminium ferrules by hand
- No, these are made for machine swaging with the correct dies. They are the standard ferrule for forming eyes in galvanised or black wire rope on a press.
Full specifications
| Product code | DIN Code | A | B | C | L |
|---|---|---|---|---|---|
| 317101A | 1.5 | 1.8mm | 3.6mm | 1.05mm | 6mm |
| 317102 | 2 | 2.2mm | 4.4mm | 0.90mm | 7mm |
| 317102A | 2.5 | 2.7mm | 5.4mm | 1.05mm | 9mm |
| 317103 | 3 | 3.3mm | 6.6mm | 1.25mm | 11mm |
| 317103A | 3.5 | 3.8mm | 7.6mm | 1.5mm | 13mm |
| 317104 | 4 | 4.4mm | 8.8mm | 1.7mm | 14mm |
| 317105 | 5 | 5.5mm | 11mm | 2.1mm | 18mm |
| 317106 | 6 | 6.6mm | 13.2mm | 2.5mm | 21mm |
| 317106A | 6.5 | 7.2mm | 14.4mm | 2.7mm | 23mm |
| 317107 | 7 | 7.8mm | 15.6mm | 2.9mm | 25mm |
| 317108 | 8 | 8.8mm | 17.6mm | 3.3mm | 28mm |
| 317109 | 9 | 9.9mm | 19.8mm | 3.7mm | 32mm |
| 317110 | 10 | 10.9mm | 21.8mm | 4.1mm | 35mm |
| 317111 | 11 | 12.1mm | 24.2mm | 4.5mm | 39mm |
| 317112 | 12 | 13.2mm | 26.4mm | 4.9mm | 42mm |
| 317113 | 13 | 14.2mm | 28.4mm | 5.4mm | 46mm |
| 317114 | 14 | 15.3mm | 30.6mm | 5.8mm | 49mm |
| 317116 | 16 | 17.5mm | 35mm | 6.7mm | 56mm |
| 317118 | 18 | 19.6mm | 39.2mm | 7.6mm | 63mm |
| 317120 | 20 | 21.7mm | 43.4mm | 8.4mm | 70mm |
| 317122 | 22 | 24.3mm | 48.6mm | 9.2mm | 77mm |
| 317124 | 24 | 26.4mm | 52.8mm | 10mm | 84mm |
| 317126 | 26 | 28.5mm | 57mm | 10.9mm | 91mm |
| 317128 | 28 | 31mm | 62mm | 11.7mm | 98mm |
| 317130 | 30 | 33.1mm | 66.2mm | 12.5mm | 105mm |
| 317132 | 32 | 35.2mm | 70.4mm | 13.4mm | 112mm |
| 317134 | 34 | 37.8mm | 75.6mm | 14.2mm | 119mm |
| 317136 | 36 | 39.8mm | 79.6mm | 15mm | 126mm |
| 317138 | 38 | 41.9mm | 83.8mm | 15.8mm | 133mm |
| 317140 | 40 | 44mm | 88mm | 16.6mm | 140mm |
| 317142 | 42 | 45mm | 90mm | 17.4mm | 147mm |
| 317146 | 46 | 49mm | 98mm | 19mm | 161mm |
| 317152 | 52 | 57.2mm | 114.4mm | 21.6mm | 182mm |
| 317156 | 56 | 61.6mm | 123.2mm | 23.3mm | 196mm |
