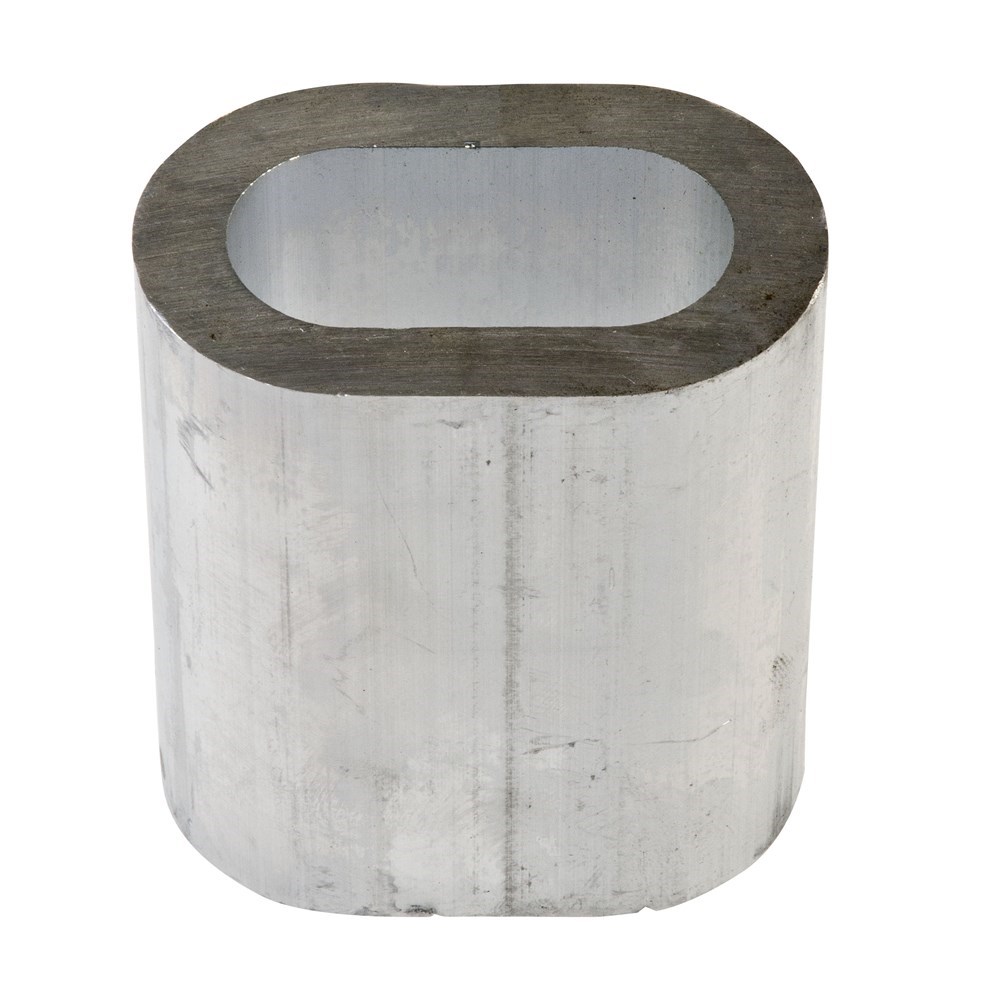

Beaver Wire Rope Aluminium Ferrules 7.2mm x 14.4mm x 2.7mm
317106Aper Each
$0.82 inc GSTTrade $0.74, save $0.08Trade accounts save 10%. Apply with your ABN
| A | 7.2mm |
| B | 14.4mm |
| C | 2.7mm |
| L | 23mm |
| DIN Code | 6.5 |
| Dimensions A x B x C | 7.2mm x 14.4mm x 2.7mm |
About this product
The Beaver Wire Rope Aluminium Ferrules 7.2mm x 14.4mm x 2.7mm are swage sleeves for forming eyes in wire rope, sized for 6.5mm rope under the DIN coding. Dimensions run 7.2mm through the bore, 14.4mm across the outside and 2.7mm at C, with an overall length of 23mm. Beaver certifies them to EN 13411.
Aluminium takes the die cleanly and grips the rope once it is pressed, which is why this is the standard choice for machine swaging rather than hand work. Suits galvanised or black wire rope. Match the ferrule size to the rope diameter and use the correct die, then check the swage dimension after pressing. Get the pairing right and the termination is quick, tidy and repeatable across a batch.
Common questions
- what size wire rope does a 7.2mm aluminium ferrule fit
- This one carries DIN code 6.5, so it is the standard ferrule for 6.5mm wire rope. The bore measures 7.2mm before swaging.
- are beaver aluminium ferrules certified
- Yes. Beaver certifies these aluminium ferrules to EN 13411.
- can you hand swage aluminium ferrules
- These are the standard ferrule for machine swaging eyes, so they should be pressed with the correct die rather than worked by hand.
Full specifications
| Product code | DIN Code | A | B | C | L |
|---|---|---|---|---|---|
| 317101A | 1.5 | 1.8mm | 3.6mm | 1.05mm | 6mm |
| 317102 | 2 | 2.2mm | 4.4mm | 0.90mm | 7mm |
| 317102A | 2.5 | 2.7mm | 5.4mm | 1.05mm | 9mm |
| 317103 | 3 | 3.3mm | 6.6mm | 1.25mm | 11mm |
| 317103A | 3.5 | 3.8mm | 7.6mm | 1.5mm | 13mm |
| 317104 | 4 | 4.4mm | 8.8mm | 1.7mm | 14mm |
| 317105 | 5 | 5.5mm | 11mm | 2.1mm | 18mm |
| 317106 | 6 | 6.6mm | 13.2mm | 2.5mm | 21mm |
| 317106A | 6.5 | 7.2mm | 14.4mm | 2.7mm | 23mm |
| 317107 | 7 | 7.8mm | 15.6mm | 2.9mm | 25mm |
| 317108 | 8 | 8.8mm | 17.6mm | 3.3mm | 28mm |
| 317109 | 9 | 9.9mm | 19.8mm | 3.7mm | 32mm |
| 317110 | 10 | 10.9mm | 21.8mm | 4.1mm | 35mm |
| 317111 | 11 | 12.1mm | 24.2mm | 4.5mm | 39mm |
| 317112 | 12 | 13.2mm | 26.4mm | 4.9mm | 42mm |
| 317113 | 13 | 14.2mm | 28.4mm | 5.4mm | 46mm |
| 317114 | 14 | 15.3mm | 30.6mm | 5.8mm | 49mm |
| 317116 | 16 | 17.5mm | 35mm | 6.7mm | 56mm |
| 317118 | 18 | 19.6mm | 39.2mm | 7.6mm | 63mm |
| 317120 | 20 | 21.7mm | 43.4mm | 8.4mm | 70mm |
| 317122 | 22 | 24.3mm | 48.6mm | 9.2mm | 77mm |
| 317124 | 24 | 26.4mm | 52.8mm | 10mm | 84mm |
| 317126 | 26 | 28.5mm | 57mm | 10.9mm | 91mm |
| 317128 | 28 | 31mm | 62mm | 11.7mm | 98mm |
| 317130 | 30 | 33.1mm | 66.2mm | 12.5mm | 105mm |
| 317132 | 32 | 35.2mm | 70.4mm | 13.4mm | 112mm |
| 317134 | 34 | 37.8mm | 75.6mm | 14.2mm | 119mm |
| 317136 | 36 | 39.8mm | 79.6mm | 15mm | 126mm |
| 317138 | 38 | 41.9mm | 83.8mm | 15.8mm | 133mm |
| 317140 | 40 | 44mm | 88mm | 16.6mm | 140mm |
| 317142 | 42 | 45mm | 90mm | 17.4mm | 147mm |
| 317146 | 46 | 49mm | 98mm | 19mm | 161mm |
| 317152 | 52 | 57.2mm | 114.4mm | 21.6mm | 182mm |
| 317156 | 56 | 61.6mm | 123.2mm | 23.3mm | 196mm |
