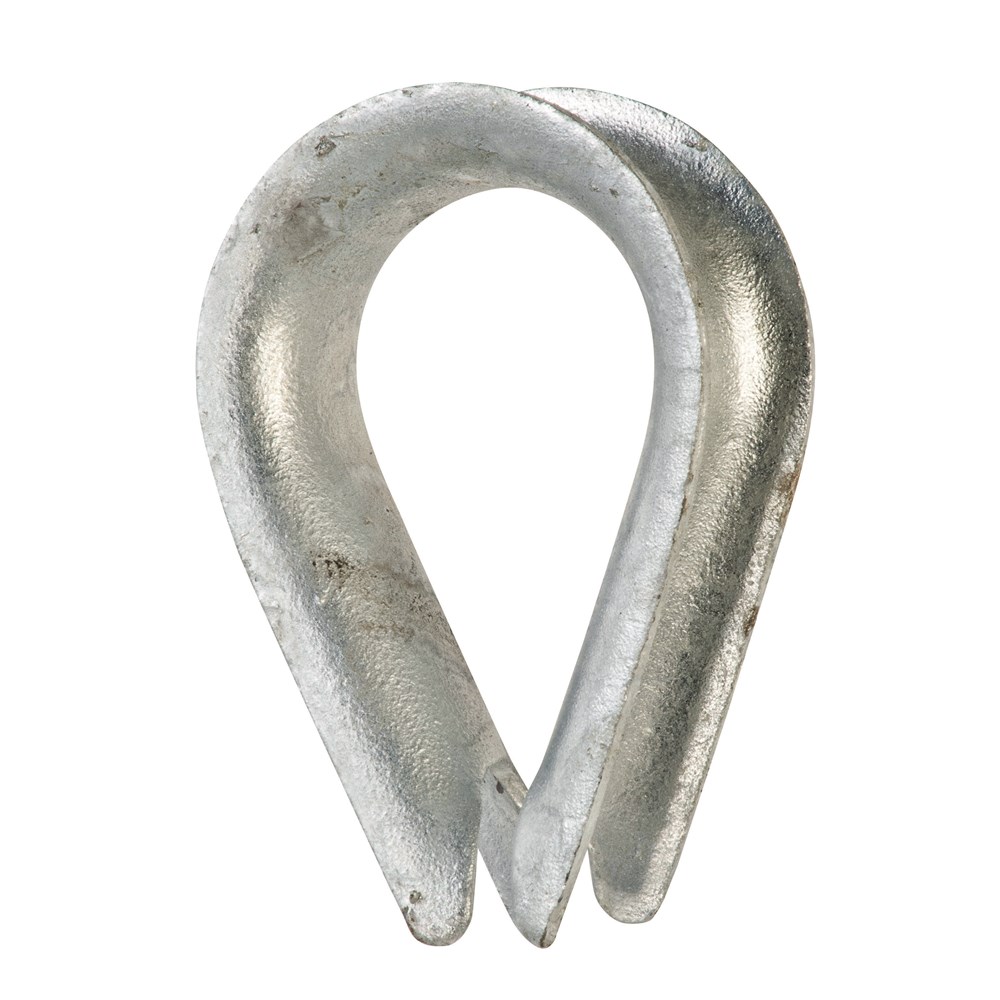

Beaver Commercial Galvanised Wire Rope Thimbles 6mm
310306per Each
$0.31 inc GSTTrade $0.28, save $0.03Trade accounts save 10%. Apply with your ABN
| UOM | Each |
| Pack QTY | 1000 |
| Wire Diameter | 6mm |
About this product
The Beaver Commercial Galvanised Wire Rope Thimbles 6mm line the eye of a 6mm wire rope so the rope holds its shape and does not chew itself out against a shackle or pin. Sized specifically for 6mm wire, so the groove seats the rope properly rather than letting it sit loose and deform under load. The galvanised finish gives the thimble a bit of protection against rust in outdoor and damp work.
These are commercial grade thimbles and they are not suitable for lifting. Use them on fencing, guy wires, general rope terminations and static jobs where the eye needs shape and wear protection. Pair with a swage or the right wire rope grips to close the eye. Check the groove matches the rope before you crimp, since an oversized thimble will let the rope shift and wear early.
Common questions
- can you use Beaver galvanised wire rope thimbles for lifting
- No. These commercial thimbles are not suitable for lifting and should be kept to static and general rope work.
- what size wire rope does a 6mm thimble take
- This variant is made for 6mm wire rope, so the groove seats 6mm wire correctly.
- are galvanised wire rope thimbles ok outside
- The galvanised finish gives some corrosion protection for outdoor and damp conditions. Check them over now and then for rust or wear at the groove.
Full specifications
| Product code | Wire Diameter | UOM | Pack QTY |
|---|---|---|---|
| 310304 | 4mm | Each | 2000 |
| 310305 | 5mm | Each | 2000 |
| 310306 | 6mm | Each | 1000 |
| 310308 | 8mm | Each | 400 |
| 310310 | 10mm | Each | 400 |
| 310313 | 13mm | Each | 100 |
| 310316 | 16mm | Each | 75 |
| 310320 | 20mm | Each | 30 |
| 310323 | 23mm | Each | 25 |
| 310325 | 25mm | Each | 20 |
| 310328 | 28mm | Each | 15 |
| 310332 | 32mm | Each | 10 |
