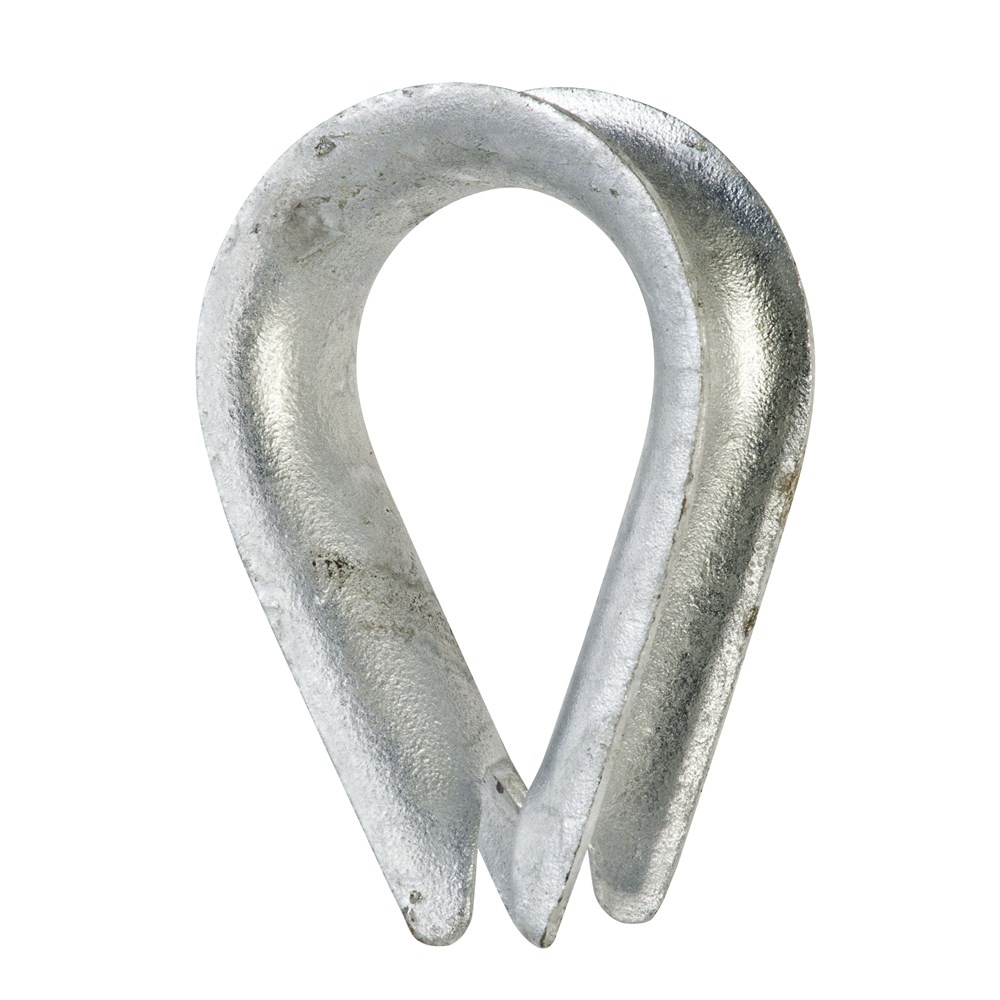

Beaver Commercial Galvanised Wire Rope Thimbles 4mm
310304per Each
$0.30 inc GSTTrade $0.27, save $0.03Trade accounts save 10%. Apply with your ABN
| UOM | Each |
| Pack QTY | 2000 |
| Wire Diameter | 4mm |
About this product
Beaver Commercial Galvanised Wire Rope Thimbles 4mm line the eye of a 4mm wire rope so the rope keeps its shape and does not chew itself out against a shackle or hook. It is the smallest end of the commercial range, so it suits the thin stuff, light stays, balustrade runs, fencing and general fabrication work where the rope is 4mm.
The galvanised finish gives the thimble a bit of protection against rust when it is sitting outdoors or around wash-down areas. Match the thimble to the rope diameter, because a 4mm thimble in a bigger rope will sit loose and the eye will pull out of shape. One thing to be clear on, these commercial thimbles are not suitable for lifting. Use rated lifting hardware for any load that goes overhead or under a crane.
Common questions
- can you use Beaver commercial galvanised thimbles for lifting
- No. These commercial thimbles are not suitable for lifting, so keep them to static and general purpose work and use rated lifting hardware for any load.
- what size wire rope does the 4mm thimble fit
- It is made for 4mm wire rope. Using it on a larger diameter rope will leave the eye loose and out of shape.
- are galvanised wire rope thimbles ok outdoors
- The galvanised finish gives useful protection against rust for outdoor and damp jobs, though like any coated fitting it will wear over time and should be checked.
Full specifications
| Product code | Wire Diameter | UOM | Pack QTY |
|---|---|---|---|
| 310304 | 4mm | Each | 2000 |
| 310305 | 5mm | Each | 2000 |
| 310306 | 6mm | Each | 1000 |
| 310308 | 8mm | Each | 400 |
| 310310 | 10mm | Each | 400 |
| 310313 | 13mm | Each | 100 |
| 310316 | 16mm | Each | 75 |
| 310320 | 20mm | Each | 30 |
| 310323 | 23mm | Each | 25 |
| 310325 | 25mm | Each | 20 |
| 310328 | 28mm | Each | 15 |
| 310332 | 32mm | Each | 10 |
