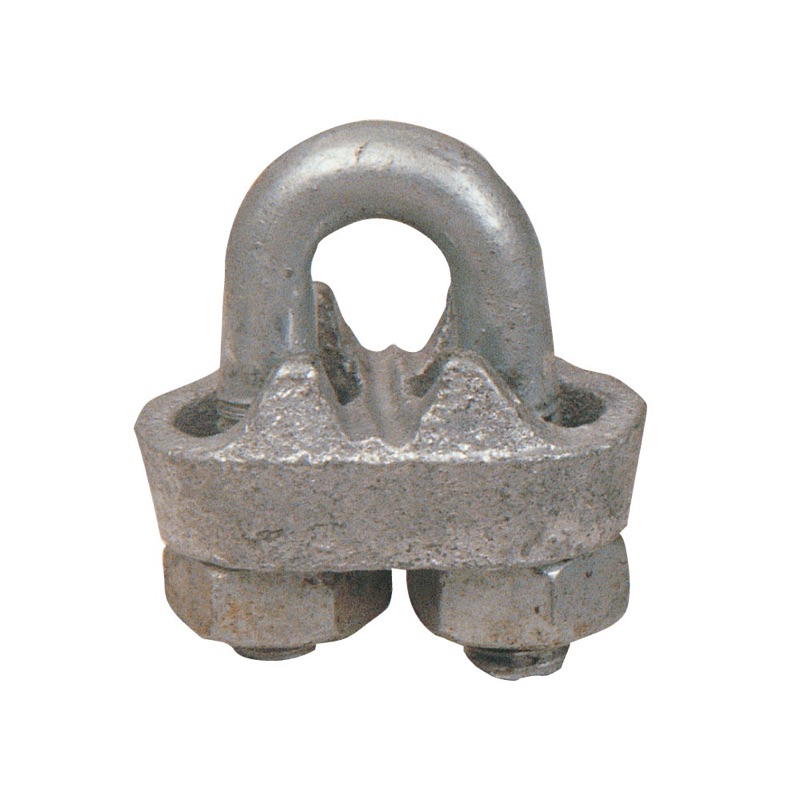

Beaver Galvanised Wire Rope Grips 18mm
303318per Each
$7.39 inc GSTTrade $6.65, save $0.74Trade accounts save 10%. Apply with your ABN
| A | 26mm |
| B | 37mm |
| C | 34mm |
| D | 16mm |
| E | 44mm |
| H | 69mm |
| W | 66mm |
| U-Bolt | Hot Dipped Galvanised |
| Wire Diameter | 18mm |
About this product
Beaver Galvanised Wire Rope Grips 18mm are U-bolt clamps for forming a termination or eye in 18mm wire rope. This is the 18mm size in the range, so match it to the rope diameter rather than guessing, as a grip sized for thinner rope will not seat the saddle properly. The U-bolt is hot dipped galvanised, which keeps the threads and bridge protected on outdoor and coastal work. Rated to AS 2076.
Key dimensions are a 26mm A, 37mm B and 34mm C, with D at 16mm and E at 44mm. Overall height is 69mm and width 66mm, so allow clearance where the grips sit close to a thimble or fitting. These grips are not suitable for lifting. Use them for guys, fencing, bracing and other static rope work, and check the nuts stay tensioned over time.
Common questions
- can wire rope grips be used for lifting
- No. These grips are not suitable for lifting and should only be used for static rope terminations.
- what size wire rope do the Beaver 18mm grips fit
- They are made for 18mm wire rope. Pick the grip that matches your rope diameter so the saddle seats correctly.
- are Beaver wire rope grips galvanised
- Yes, the U-bolt is hot dipped galvanised, which suits outdoor and coastal exposure.
Full specifications
| Product code | Wire Diameter | C | H | W | E | D | B | A | U-Bolt |
|---|---|---|---|---|---|---|---|---|---|
| 303306 | 6mm | 13mm | 29mm | 28mm | 20mm | 6mm | 15mm | 13mm | Electro Galvanised |
| 303308 | 8mm | 18mm | 32mm | 34mm | 22mm | 8mm | 19mm | 14.5mm | Electro Galvanised |
| 303310 | 9-10mm | 22mm | 41mm | 42mm | 28mm | 10mm | 24mm | 18mm | Electro Galvanised |
| 303312 | 11-12mm | 26mm | 49mm | 50mm | 33mm | 12mm | 30mm | 21mm | Hot Dipped Galvanised |
| 303316 | 16mm | 28mm | 52mm | 52mm | 33mm | 12mm | 31mm | 22mm | Hot Dipped Galvanised |
| 303318 | 18mm | 34mm | 69mm | 66mm | 44mm | 16mm | 37mm | 26mm | Hot Dipped Galvanised |
| 303320 | 20mm | 36mm | 74mm | 68mm | 44mm | 16mm | 38mm | 29mm | Hot Dipped Galvanised |
| 303322 | 20-22mm | 38mm | 77mm | 89mm | 44mm | 16mm | 40mm | 31mm | Hot Dipped Galvanised |
| 303326 | 24-26mm | 40mm | 80mm | 89mm | 44mm | 16mm | 40mm | 32.5mm | Hot Dipped Galvanised |
| 303328 | 28mm | 50mm | 96mm | 90mm | 55mm | 22mm | 48mm | 38mm | Hot Dipped Galvanised |
| 303332 | 32mm | 52mm | 102mm | 92mm | 55mm | 22mm | 48mm | 39mm | Hot Dipped Galvanised |
| 303338 | 38mm | 56mm | 105mm | 112mm | 55mm | 22mm | 48mm | 41.5mm | Hot Dipped Galvanised |
