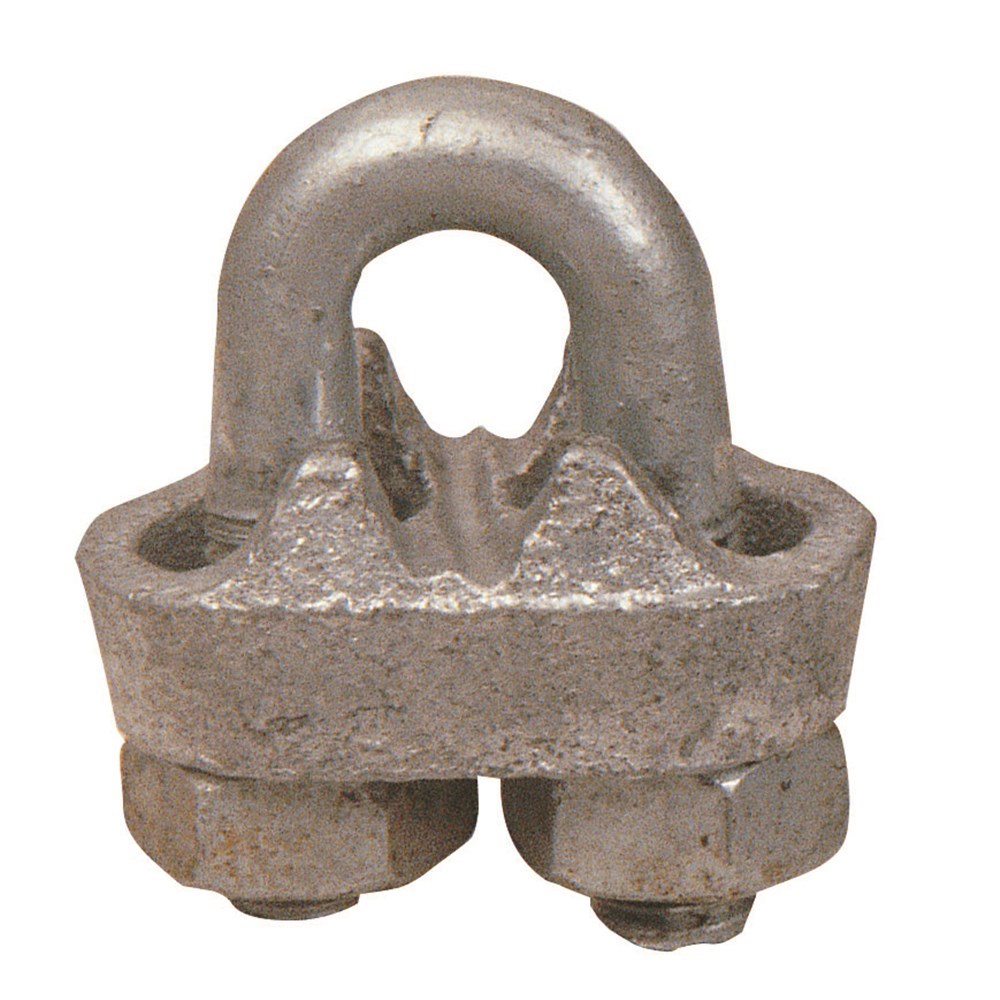

Beaver Galvanised Wire Rope Grips 12mm
303312per Each
$3.60 inc GSTTrade $3.24, save $0.36Trade accounts save 10%. Apply with your ABN
| A | 21mm |
| B | 30mm |
| C | 26mm |
| D | 12mm |
| E | 33mm |
| H | 49mm |
| W | 50mm |
| U-Bolt | Hot Dipped Galvanised |
| Wire Diameter | 12mm |
About this product
Beaver Galvanised Wire Rope Grips 12mm are U-bolt clamps used to form an eye or terminate the tail on 12mm wire rope. This is the 12mm size in the range, matched to a wire diameter of 12mm, with a 21mm A dimension, 30mm B, 26mm C, 33mm E, 49mm height and 50mm width. The U-bolt is hot dipped galvanised, so it handles outdoor work and washdown better than bare steel.
These grips are rated to AS 2076 and are not suitable for lifting. Use them for guy wires, fencing, bracing and general tie back work. Fit them with the saddle on the live part of the rope and the U-bolt on the dead tail, space them correctly along the rope, and torque them up evenly. Check the nuts after the rope has taken load and again as part of your regular inspections.
Common questions
- what size wire rope do beaver 12mm rope grips fit
- They suit 12mm wire rope. The grip is sized to a 12mm wire diameter, with a 21mm A dimension and 33mm E dimension.
- can you use wire rope grips for lifting
- No. These Beaver galvanised wire rope grips are not suitable for lifting, so keep them to static jobs like guying, bracing and tie backs.
- are beaver galvanised wire rope grips rated to a standard
- Yes, they are rated to AS 2076.
Full specifications
| Product code | Wire Diameter | C | H | W | E | D | B | A | U-Bolt |
|---|---|---|---|---|---|---|---|---|---|
| 303306 | 6mm | 13mm | 29mm | 28mm | 20mm | 6mm | 15mm | 13mm | Electro Galvanised |
| 303308 | 8mm | 18mm | 32mm | 34mm | 22mm | 8mm | 19mm | 14.5mm | Electro Galvanised |
| 303310 | 9-10mm | 22mm | 41mm | 42mm | 28mm | 10mm | 24mm | 18mm | Electro Galvanised |
| 303312 | 11-12mm | 26mm | 49mm | 50mm | 33mm | 12mm | 30mm | 21mm | Hot Dipped Galvanised |
| 303316 | 16mm | 28mm | 52mm | 52mm | 33mm | 12mm | 31mm | 22mm | Hot Dipped Galvanised |
| 303318 | 18mm | 34mm | 69mm | 66mm | 44mm | 16mm | 37mm | 26mm | Hot Dipped Galvanised |
| 303320 | 20mm | 36mm | 74mm | 68mm | 44mm | 16mm | 38mm | 29mm | Hot Dipped Galvanised |
| 303322 | 20-22mm | 38mm | 77mm | 89mm | 44mm | 16mm | 40mm | 31mm | Hot Dipped Galvanised |
| 303326 | 24-26mm | 40mm | 80mm | 89mm | 44mm | 16mm | 40mm | 32.5mm | Hot Dipped Galvanised |
| 303328 | 28mm | 50mm | 96mm | 90mm | 55mm | 22mm | 48mm | 38mm | Hot Dipped Galvanised |
| 303332 | 32mm | 52mm | 102mm | 92mm | 55mm | 22mm | 48mm | 39mm | Hot Dipped Galvanised |
| 303338 | 38mm | 56mm | 105mm | 112mm | 55mm | 22mm | 48mm | 41.5mm | Hot Dipped Galvanised |
