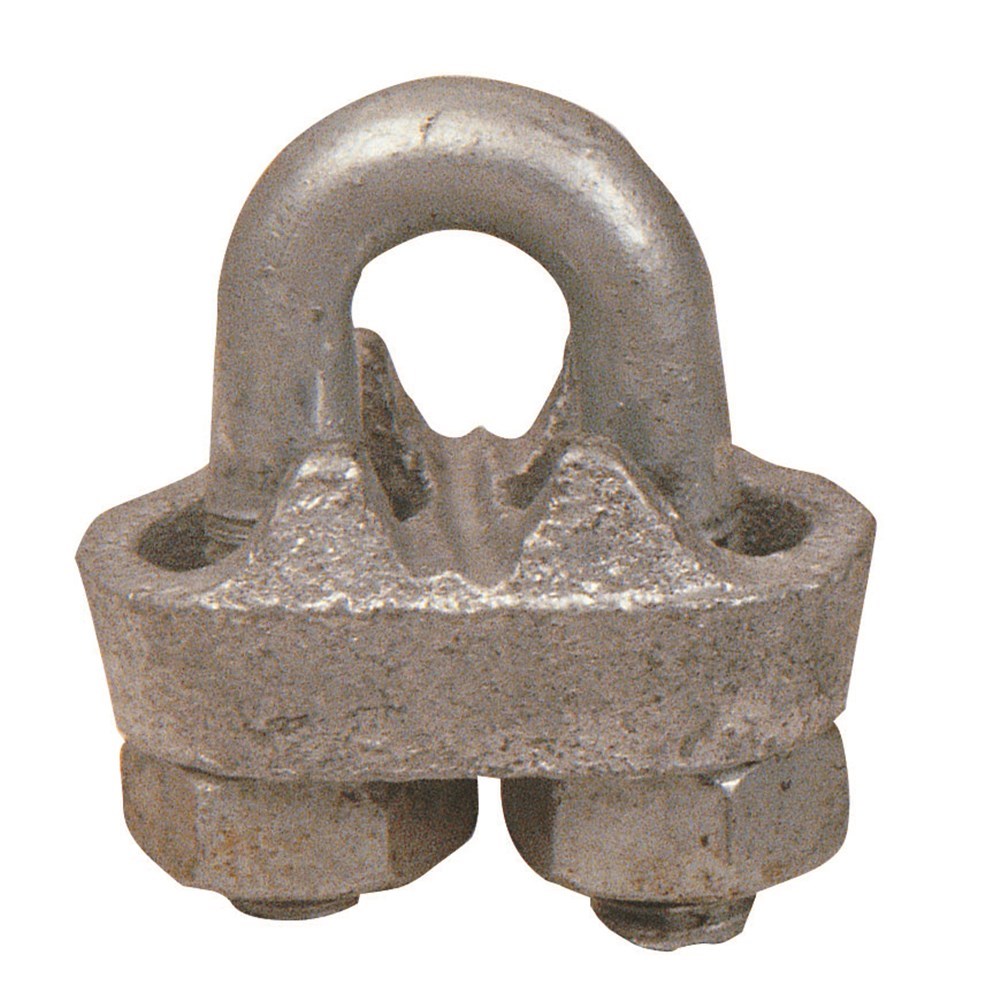

Beaver Galvanised Wire Rope Grips 8mm
303308per Each
$1.55 inc GSTTrade $1.40, save $0.15Trade accounts save 10%. Apply with your ABN
| A | 14.5mm |
| B | 19mm |
| C | 18mm |
| D | 8mm |
| E | 22mm |
| H | 32mm |
| W | 34mm |
| U-Bolt | Electro Galvanised |
| Wire Diameter | 8mm |
About this product
The Beaver Galvanised Wire Rope Grips 8mm form a turn-back termination on 8mm wire rope, clamping the tail back against the live end. This size is matched to 8mm diameter rope, with a 19mm bridge width, 18mm saddle depth and 22mm across the jaw, so the rope seats properly instead of being pinched. Overall height is 32mm and width 34mm, with an A dimension of 14.5mm.
The U-bolt is electro galvanised for general outdoor and workshop use. Beaver rate these grips to AS 2076. They are not suitable for lifting, so keep them to guy wires, fencing, barriers and static rope work. Fit the saddle on the live end with the U-bolt on the dead tail, use the correct number of grips for the rope, and check the nuts stay tight once the rope has settled under tension.
Common questions
- can you use wire rope grips for lifting
- No. Beaver state these grips are not suitable for lifting, so use them for static terminations such as guy wires and barriers only.
- what size wire rope do 8mm rope grips fit
- This size suits 8mm diameter wire rope, with a 22mm jaw opening and an 18mm saddle depth to seat the rope.
- are beaver wire rope grips galvanised
- Yes, the U-bolt is electro galvanised, which gives reasonable corrosion resistance for general outdoor and workshop use.
Full specifications
| Product code | Wire Diameter | C | H | W | E | D | B | A | U-Bolt |
|---|---|---|---|---|---|---|---|---|---|
| 303306 | 6mm | 13mm | 29mm | 28mm | 20mm | 6mm | 15mm | 13mm | Electro Galvanised |
| 303308 | 8mm | 18mm | 32mm | 34mm | 22mm | 8mm | 19mm | 14.5mm | Electro Galvanised |
| 303310 | 9-10mm | 22mm | 41mm | 42mm | 28mm | 10mm | 24mm | 18mm | Electro Galvanised |
| 303312 | 11-12mm | 26mm | 49mm | 50mm | 33mm | 12mm | 30mm | 21mm | Hot Dipped Galvanised |
| 303316 | 16mm | 28mm | 52mm | 52mm | 33mm | 12mm | 31mm | 22mm | Hot Dipped Galvanised |
| 303318 | 18mm | 34mm | 69mm | 66mm | 44mm | 16mm | 37mm | 26mm | Hot Dipped Galvanised |
| 303320 | 20mm | 36mm | 74mm | 68mm | 44mm | 16mm | 38mm | 29mm | Hot Dipped Galvanised |
| 303322 | 20-22mm | 38mm | 77mm | 89mm | 44mm | 16mm | 40mm | 31mm | Hot Dipped Galvanised |
| 303326 | 24-26mm | 40mm | 80mm | 89mm | 44mm | 16mm | 40mm | 32.5mm | Hot Dipped Galvanised |
| 303328 | 28mm | 50mm | 96mm | 90mm | 55mm | 22mm | 48mm | 38mm | Hot Dipped Galvanised |
| 303332 | 32mm | 52mm | 102mm | 92mm | 55mm | 22mm | 48mm | 39mm | Hot Dipped Galvanised |
| 303338 | 38mm | 56mm | 105mm | 112mm | 55mm | 22mm | 48mm | 41.5mm | Hot Dipped Galvanised |
