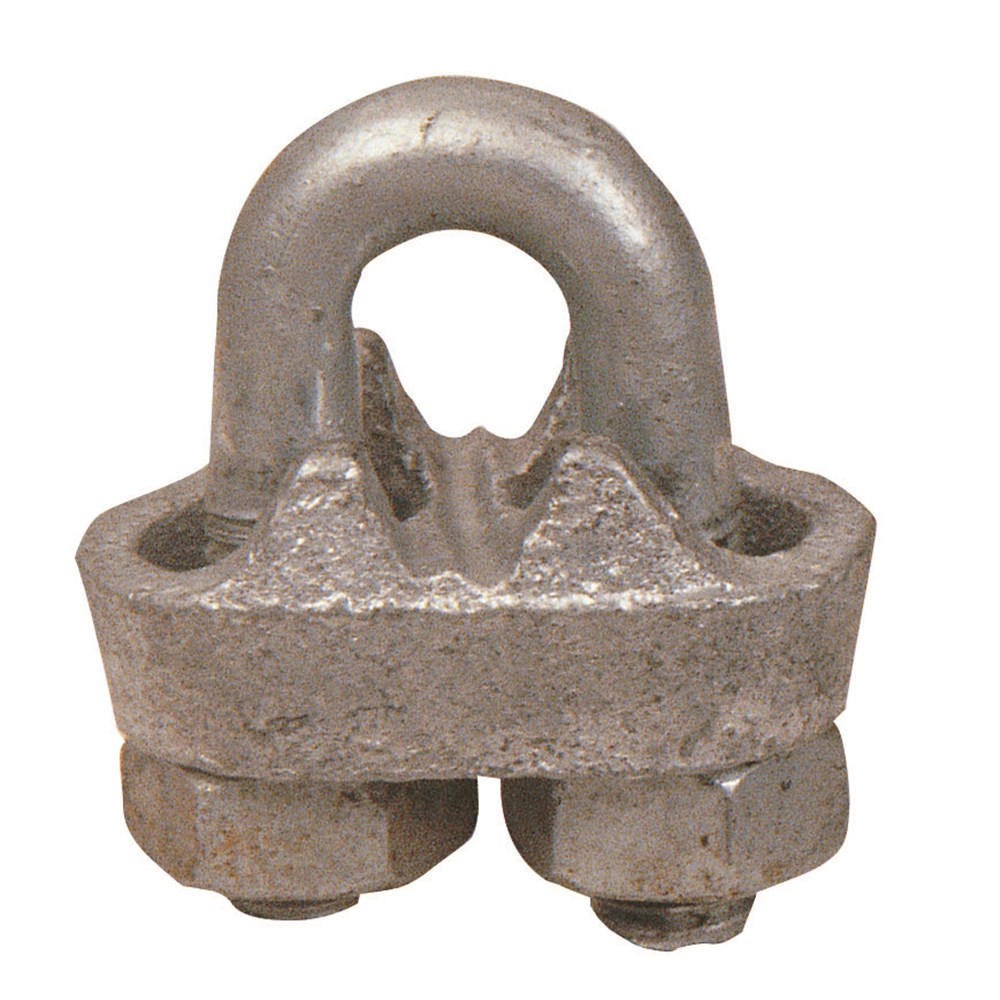

Beaver Galvanised Wire Rope Grips 6mm
303306per Each
$1.08 inc GSTTrade $0.97, save $0.11Trade accounts save 10%. Apply with your ABN
| A | 13mm |
| B | 15mm |
| C | 13mm |
| D | 6mm |
| E | 20mm |
| H | 29mm |
| W | 28mm |
| U-Bolt | Electro Galvanised |
| Wire Diameter | 6mm |
About this product
The Beaver Galvanised Wire Rope Grips 6mm clamp a turned back eye or dead end in 6mm wire rope, holding the tail against the live end. This is the size that suits 6mm rope, so match the grip to your rope diameter before you start torquing nuts. The U-bolt is electro galvanised for general outdoor and site work.
Key dimensions are a 13mm A, 15mm B and 13mm C, with a 6mm D and 20mm E, giving an overall height of 29mm and a width of 28mm. These grips are rated to AS 2076 and are not suitable for lifting, so keep them to guy wires, fencing, balustrade and static terminations. Fit the saddle on the live rope, and check the nuts stay tight after the rope has taken load.
Common questions
- what size wire rope do beaver 6mm rope grips fit
- They are made for 6mm wire rope. The D dimension is 6mm, so match the grip to the rope diameter rather than going up or down a size.
- can you use wire rope grips for lifting
- No. These Beaver grips are not suitable for lifting, and should only be used on static terminations such as guy wires or fencing.
- are beaver wire rope grips galvanised or stainless
- The U-bolt is electro galvanised, which handles general site and outdoor exposure. If you need a marine or highly corrosive setting, look at a stainless option instead.
Full specifications
| Product code | Wire Diameter | C | H | W | E | D | B | A | U-Bolt |
|---|---|---|---|---|---|---|---|---|---|
| 303306 | 6mm | 13mm | 29mm | 28mm | 20mm | 6mm | 15mm | 13mm | Electro Galvanised |
| 303308 | 8mm | 18mm | 32mm | 34mm | 22mm | 8mm | 19mm | 14.5mm | Electro Galvanised |
| 303310 | 9-10mm | 22mm | 41mm | 42mm | 28mm | 10mm | 24mm | 18mm | Electro Galvanised |
| 303312 | 11-12mm | 26mm | 49mm | 50mm | 33mm | 12mm | 30mm | 21mm | Hot Dipped Galvanised |
| 303316 | 16mm | 28mm | 52mm | 52mm | 33mm | 12mm | 31mm | 22mm | Hot Dipped Galvanised |
| 303318 | 18mm | 34mm | 69mm | 66mm | 44mm | 16mm | 37mm | 26mm | Hot Dipped Galvanised |
| 303320 | 20mm | 36mm | 74mm | 68mm | 44mm | 16mm | 38mm | 29mm | Hot Dipped Galvanised |
| 303322 | 20-22mm | 38mm | 77mm | 89mm | 44mm | 16mm | 40mm | 31mm | Hot Dipped Galvanised |
| 303326 | 24-26mm | 40mm | 80mm | 89mm | 44mm | 16mm | 40mm | 32.5mm | Hot Dipped Galvanised |
| 303328 | 28mm | 50mm | 96mm | 90mm | 55mm | 22mm | 48mm | 38mm | Hot Dipped Galvanised |
| 303332 | 32mm | 52mm | 102mm | 92mm | 55mm | 22mm | 48mm | 39mm | Hot Dipped Galvanised |
| 303338 | 38mm | 56mm | 105mm | 112mm | 55mm | 22mm | 48mm | 41.5mm | Hot Dipped Galvanised |
