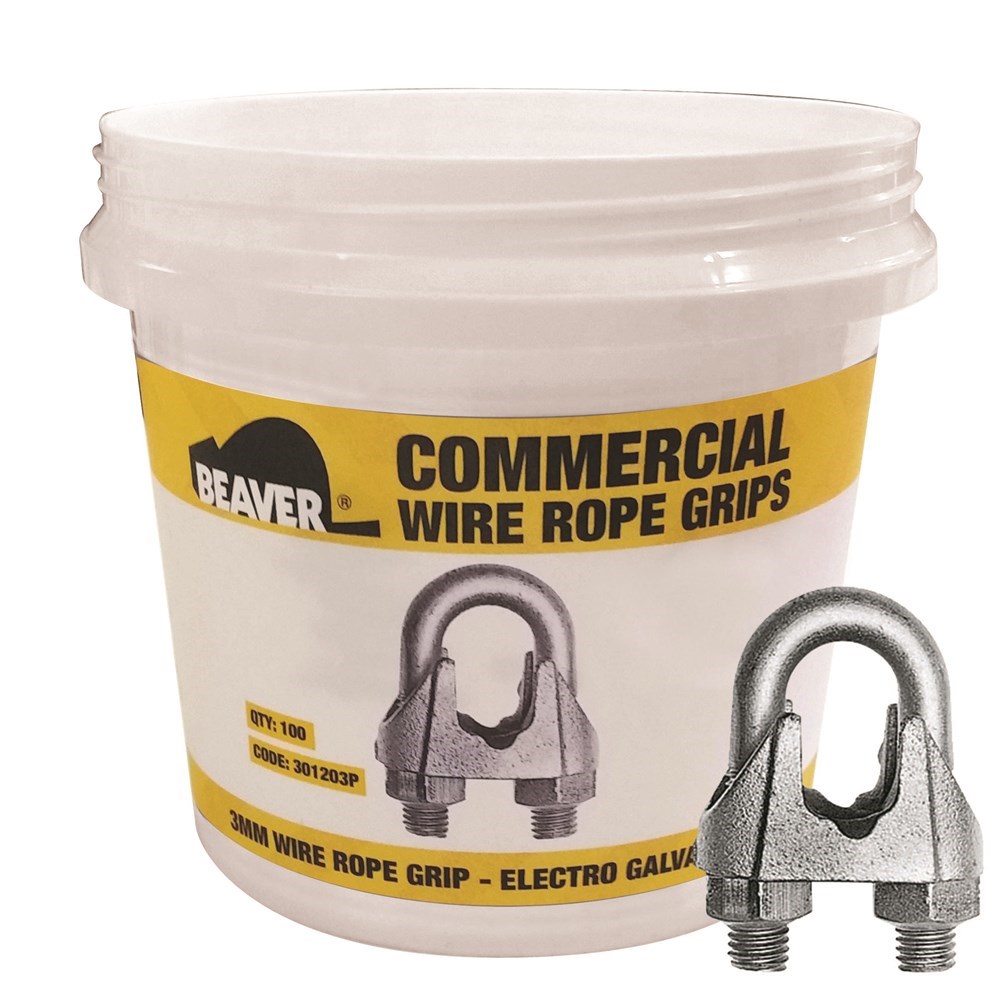

Beaver Commercial Galvanised Wire Rope Grips (Pail) 6mm
301206Pper Pail
$17.46 inc GSTTrade $15.71, save $1.75Trade accounts save 10%. Apply with your ABN
| A | 10.5mm |
| B | 12mm |
| C | 13mm |
| D | 5mm |
| H | 23mm |
| W | 24mm |
| Finish | Electro Galvanised |
| Pail QTY | 50 |
| Wire Diameter | 6mm |
About this product
Beaver Commercial Galvanised Wire Rope Grips in the 6mm size clamp the tail of a 6mm wire rope back on itself to form a secure termination. The u-bolt measures 5mm through the legs, with a 10.5mm saddle width, 12mm across B and 13mm at C. Overall the grip sits 23mm high and 24mm wide, so it stays compact on smaller ropes and fits neatly where clearance is tight.
Electro galvanised finish gives the bolts and saddle a layer of protection against surface rust in general outdoor use. These are commercial grade grips for fencing, guy wires, barriers, balustrade runs and general rope terminations. They are not suitable for lifting, so keep them off slings, hoists and anything taking a suspended load. Match the grip to the rope diameter, fit the saddle on the live side of the rope, and check the nuts are still tight after the rope has taken up tension.
Common questions
- can you use wire rope grips for lifting
- No. These Beaver commercial grips are not suitable for lifting and should only be used for static terminations like fencing and guy wires.
- what size wire rope do 6mm rope grips fit
- This size is made for 6mm diameter wire rope. Always match the grip size to the rope diameter.
- are beaver wire rope grips galvanised
- Yes, they have an electro galvanised finish, which gives the u-bolt and saddle some protection against surface rust in general outdoor use.
Full specifications
| Product code | Wire Diameter | W | C | H | A | D | B | Finish | Pail QTY |
|---|---|---|---|---|---|---|---|---|---|
| 301203P | 3mm | 19.5mm | 9mm | 17mm | 9.5mm | 4mm | 10.5mm | Electro Galvanised | 100 |
| 301205P | 5mm | 22.5mm | 11mm | 19mm | 10mm | 5mm | 11mm | Electro Galvanised | 100 |
| 301206P | 6mm | 24mm | 13mm | 23mm | 10.5mm | 5mm | 12mm | Electro Galvanised | 50 |
| 301208P | 8mm | 28mm | 15mm | 28mm | 14mm | 6mm | 14mm | Electro Galvanised | 80 |
| 301210P | 10mm | 33mm | 18.5mm | 34mm | 16mm | 8mm | 18mm | Electro Galvanised | 50 |
| 301213P | 13mm | 41mm | 23mm | 45mm | 21mm | 10mm | 22mm | Electro Galvanised | 20 |
| 301216P | 16mm | 49mm | 29.5mm | 52mm | 25mm | 12mm | 25mm | Electro Galvanised | 15 |
| 301220P | 20mm | 52mm | 32mm | 62mm | 30mm | 12mm | 28mm | Electro Galvanised | 10 |
| 301222P | 22mm | 61mm | 37mm | 68mm | 34mm | 14mm | 33mm | Electro Galvanised | 5 |
| 301225P | 25mm | 70mm | 41mm | 78mm | 39mm | 14mm | 34mm | Electro Galvanised | 5 |
