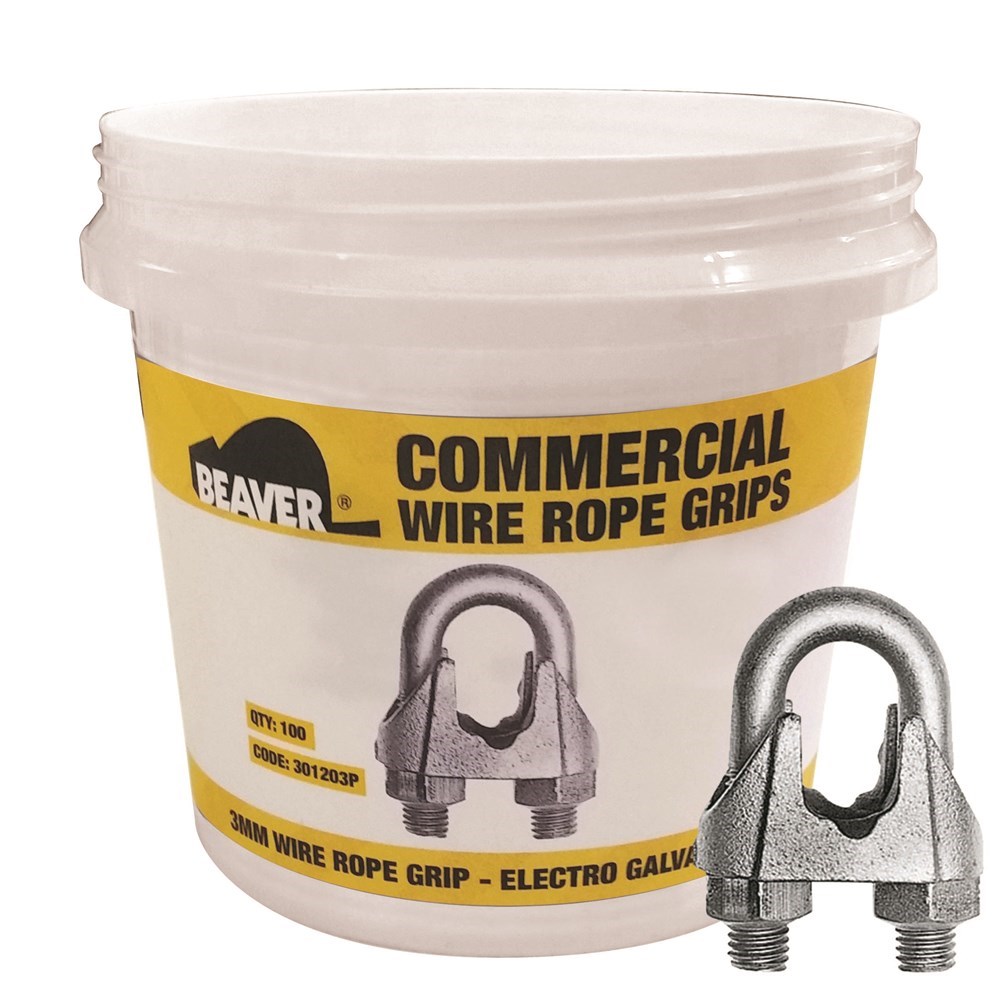

Beaver Commercial Galvanised Wire Rope Grips (Pail) 3mm
301203Pper Pail
$22.70 inc GSTTrade $20.43, save $2.27Trade accounts save 10%. Apply with your ABN
| A | 9.5mm |
| B | 10.5mm |
| C | 9mm |
| D | 4mm |
| H | 17mm |
| W | 19.5mm |
| Finish | Electro Galvanised |
| Pail QTY | 100 |
| Wire Diameter | 3mm |
About this product
Beaver Commercial Galvanised Wire Rope Grips in the 3mm size are used to form a secure termination or eye in 3mm wire rope for fencing, guy lines, balustrade runs and general tie-back work. This is the smallest end of the range, matched to fine rope where a larger grip simply will not clamp properly. The saddle measures 9.5mm across at A and 10.5mm at B, with a 9mm C dimension and 4mm U-bolt legs.
Overall the grip sits 17mm high and 19.5mm wide, so it stays tidy on light rope without fouling nearby hardware. The electro galvanised finish gives reasonable protection for outdoor use. Worth noting, these grips are not suitable for lifting, so keep them out of any rigging or load-bearing application. Fit them with the saddle on the live end of the rope and check the nuts for tension after the line takes up its initial stretch.
Common questions
- can you use wire rope grips for lifting
- No. These Beaver commercial grips are not suitable for lifting, so they should only be used for non load-bearing jobs like fencing, guy lines and tie-backs.
- what size wire rope does a 3mm grip fit
- This grip is sized for 3mm wire rope. The U-bolt legs are 4mm and the saddle measures 9.5mm at A, so it clamps fine rope correctly where a bigger grip would not.
- are galvanised wire rope grips ok outside
- The electro galvanised finish handles general outdoor exposure well enough. In harsher or coastal conditions, check the grips regularly for corrosion and nut tension.
Full specifications
| Product code | Wire Diameter | W | C | H | A | D | B | Finish | Pail QTY |
|---|---|---|---|---|---|---|---|---|---|
| 301203P | 3mm | 19.5mm | 9mm | 17mm | 9.5mm | 4mm | 10.5mm | Electro Galvanised | 100 |
| 301205P | 5mm | 22.5mm | 11mm | 19mm | 10mm | 5mm | 11mm | Electro Galvanised | 100 |
| 301206P | 6mm | 24mm | 13mm | 23mm | 10.5mm | 5mm | 12mm | Electro Galvanised | 50 |
| 301208P | 8mm | 28mm | 15mm | 28mm | 14mm | 6mm | 14mm | Electro Galvanised | 80 |
| 301210P | 10mm | 33mm | 18.5mm | 34mm | 16mm | 8mm | 18mm | Electro Galvanised | 50 |
| 301213P | 13mm | 41mm | 23mm | 45mm | 21mm | 10mm | 22mm | Electro Galvanised | 20 |
| 301216P | 16mm | 49mm | 29.5mm | 52mm | 25mm | 12mm | 25mm | Electro Galvanised | 15 |
| 301220P | 20mm | 52mm | 32mm | 62mm | 30mm | 12mm | 28mm | Electro Galvanised | 10 |
| 301222P | 22mm | 61mm | 37mm | 68mm | 34mm | 14mm | 33mm | Electro Galvanised | 5 |
| 301225P | 25mm | 70mm | 41mm | 78mm | 39mm | 14mm | 34mm | Electro Galvanised | 5 |
