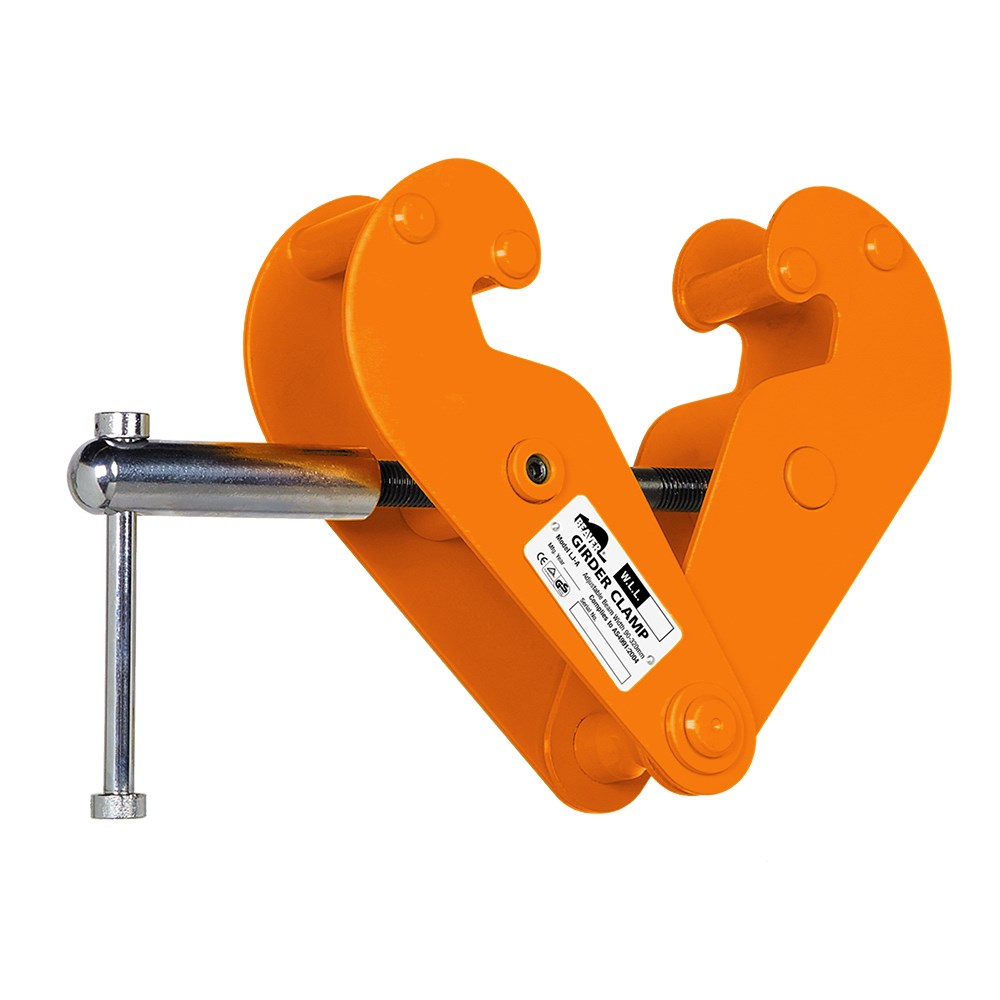

Beaver YC Industrial Girder Clamps 10t
270100Yper Each
$494.97 inc GSTTrade $445.47, save $49.50Trade accounts save 10%. Apply with your ABN
| C | 143mm |
| D | 12mm |
| E | 280mm |
| H | 40mm |
| WLL | 10t |
| A (max) | 326mm |
| G (min) | 67mm |
| Model Type | YC |
| Net Weight | 18kg |
| B (min-max) | 268-480mm |
| Colour Code | Orange |
| F (min-max) | 181-233mm |
| K (min-max) | 20-28mm |
| Working Load Limit | 10t |
| Adjustable Beam Width | 90-320mm |
About this product
The Beaver YC Industrial Girder Clamp gives you a rated 10t lifting point clamped straight onto a beam flange. It is the heavy end of the YC range, with a threaded adjustment mechanism that fits flange widths from 90mm to 320mm and a body weighing 18kg. All-steel construction throughout, with an orange colour code marking the 10t working load limit.
Key dimensions include a 326mm maximum A, 268-480mm B range, 280mm E and 40mm H, so you can check clearances before it goes up. The jaw design puts load away from the flange edge to cut stress on the beam. Every clamp is tested to 150% of the WLL, carries a serial number on the body and the stainless steel ID plate, and ships with its own test certificate. Complies to AS 4991.
Common questions
- what beam width does the Beaver 10t girder clamp fit
- It adjusts to beam flange widths from 90mm to 320mm using the threaded adjustment mechanism. Maximum A dimension is 326mm.
- is the Beaver YC girder clamp tested and certified
- Yes. Each clamp is operationally tested to 150% of the working load limit and comes with an individual test certificate, and it complies to AS 4991.
- how do I trace a Beaver girder clamp back to its test certificate
- Each clamp has a serial number stamped on the body and on the stainless steel identification plate, and that number matches the test certificate.
Full specifications
| Product Code | WLL | Colour Code | Net Weight | Adjustable Beam Width | Model Type |
|---|---|---|---|---|---|
| 270010Y | 1t | Violet | 4kg | 75-230mm | YC |
| 270020Y | 2t | Green | 5kg | 75-230mm | YC |
| 270030Y | 3t | Yellow | 9kg | 80-320mm | YC |
| 270050Y | 5t | Red | 11kg | 90-320mm | YC |
| 270100Y | 10t | Orange | 18kg | 90-320mm | YC |
| Product Code | WLL | A (max) | B (min-max) | C | D | E | F (min-max) | G (min) | H | K (min-max) |
|---|---|---|---|---|---|---|---|---|---|---|
| 270010Y | 1t | 241mm | 183-325mm | 83mm | 4mm | 220mm | 125-162mm | 48mm | 20mm | 13-17mm |
| 270020Y | 2t | 241mm | 183-325mm | 88mm | 6mm | 220mm | 125-162mm | 48mm | 22mm | 13-17mm |
| 270030Y | 3t | 335mm | 236-460mm | 112mm | 8mm | 271mm | 190-239mm | 76mm | 24mm | 25-38mm |
| 270050Y | 5t | 335mm | 244-457mm | 122mm | 10mm | 271mm | 190-239mm | 76mm | 30mm | 26-38mm |
| 270100Y | 10t | 326mm | 268-480mm | 143mm | 12mm | 280mm | 181-233mm | 67mm | 40mm | 20-28mm |
