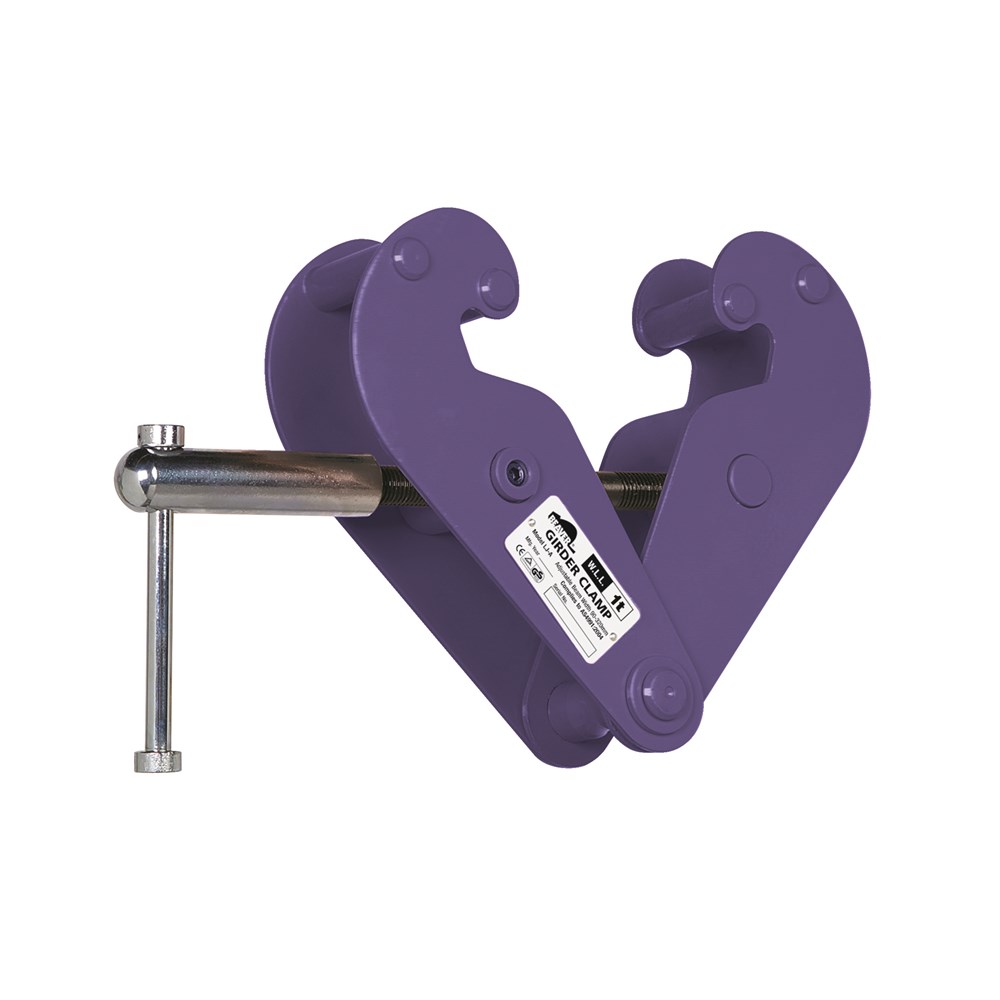

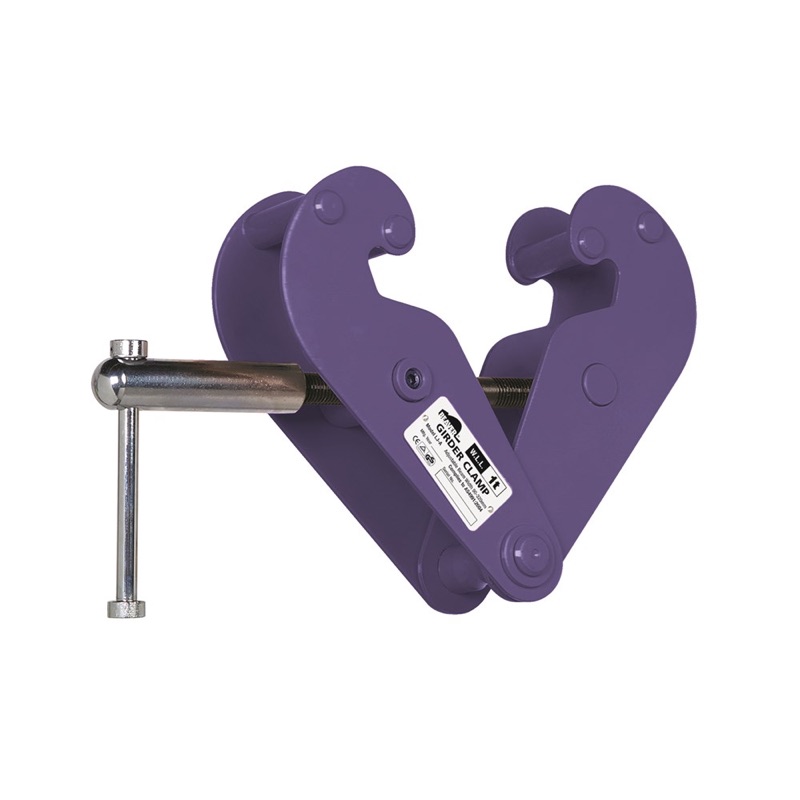

Beaver YC Industrial Girder Clamps 5t
270050Yper Each
$201.54 inc GSTTrade $181.39, save $20.15Trade accounts save 10%. Apply with your ABN
| C | 122mm |
| D | 10mm |
| E | 271mm |
| H | 30mm |
| WLL | 5t |
| A (max) | 335mm |
| G (min) | 76mm |
| Model Type | YC |
| Net Weight | 11kg |
| B (min-max) | 244-457mm |
| Colour Code | Red |
| F (min-max) | 190-239mm |
| K (min-max) | 26-38mm |
| Working Load Limit | 5t |
| Adjustable Beam Width | 90-320mm |
About this product
The Beaver YC Industrial Girder Clamp gives you a rated 5t lifting point clamped straight onto a beam or girder flange. This is the 5t size in the YC range, adjustable across beam widths from 90mm to 320mm, so it suits heavier structural steel where the smaller clamps run out of jaw. All-steel construction, 11kg net weight, and red colour coded to match international WLL lifting standards.
The threaded adjustment screws pull the clamp tight onto the flange, and the jaw design puts the load in off the flange edge to cut down on flange stress. Good for permanent hoist mounting or a temporary rigging point on site. Every clamp is operationally tested to 150% of the working load limit and comes with its own test certificate, with the serial number stamped on the body and on the stainless steel ID plate. Complies to AS 4991.
Common questions
- what beam width does the beaver 5t girder clamp fit
- Adjustable beam width is 90-320mm, with the B dimension range running 244-457mm. Set the threaded adjustment so the jaws grip the flange square.
- is the beaver YC girder clamp tested and certified
- Yes. Each clamp is operationally tested to 150% of the working load limit and supplied with an individual test certificate, and it complies to AS 4991.
- how do I check which clamp matches its test certificate
- Each clamp has a serial number stamped on the body and on the stainless steel identification plate, and that number matches the test certificate for the clamp.
Full specifications
| Product Code | WLL | Colour Code | Net Weight | Adjustable Beam Width | Model Type |
|---|---|---|---|---|---|
| 270010Y | 1t | Violet | 4kg | 75-230mm | YC |
| 270020Y | 2t | Green | 5kg | 75-230mm | YC |
| 270030Y | 3t | Yellow | 9kg | 80-320mm | YC |
| 270050Y | 5t | Red | 11kg | 90-320mm | YC |
| 270100Y | 10t | Orange | 18kg | 90-320mm | YC |
| Product Code | WLL | A (max) | B (min-max) | C | D | E | F (min-max) | G (min) | H | K (min-max) |
|---|---|---|---|---|---|---|---|---|---|---|
| 270010Y | 1t | 241mm | 183-325mm | 83mm | 4mm | 220mm | 125-162mm | 48mm | 20mm | 13-17mm |
| 270020Y | 2t | 241mm | 183-325mm | 88mm | 6mm | 220mm | 125-162mm | 48mm | 22mm | 13-17mm |
| 270030Y | 3t | 335mm | 236-460mm | 112mm | 8mm | 271mm | 190-239mm | 76mm | 24mm | 25-38mm |
| 270050Y | 5t | 335mm | 244-457mm | 122mm | 10mm | 271mm | 190-239mm | 76mm | 30mm | 26-38mm |
| 270100Y | 10t | 326mm | 268-480mm | 143mm | 12mm | 280mm | 181-233mm | 67mm | 40mm | 20-28mm |
