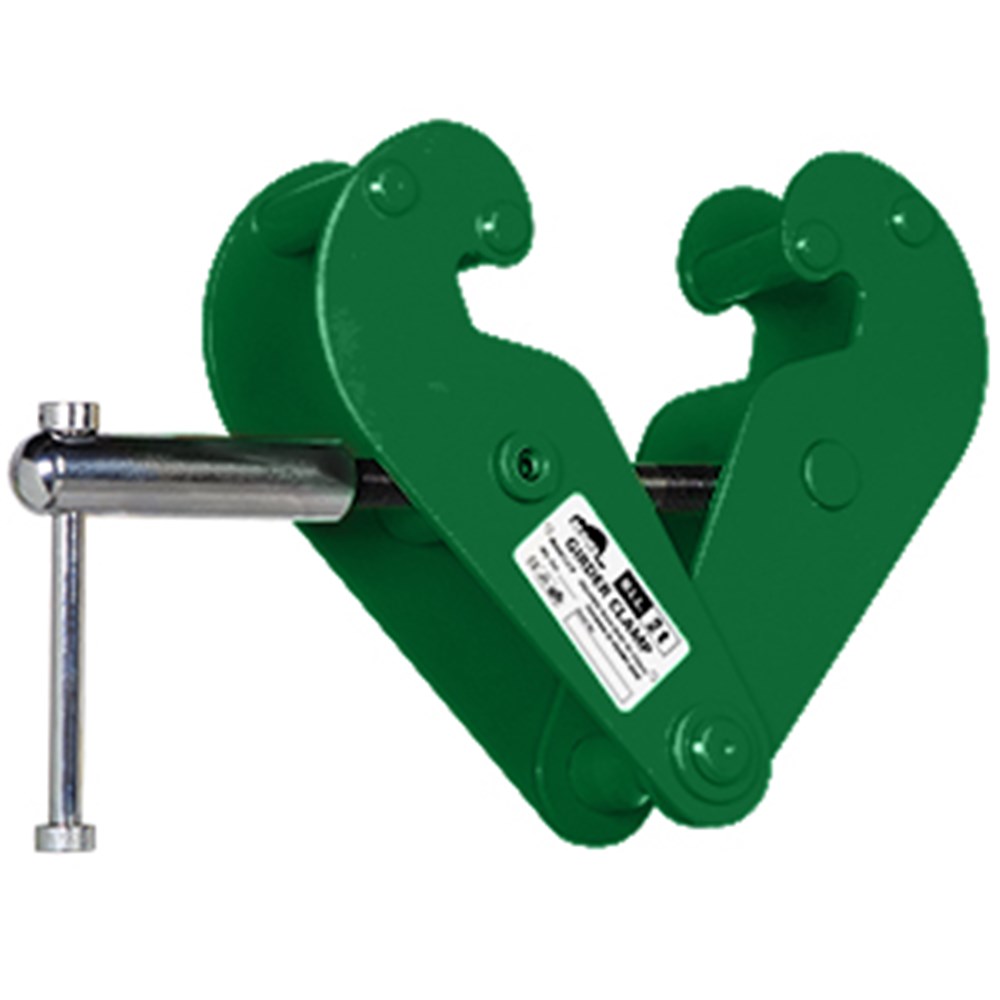

Beaver YC Industrial Girder Clamps 2t
270020Yper Each
$100.78 inc GSTTrade $90.70, save $10.08Trade accounts save 10%. Apply with your ABN
| C | 88mm |
| D | 6mm |
| E | 220mm |
| H | 22mm |
| WLL | 2t |
| A (max) | 241mm |
| G (min) | 48mm |
| Model Type | YC |
| Net Weight | 5kg |
| B (min-max) | 183-325mm |
| Colour Code | Green |
| F (min-max) | 125-162mm |
| K (min-max) | 13-17mm |
| Working Load Limit | 2t |
| Adjustable Beam Width | 75-230mm |
About this product
The Beaver YC Industrial Girder Clamp gives you a rated 2t anchor point on a steel beam in under a minute. All-steel construction with a threaded adjustment screw that clamps onto the flange and holds. This size takes flange widths from 75mm to 230mm, so it covers most standard universal beams you will strike on site. At 5kg it is still easy to carry up a ladder or hand up to the next level.
The jaw design puts the load in from the edge of the flange, which keeps stress off the flange itself. Green colour coding marks it as the 2t unit in the range. Every clamp is operationally tested to 150% of the working load limit and comes with its own test certificate, with a serial number stamped on the body and on the stainless steel ID plate for tracing. Complies to AS 4991. Good for permanent hoist mounting or a temporary rigging point.
Common questions
- What is the beam width range on the 2t Beaver girder clamp?
- It adjusts to fit flange widths from 75mm to 230mm. Check your beam flange before you head out so you know it will grip.
- Is the Beaver YC girder clamp tested and certified?
- Yes. Each clamp is operationally tested to 150% of the working load limit and supplied with an individual test certificate, and it complies to AS 4991.
- How do I match a girder clamp back to its test certificate?
- Every clamp carries a serial number stamped on the body and on the stainless steel identification plate, and that number matches the certificate.
Full specifications
| Product Code | WLL | Colour Code | Net Weight | Adjustable Beam Width | Model Type |
|---|---|---|---|---|---|
| 270010Y | 1t | Violet | 4kg | 75-230mm | YC |
| 270020Y | 2t | Green | 5kg | 75-230mm | YC |
| 270030Y | 3t | Yellow | 9kg | 80-320mm | YC |
| 270050Y | 5t | Red | 11kg | 90-320mm | YC |
| 270100Y | 10t | Orange | 18kg | 90-320mm | YC |
| Product Code | WLL | A (max) | B (min-max) | C | D | E | F (min-max) | G (min) | H | K (min-max) |
|---|---|---|---|---|---|---|---|---|---|---|
| 270010Y | 1t | 241mm | 183-325mm | 83mm | 4mm | 220mm | 125-162mm | 48mm | 20mm | 13-17mm |
| 270020Y | 2t | 241mm | 183-325mm | 88mm | 6mm | 220mm | 125-162mm | 48mm | 22mm | 13-17mm |
| 270030Y | 3t | 335mm | 236-460mm | 112mm | 8mm | 271mm | 190-239mm | 76mm | 24mm | 25-38mm |
| 270050Y | 5t | 335mm | 244-457mm | 122mm | 10mm | 271mm | 190-239mm | 76mm | 30mm | 26-38mm |
| 270100Y | 10t | 326mm | 268-480mm | 143mm | 12mm | 280mm | 181-233mm | 67mm | 40mm | 20-28mm |
