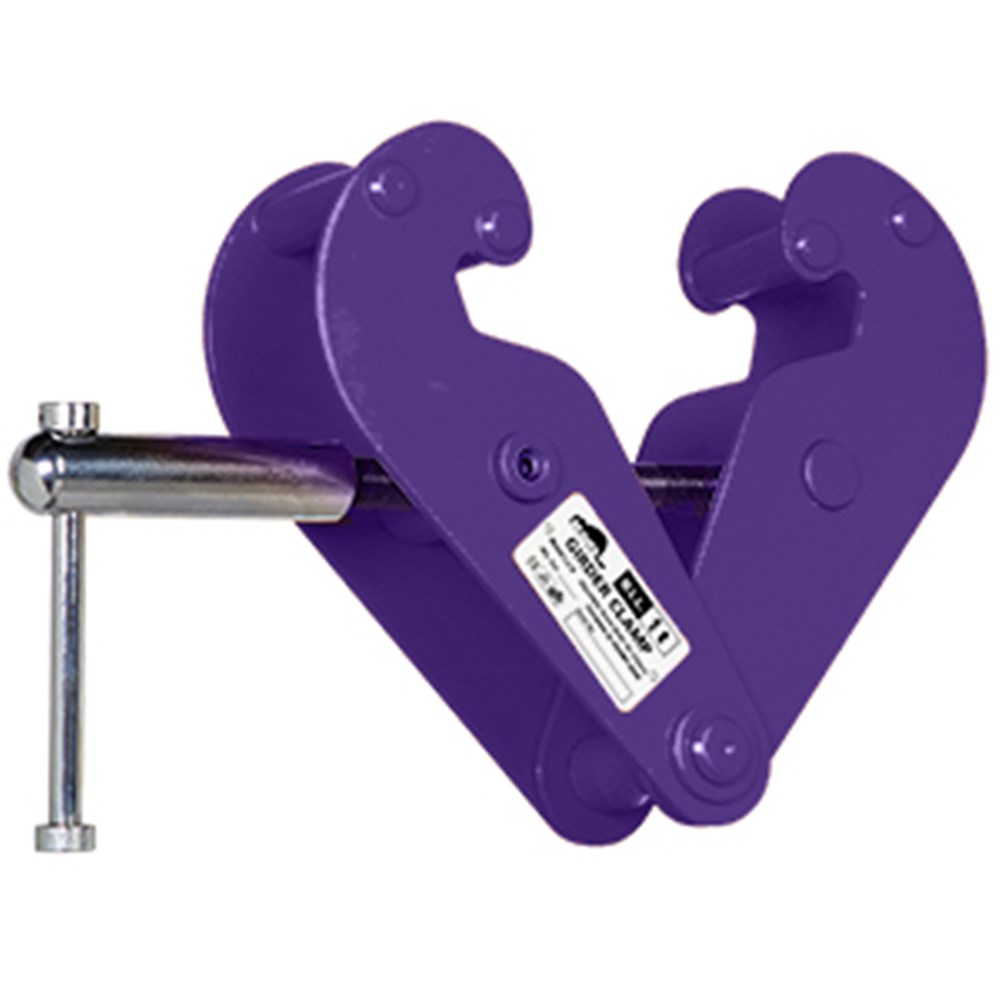

Beaver YC Industrial Girder Clamps 1t
270010Yper Each
$94.53 inc GSTTrade $85.08, save $9.45Trade accounts save 10%. Apply with your ABN
| C | 83mm |
| D | 4mm |
| E | 220mm |
| H | 20mm |
| WLL | 1t |
| A (max) | 241mm |
| G (min) | 48mm |
| Model Type | YC |
| Net Weight | 4kg |
| B (min-max) | 183-325mm |
| Colour Code | Violet |
| F (min-max) | 125-162mm |
| K (min-max) | 13-17mm |
| Working Load Limit | 1t |
| Adjustable Beam Width | 75-230mm |
About this product
The Beaver YC Industrial Girder Clamp gives you a quick anchor point on a steel beam for lifting, rigging and hoisting work. This is the 1t model, colour coded violet, with an adjustable beam width of 75 to 230mm and a net weight of 4kg. All-steel construction throughout. The threaded adjustment mechanism clamps onto the flange and the screws lock it off, so you get a secure grip for either a temporary hitch or a permanent mounting point.
Jaw design puts the load in off the flange edge, which keeps stress off the steel. Key dimensions include a 241mm maximum at A, B from 183 to 325mm, F from 125 to 162mm and a 20mm H. Each clamp is tested to 150% of the working load limit and comes with its own test certificate. The serial number is stamped on the body and on the stainless steel ID plate, so it matches straight back to that certificate. Complies to AS 4991.
Common questions
- what beam width does the beaver 1t girder clamp fit
- It adjusts to suit beam flange widths from 75 to 230mm. Maximum dimension at A is 241mm.
- is the beaver YC girder clamp tested and certified
- Yes. Every clamp is operationally tested to 150% of the working load limit and supplied with an individual test certificate, and it complies to AS 4991.
- how do i trace a beaver girder clamp back to its test certificate
- Each clamp carries a serial number stamped on the body and on the stainless steel identification plate. That number matches the test certificate for the clamp.
Full specifications
| Product Code | WLL | Colour Code | Net Weight | Adjustable Beam Width | Model Type |
|---|---|---|---|---|---|
| 270010Y | 1t | Violet | 4kg | 75-230mm | YC |
| 270020Y | 2t | Green | 5kg | 75-230mm | YC |
| 270030Y | 3t | Yellow | 9kg | 80-320mm | YC |
| 270050Y | 5t | Red | 11kg | 90-320mm | YC |
| 270100Y | 10t | Orange | 18kg | 90-320mm | YC |
| Product Code | WLL | A (max) | B (min-max) | C | D | E | F (min-max) | G (min) | H | K (min-max) |
|---|---|---|---|---|---|---|---|---|---|---|
| 270010Y | 1t | 241mm | 183-325mm | 83mm | 4mm | 220mm | 125-162mm | 48mm | 20mm | 13-17mm |
| 270020Y | 2t | 241mm | 183-325mm | 88mm | 6mm | 220mm | 125-162mm | 48mm | 22mm | 13-17mm |
| 270030Y | 3t | 335mm | 236-460mm | 112mm | 8mm | 271mm | 190-239mm | 76mm | 24mm | 25-38mm |
| 270050Y | 5t | 335mm | 244-457mm | 122mm | 10mm | 271mm | 190-239mm | 76mm | 30mm | 26-38mm |
| 270100Y | 10t | 326mm | 268-480mm | 143mm | 12mm | 280mm | 181-233mm | 67mm | 40mm | 20-28mm |
