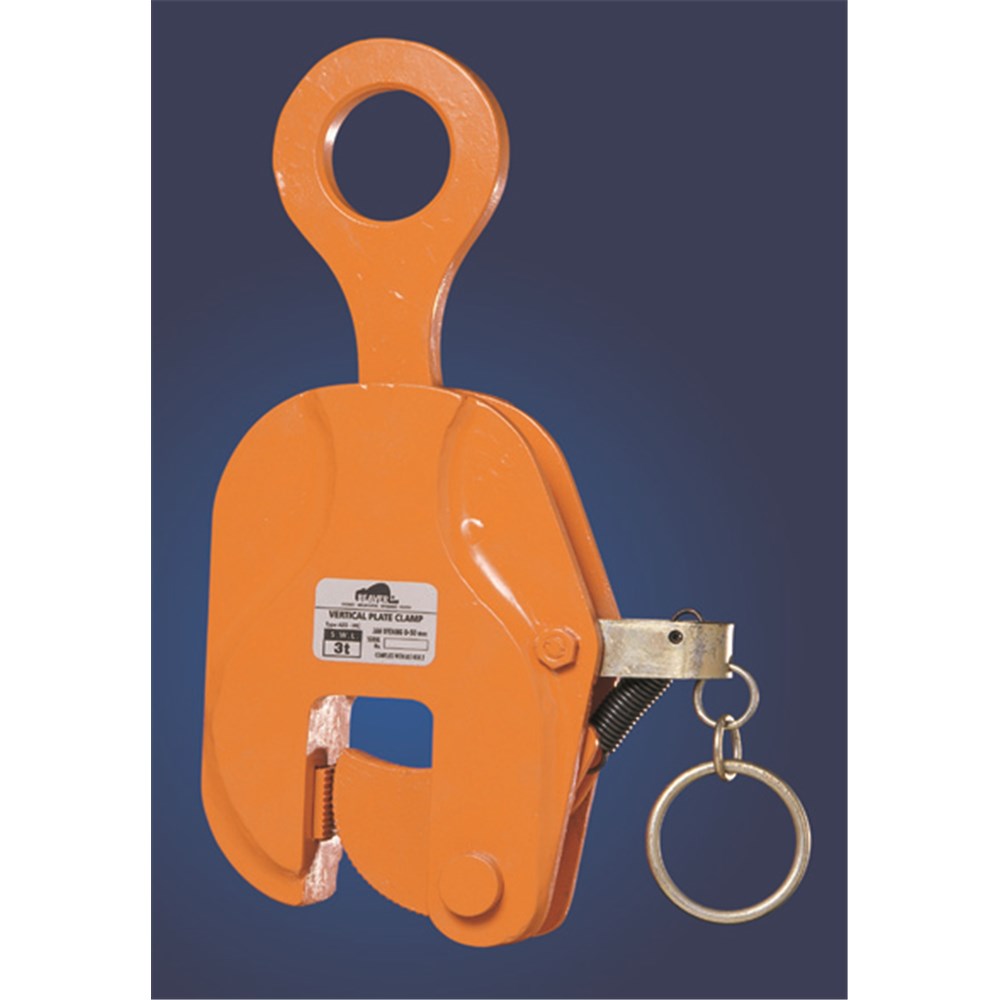

Beaver VC Vertical Plate Clamp 2t
261240per Each
$249.40 inc GSTTrade $224.46, save $24.94Trade accounts save 10%. Apply with your ABN
| WLL | 2t |
| B (mm) | 170 |
| C (mm) | 82.5 |
| D (mm) | 297 |
| E (mm) | 60 |
| Working Load Limit | 2t |
| A Jaw Openings (mm) | 0-40 |
| Net Weight Per Pair (kg) | 7.5kg/pc |
About this product
The Beaver VC Vertical Plate Clamp 2t grips steel plate for vertical lifting and turning, with a jaw opening of 0 to 40mm. That range suits mid thickness plate, so it sits between the lighter and heavier clamps in the Beaver VC line. Clamping force builds in proportion to the weight of the load, and the clamp bites from the start of the lift rather than part way through it. Each clamp weighs 7.5kg.
Body is heavy duty steel, with a drop forged and heat treated alloy steel cam and jaws for grip and service life. A spring loaded safety lock holds the jaws in place while you set up. Dimensions run 170mm across B, 82.5mm on C, 297mm on D and 60mm on E. Proof load tested at manufacture and complies to AS4991. Common work includes steel structures, crane girders and beams, and steel pipes.
Common questions
- what plate thickness does the beaver vc 2t clamp take
- The jaw opening is 0 to 40mm, so it handles steel plate up to 40mm thick.
- beaver vc vertical plate clamp 2t weight
- Each clamp weighs 7.5kg.
- is the beaver vc plate clamp certified
- It complies to AS4991 and is proof load tested at the time of manufacture.
Full specifications
| Product Code | WLL | A Jaw Openings (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Net Weight Per Pair (kg) |
|---|---|---|---|---|---|---|---|
| 261130 | 1t | 0-30 | 144 | 68 | 286 | 55 | 4.5kg/pc |
| 261240 | 2t | 0-40 | 170 | 82.5 | 297 | 60 | 7.5kg/pc |
| 261350 | 3t | 0-50 | 210 | 99.5 | 336 | 60 | 14.0kg/pc |
Questions about this equipment? Send us a message and we’ll check it against the job.
