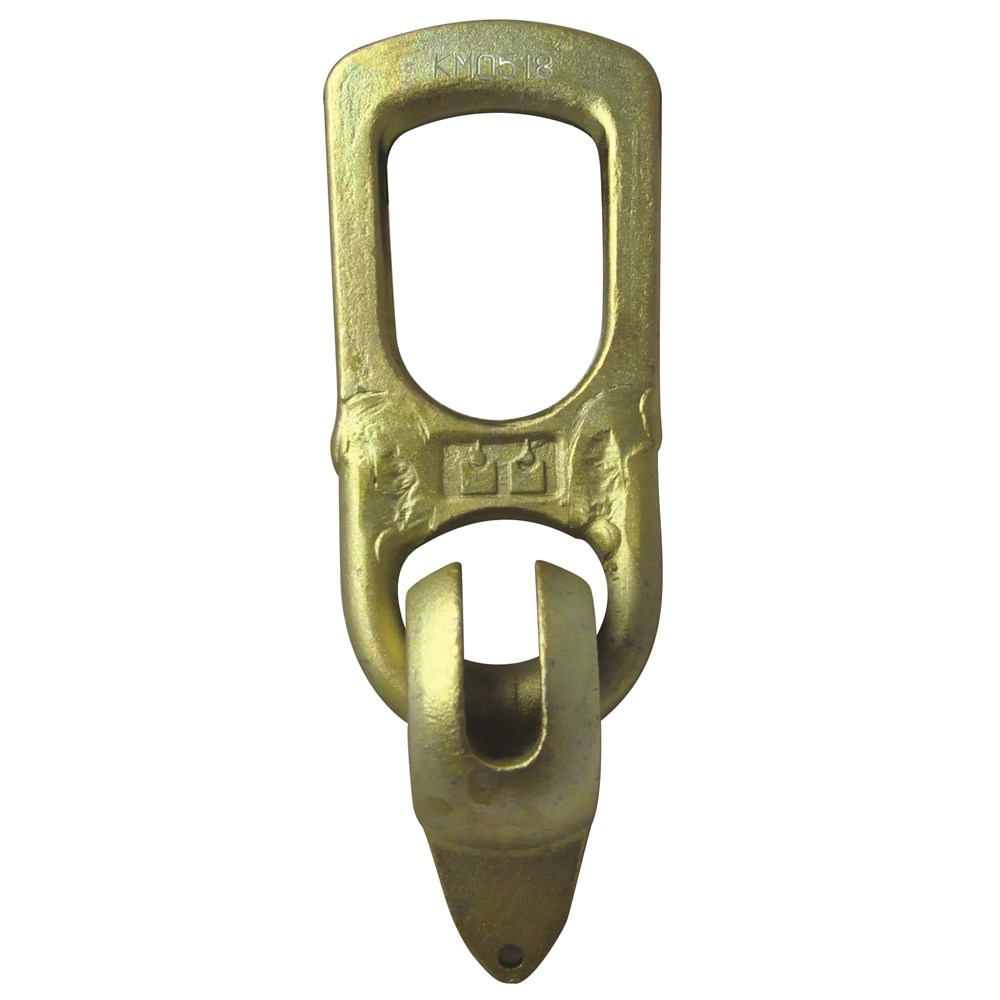

Beaver B-Alloy Concrete Lifting Clutch 10t
260100per Each
$601.44 inc GSTTrade $541.30, save $60.14Trade accounts save 10%. Apply with your ABN
| A mm | 74 |
| B mm | 90 |
| C mm | 170 |
| D mm | 112 |
| E mm | 82 |
| F mm | 160 |
| G mm | 50 |
| H mm | 338 |
| K mm | 28 |
| L mm | 386 |
| M mm | 30 |
| WLL tonne | 10 |
| Approx Weight (kg) | 9.13 |
| Working Load Limit | 10t |
About this product
The Beaver B-Alloy Concrete Lifting Clutch 10t connects to a precast pin cast into concrete panels so crews can lift them clear of the bed and stand them up. It engages while the system is under load, provided it is connected properly, and releases quickly once the panel is landed. This is the 10t working load limit size in the range, sitting at 386mm overall length, 338mm at H and 170mm across C, with an approximate weight of 9.13kg.
Each clutch is marked with the WLL, batch ID, date of manufacture and a unique serial number, and comes with a load test certificate for site records. It complies to AS3850.1. At 9.13kg it is a fair lump to swing around by hand compared with the smaller sizes, so match the clutch to the pin and panel mass rather than defaulting to the heaviest one on the truck. Check the body and jaw for wear and deformation before every shift.
Common questions
- what is the WLL of the Beaver concrete lifting clutch 10t
- It has a working load limit of 10t. The wider Beaver range runs from 1.3t up to 20t if you need a different rating.
- does the beaver lifting clutch comply with AS3850.1
- Yes, the Beaver Concrete Lifting Clutch complies to AS3850.1. It is also supplied with a load test certificate.
- how heavy is a 10t concrete lifting clutch
- The 10t size weighs approximately 9.13kg and measures 386mm overall length. Worth knowing if your crew is handling it repeatedly through a panel set.
- how do i identify a beaver concrete lifting clutch on site
- Each unit is marked with the WLL, batch ID, date of manufacture and a unique serial number, so you can trace it back to its test certificate.
Full specifications
| Product Code | WLL tonne | A mm | B mm | C mm | D mm | E mm | F mm | H mm | M mm | L mm | G mm | K mm | Approx Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 260013 | 1.3 | 33 | 42 | 82 | 70 | 44 | 73 | 160 | 11 | 185 | 18 | 12.5 | 0.91 |
| 260025 | 2.5 | 41 | 48 | 100 | 85 | 56 | 88 | 188 | 16 | 217 | 24 | 14 | 1.44 |
| 260050 | 5 | 57 | 69 | 129 | 88 | 68 | 110 | 240 | 22 | 278 | 38 | 18 | 3.24 |
| 260100 | 10 | 74 | 90 | 170 | 112 | 82 | 160 | 338 | 30 | 386 | 50 | 28 | 9.13 |
| 260200 | 20 | 111 | 112 | 227 | 132 | 106 | 180 | 429 | 42 | 497 | 74 | 32 | 20.39 |
