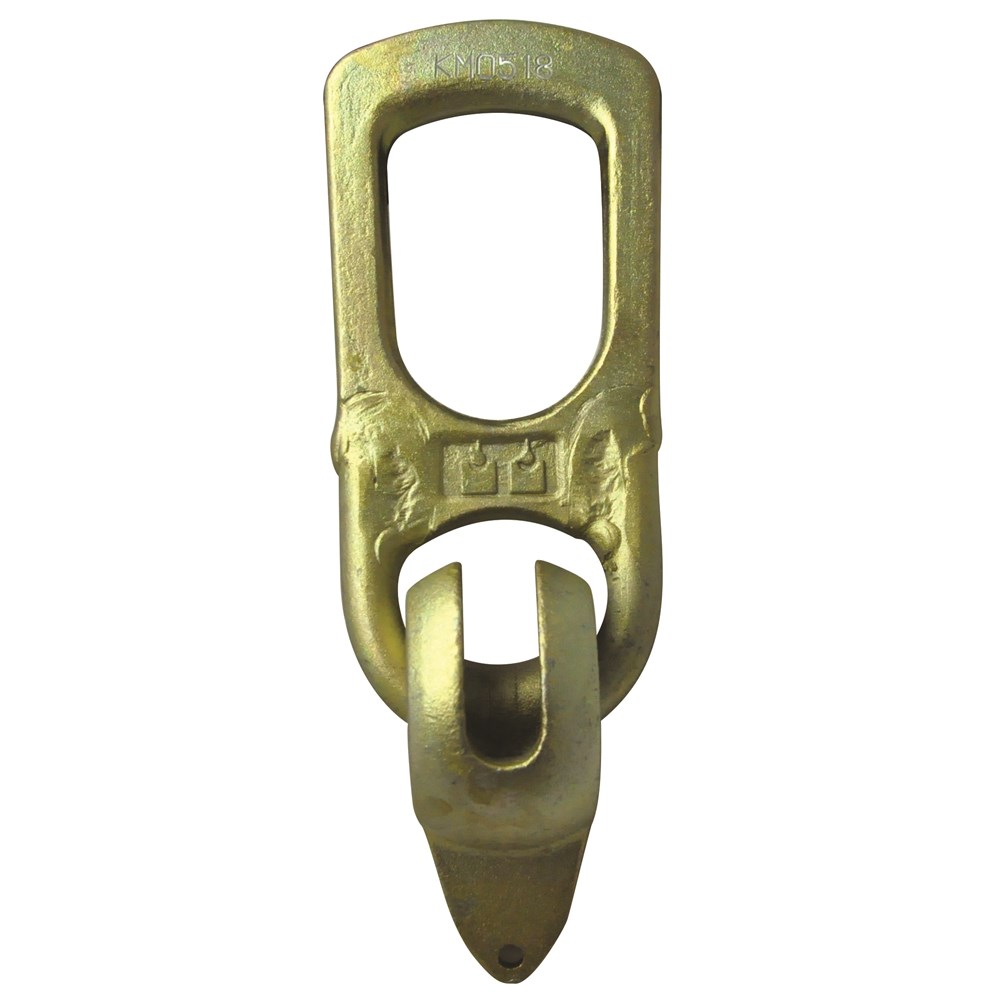

Beaver B-Alloy Concrete Lifting Clutch 5t
260050per Each
$136.49 inc GSTTrade $122.84, save $13.65Trade accounts save 10%. Apply with your ABN
| A mm | 57 |
| B mm | 69 |
| C mm | 129 |
| D mm | 88 |
| E mm | 68 |
| F mm | 110 |
| G mm | 38 |
| H mm | 240 |
| K mm | 18 |
| L mm | 278 |
| M mm | 22 |
| WLL tonne | 5 |
| Approx Weight (kg) | 3.24 |
| Working Load Limit | 5t |
About this product
The Beaver B-Alloy Concrete Lifting Clutch 5t connects to a precast pin cast into a concrete panel so the panel can be lifted, tilted and set. This is the 5 tonne size in the range, a middle option that handles heavier wall panels and slabs without the bulk of the larger clutches. It weighs around 3.24kg, with an overall length of 278mm and a jaw opening of 18mm at K.
Engagement is designed to happen under load, provided the connection is made correctly, and release is quick once the panel is landed. Each clutch is marked with the WLL, batch ID, date of manufacture and a unique serial number, and comes with a load test certificate. Complies to AS3850.1. Check the body and locking action for wear or damage before every shift.
Common questions
- what is the WLL of the Beaver 5t concrete lifting clutch
- It has a Working Load Limit of 5 tonne. The WLL is stamped on the clutch along with the batch ID, date of manufacture and serial number.
- does the Beaver concrete lifting clutch comply with AS3850.1
- Yes, it complies to AS3850.1 and is supplied with a load test certificate.
- how much does a 5t concrete lifting clutch weigh
- Around 3.24kg. Overall length is 278mm, so it is still manageable by hand on the panel face.
Full specifications
| Product Code | WLL tonne | A mm | B mm | C mm | D mm | E mm | F mm | H mm | M mm | L mm | G mm | K mm | Approx Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 260013 | 1.3 | 33 | 42 | 82 | 70 | 44 | 73 | 160 | 11 | 185 | 18 | 12.5 | 0.91 |
| 260025 | 2.5 | 41 | 48 | 100 | 85 | 56 | 88 | 188 | 16 | 217 | 24 | 14 | 1.44 |
| 260050 | 5 | 57 | 69 | 129 | 88 | 68 | 110 | 240 | 22 | 278 | 38 | 18 | 3.24 |
| 260100 | 10 | 74 | 90 | 170 | 112 | 82 | 160 | 338 | 30 | 386 | 50 | 28 | 9.13 |
| 260200 | 20 | 111 | 112 | 227 | 132 | 106 | 180 | 429 | 42 | 497 | 74 | 32 | 20.39 |
