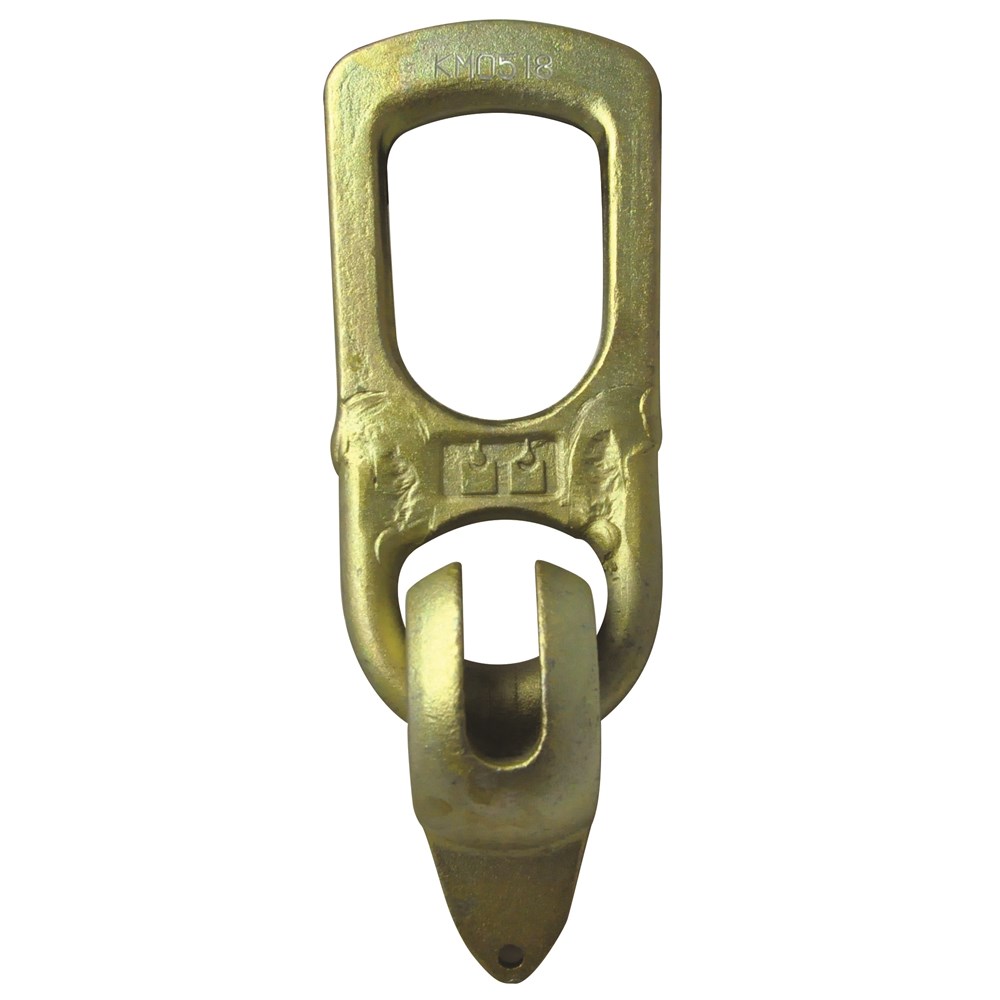

Beaver B-Alloy Concrete Lifting Clutch 2.5t
260025per Each
$55.38 inc GSTTrade $49.84, save $5.54Trade accounts save 10%. Apply with your ABN
| A mm | 41 |
| B mm | 48 |
| C mm | 100 |
| D mm | 85 |
| E mm | 56 |
| F mm | 88 |
| G mm | 24 |
| H mm | 188 |
| K mm | 14 |
| L mm | 217 |
| M mm | 16 |
| WLL tonne | 2.5 |
| Approx Weight (kg) | 1.44 |
| Working Load Limit | 2.5t |
About this product
The Beaver B-Alloy Concrete Lifting Clutch 2.5t connects to a cast-in precast pin so you can lift panels and prefabricated concrete units safely. This is the 2.5t working load limit size in the range, a mid-weight option at 1.44kg with a 217mm overall length and a 188mm body height. Jaw and throat dimensions run 41mm at A and 48mm at B, with a 24mm G opening to suit the matching pin.
It engages under load when connected correctly, so crews are not fighting the clutch on the hook while a panel is hanging. Release is quick once the lift is landed. Each clutch carries its WLL, batch ID, date of manufacture and a unique serial number, and comes with a load test certificate. Complies to AS3850.1. Check the markings and the jaw for wear or deformation before every shift.
Common questions
- What is the WLL of the 2.5t Beaver concrete lifting clutch?
- It has a working load limit of 2.5 tonne. The WLL is stamped on the clutch along with the batch ID, date of manufacture and serial number.
- What standard does the Beaver concrete lifting clutch comply with?
- It complies to AS3850.1 and is supplied with a load test certificate.
- Can you release the clutch while it is under load?
- It is designed to engage easily while the system is under load, provided it is connected correctly, and releases quickly once the lift is complete and landed.
Full specifications
| Product Code | WLL tonne | A mm | B mm | C mm | D mm | E mm | F mm | H mm | M mm | L mm | G mm | K mm | Approx Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 260013 | 1.3 | 33 | 42 | 82 | 70 | 44 | 73 | 160 | 11 | 185 | 18 | 12.5 | 0.91 |
| 260025 | 2.5 | 41 | 48 | 100 | 85 | 56 | 88 | 188 | 16 | 217 | 24 | 14 | 1.44 |
| 260050 | 5 | 57 | 69 | 129 | 88 | 68 | 110 | 240 | 22 | 278 | 38 | 18 | 3.24 |
| 260100 | 10 | 74 | 90 | 170 | 112 | 82 | 160 | 338 | 30 | 386 | 50 | 28 | 9.13 |
| 260200 | 20 | 111 | 112 | 227 | 132 | 106 | 180 | 429 | 42 | 497 | 74 | 32 | 20.39 |
