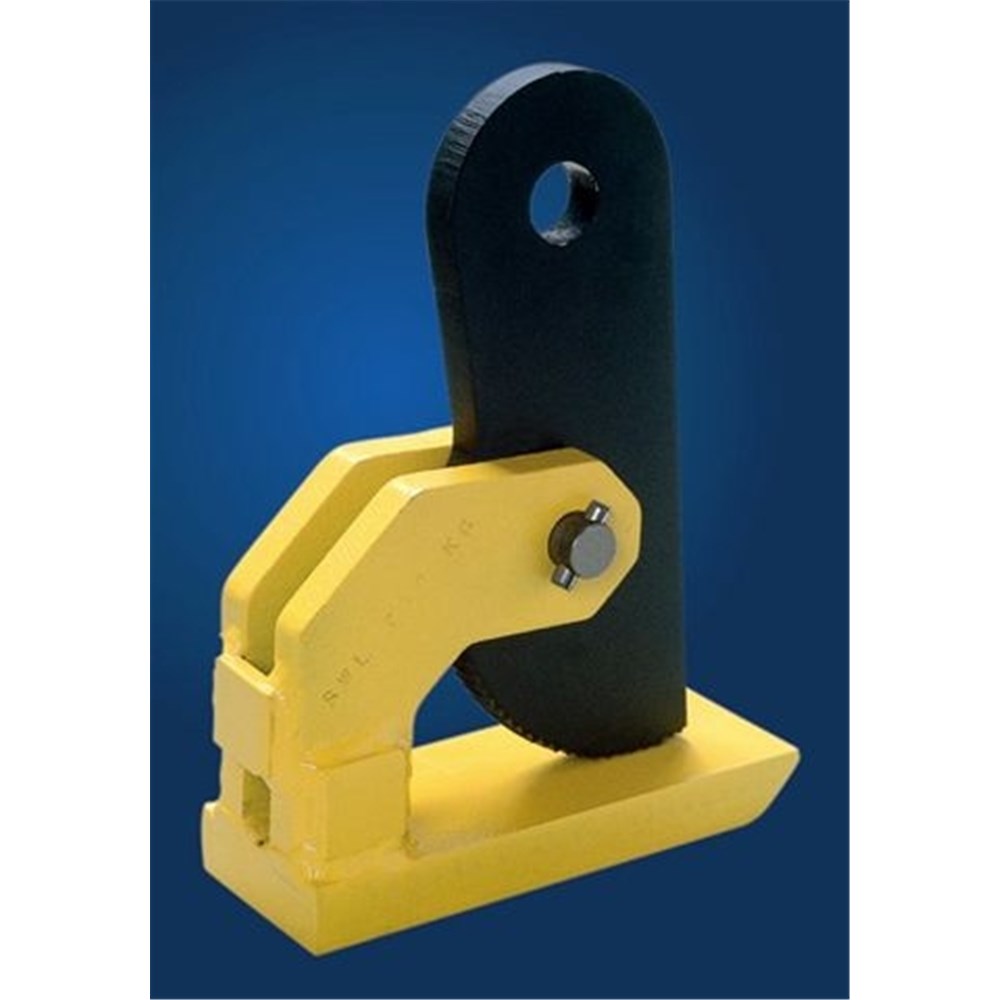

Beaver CQ Horizontal Plate Clamps 5t
250500Aper Pair
$589.83 Trade inc GST$655.37 without a trade accountTrade accounts save 10% — apply with your ABN
| A | 0-60mm |
| C | 130mm |
| D | 315mm |
| E | 40mm |
| B (max) | 260mm |
| Model Type | CQ |
| WLL (per pair) | 5t |
| Jaw Openings (Max) | 60mm |
| Working Load Limit | 5t |
| Net Weight (per pair) | 27.6kg |
Full specifications
| Product Code | WLL (per pair) | Jaw Openings (Max) | Model Type | A | B (max) | C | D | E | Net Weight (per pair) |
|---|---|---|---|---|---|---|---|---|---|
| 250150A | 1.5t | 50mm | CQ | 0-50mm | 127mm | 100mm | 218mm | 30mm | 8.2kg |
| 250300A | 3t | 50mm | CQ | 0-50mm | 220mm | 110mm | 270mm | 36mm | 15kg |
| 250500A | 5t | 60mm | CQ | 0-60mm | 260mm | 130mm | 315mm | 40mm | 27.6kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
