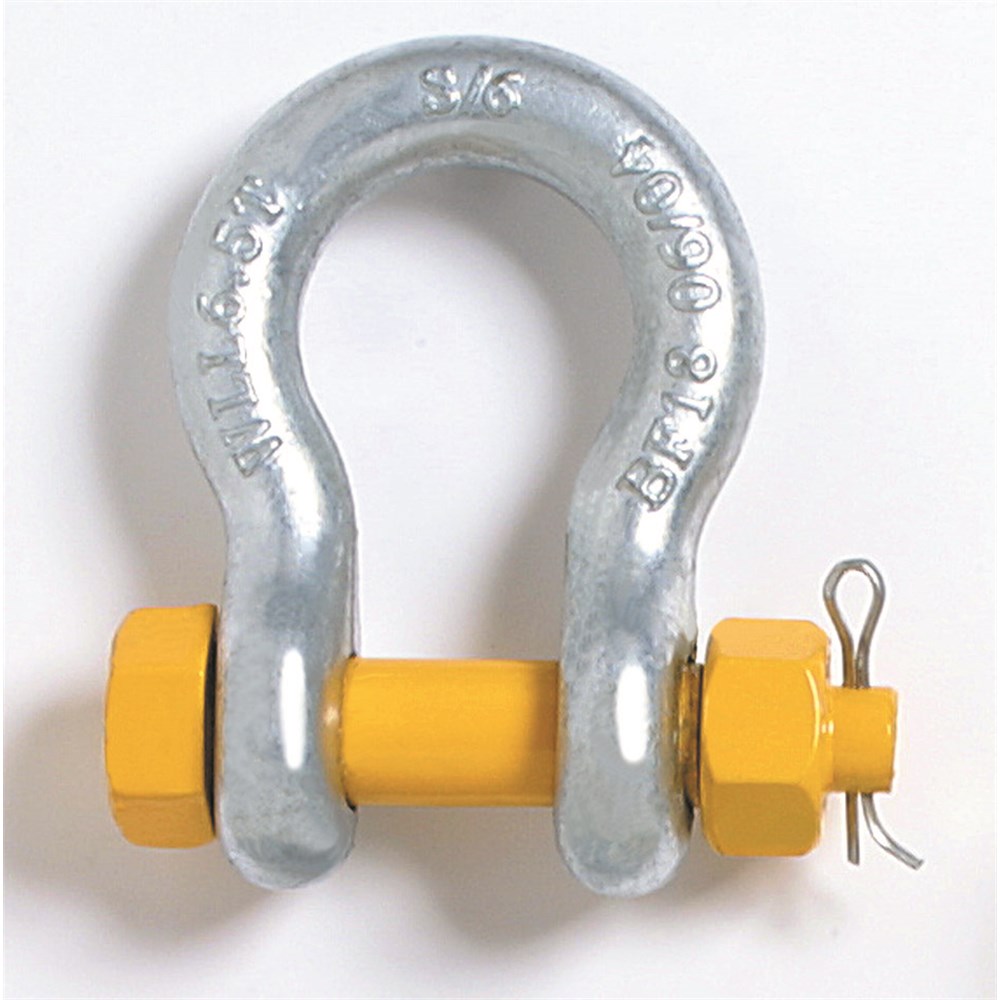

Beaver Grade S Safety Pin Bow Shackle 35t
244351per Each
$344.72 inc GSTTrade $310.25, save $34.47Trade accounts save 10%. Apply with your ABN
| WLL | 35t |
| Size | 51mm x 57mm |
| Type | Grade S |
| Shape | Bow |
| Weight | 20.65kg |
| Diameter | 51mm |
| Closing Method | Safety Pin |
| Inside Width (W) | 83mm |
| Pin Diameter (D) | 57mm |
| Width of Bow (B) | 146mm |
| Diameter Boss (F) | 127mm |
| Inside Length (L) | 197mm |
| Working Load Limit | 35t |
About this product
The Beaver Grade S Safety Pin Bow Shackle 35t is a heavy lift shackle for permanent or long-term connections where the load can shift and rotate the pin. At 35t working load limit it sits near the top of the range, with a 51mm body, a 57mm pin and a wide 83mm inside jaw that takes bulky slings, thimbles and plate lugs.
The bolt, nut and split pin arrangement keeps the pin captive, so it stays put through rigging that is left standing for months. The bow measures 146mm across with a 197mm inside length, and the whole shackle weighs 20.65kg, so plan the lift and the handling. Hot dip galvanised for corrosion protection, proof tested, and marked with WLL, grade, size and batch ID. Complies to AS 2741, with test certificates available on request.
Common questions
- What is the WLL of the Beaver 35t bow shackle?
- The working load limit is 35t. It is marked on the shackle along with the quality grade, size and batch ID.
- What size pin and jaw does the 35t shackle have?
- The pin diameter is 57mm and the body diameter is 51mm, with an 83mm inside width and 197mm inside length.
- Safety pin or screw pin shackle, which one do I need?
- Go with the safety pin version for long-term or permanent rigging, or any job where the load may slide along the pin and turn it.
Full specifications
| Product Code | Size | WLL | Type | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|
| 244313 | 13mm x 16mm | 2t | Grade S | Bow | Safety Pin | 0.44kg |
| 244316 | 16mm x 19mm | 3.2t | Grade S | Bow | Safety Pin | 0.79kg |
| 244319 | 19mm x 22mm | 4.7t | Grade S | Bow | Safety Pin | 1.26kg |
| 244322 | 22mm x 25mm | 6.5t | Grade S | Bow | Safety Pin | 1.88kg |
| 244325 | 25mm x 29mm | 8.5t | Grade S | Bow | Safety Pin | 2.78kg |
| 244329 | 29mm x 32mm | 9.5t | Grade S | Bow | Safety Pin | 3.87kg |
| 244332 | 32mm x 35mm | 12t | Grade S | Bow | Safety Pin | 5.26kg |
| 244335 | 35mm x 38mm | 13.5t | Grade S | Bow | Safety Pin | 6.94kg |
| 244338 | 38mm x 41mm | 17t | Grade S | Bow | Safety Pin | 8.79kg |
| 244345 | 45mm x 51mm | 25t | Grade S | Bow | Safety Pin | 14.99kg |
| 244351 | 51mm x 57mm | 35t | Grade S | Bow | Safety Pin | 20.65kg |
| 244357 | 57mm x 63mm | 45t | Grade S | Bow | Safety Pin | 32.5kg |
| 244363 | 63mm x 70mm | 55t | Grade S | Bow | Safety Pin | 41.05kg |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Width of Bow (B) | Diameter Boss (F) |
|---|---|---|---|---|---|---|---|
| 244313 | 13mm x 16mm | 13mm | 16mm | 21mm | 48mm | 33mm | 33mm |
| 244316 | 16mm x 19mm | 16mm | 19mm | 27mm | 61mm | 43mm | 40mm |
| 244319 | 19mm x 22mm | 19mm | 22mm | 32mm | 72mm | 51mm | 48mm |
| 244322 | 22mm x 25mm | 22mm | 25mm | 37mm | 84mm | 58mm | 54mm |
| 244325 | 25mm x 29mm | 25mm | 29mm | 43mm | 95mm | 68mm | 60mm |
| 244329 | 29mm x 32mm | 29mm | 32mm | 46mm | 108mm | 74mm | 67mm |
| 244332 | 32mm x 35mm | 32mm | 35mm | 52mm | 119mm | 83mm | 76mm |
| 244335 | 35mm x 38mm | 35mm | 38mm | 57mm | 133mm | 92mm | 84mm |
| 244338 | 38mm x 41mm | 38mm | 41mm | 60mm | 146mm | 98mm | 92mm |
| 244345 | 45mm x 51mm | 45mm | 51mm | 73mm | 178mm | 127mm | 110mm |
| 244351 | 51mm x 57mm | 51mm | 57mm | 83mm | 197mm | 146mm | 127mm |
| 244357 | 57mm x 63mm | 57mm | 63mm | 97mm | 218mm | 156mm | 136mm |
| 244363 | 63mm x 70mm | 63mm | 70mm | 105mm | 267mm | 184mm | 152mm |
Questions about this equipment? Send us a message and we’ll check it against the job.
