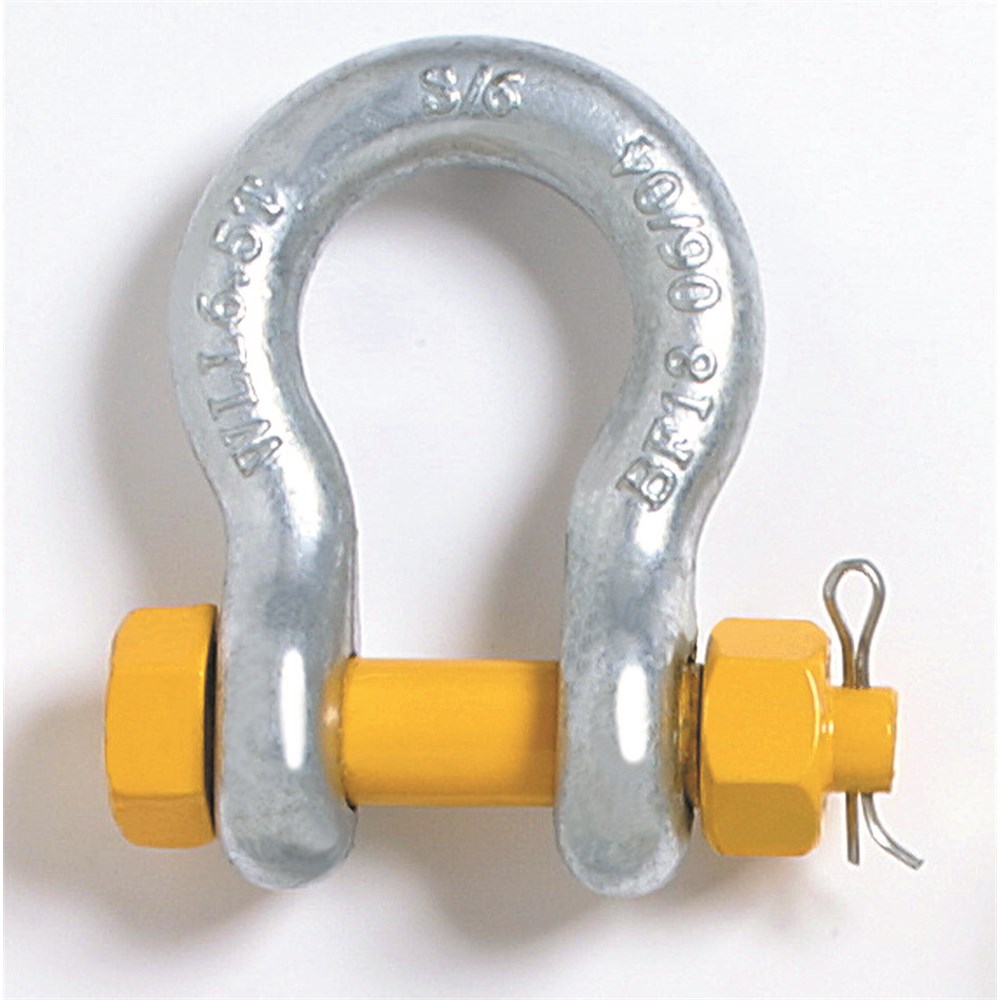

Beaver Grade S Safety Pin Bow Shackle 17t
244338per Each
$120.88 inc GSTTrade $108.79, save $12.09Trade accounts save 10%. Apply with your ABN
| WLL | 17t |
| Size | 38mm x 41mm |
| Type | Grade S |
| Shape | Bow |
| Weight | 8.79kg |
| Diameter | 38mm |
| Closing Method | Safety Pin |
| Inside Width (W) | 60mm |
| Pin Diameter (D) | 41mm |
| Width of Bow (B) | 98mm |
| Diameter Boss (F) | 92mm |
| Inside Length (L) | 146mm |
| Working Load Limit | 17t |
About this product
The Beaver Grade S Safety Pin Bow Shackle 17t is a heavy lift shackle for rigging jobs where the connection stays in place for the long haul. At 17t working load limit it sits near the top of the range, with a 38mm body, a 41mm pin and a 98mm bow width to take multi-leg slings without crowding. Inside length is 146mm and inside width 60mm, so there is room for thick eyes and big thimbles. It weighs 8.79kg, which is worth knowing before you send one up.
The bolt, nut and split pin arrangement means it will not back off if the load shifts and rotates the pin, so it suits semi-permanent set-ups as well as day to day lifting and towing. Grade S steel gives the strength, and the hot dip galvanised finish handles weather and site exposure. Each shackle is marked with WLL, grade, size and batch ID, proof tested, and complies to AS 2741.
Common questions
- what is the WLL of a 38mm bow shackle
- This Beaver Grade S bow shackle is rated at a 17t working load limit, with a 38mm body diameter and 41mm pin diameter.
- safety pin shackle vs screw pin shackle
- A safety pin shackle uses a bolt, nut and split pin, so it will not unscrew if the load slides and rotates the pin. Screw pin types suit short term work, while this one is built for long-term or permanent applications.
- is the beaver 17t shackle galvanised
- Yes, it is hot dip galvanised for corrosion protection, which makes it suitable for outdoor and exposed site work.
Full specifications
| Product Code | Size | WLL | Type | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|
| 244313 | 13mm x 16mm | 2t | Grade S | Bow | Safety Pin | 0.44kg |
| 244316 | 16mm x 19mm | 3.2t | Grade S | Bow | Safety Pin | 0.79kg |
| 244319 | 19mm x 22mm | 4.7t | Grade S | Bow | Safety Pin | 1.26kg |
| 244322 | 22mm x 25mm | 6.5t | Grade S | Bow | Safety Pin | 1.88kg |
| 244325 | 25mm x 29mm | 8.5t | Grade S | Bow | Safety Pin | 2.78kg |
| 244329 | 29mm x 32mm | 9.5t | Grade S | Bow | Safety Pin | 3.87kg |
| 244332 | 32mm x 35mm | 12t | Grade S | Bow | Safety Pin | 5.26kg |
| 244335 | 35mm x 38mm | 13.5t | Grade S | Bow | Safety Pin | 6.94kg |
| 244338 | 38mm x 41mm | 17t | Grade S | Bow | Safety Pin | 8.79kg |
| 244345 | 45mm x 51mm | 25t | Grade S | Bow | Safety Pin | 14.99kg |
| 244351 | 51mm x 57mm | 35t | Grade S | Bow | Safety Pin | 20.65kg |
| 244357 | 57mm x 63mm | 45t | Grade S | Bow | Safety Pin | 32.5kg |
| 244363 | 63mm x 70mm | 55t | Grade S | Bow | Safety Pin | 41.05kg |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Width of Bow (B) | Diameter Boss (F) |
|---|---|---|---|---|---|---|---|
| 244313 | 13mm x 16mm | 13mm | 16mm | 21mm | 48mm | 33mm | 33mm |
| 244316 | 16mm x 19mm | 16mm | 19mm | 27mm | 61mm | 43mm | 40mm |
| 244319 | 19mm x 22mm | 19mm | 22mm | 32mm | 72mm | 51mm | 48mm |
| 244322 | 22mm x 25mm | 22mm | 25mm | 37mm | 84mm | 58mm | 54mm |
| 244325 | 25mm x 29mm | 25mm | 29mm | 43mm | 95mm | 68mm | 60mm |
| 244329 | 29mm x 32mm | 29mm | 32mm | 46mm | 108mm | 74mm | 67mm |
| 244332 | 32mm x 35mm | 32mm | 35mm | 52mm | 119mm | 83mm | 76mm |
| 244335 | 35mm x 38mm | 35mm | 38mm | 57mm | 133mm | 92mm | 84mm |
| 244338 | 38mm x 41mm | 38mm | 41mm | 60mm | 146mm | 98mm | 92mm |
| 244345 | 45mm x 51mm | 45mm | 51mm | 73mm | 178mm | 127mm | 110mm |
| 244351 | 51mm x 57mm | 51mm | 57mm | 83mm | 197mm | 146mm | 127mm |
| 244357 | 57mm x 63mm | 57mm | 63mm | 97mm | 218mm | 156mm | 136mm |
| 244363 | 63mm x 70mm | 63mm | 70mm | 105mm | 267mm | 184mm | 152mm |
Questions about this equipment? Send us a message and we’ll check it against the job.
