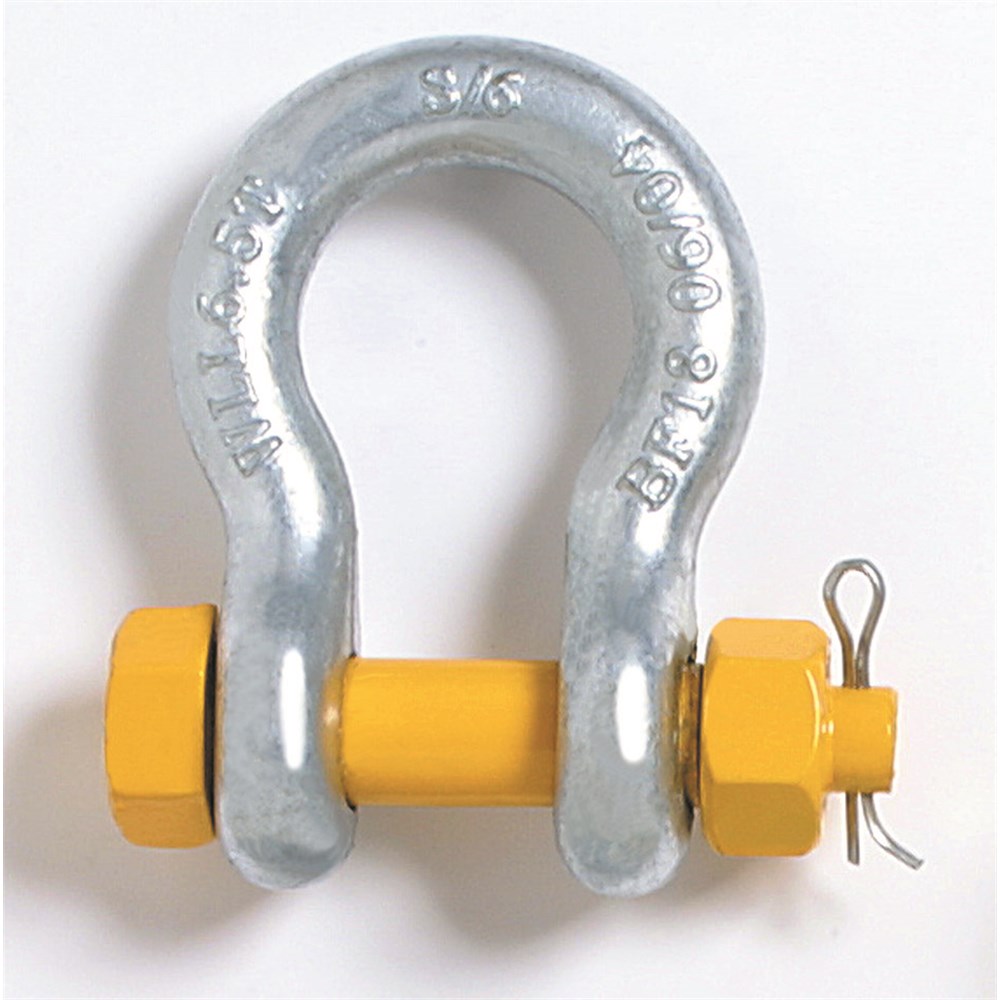

Beaver Grade S Safety Pin Bow Shackle 13.5t

About this product

The Beaver Grade S Safety Pin Bow Shackle 13.5t is a heavy lift shackle for jobs where the pin needs to stay put, held by a bolt, nut and cotter pin rather than a screw thread. At 35mm x 38mm it sits well up the range, carrying a 13.5t working load limit with a 38mm pin diameter and a 35mm body. Inside width is 57mm and inside length 133mm, so there is room for thicker slings and multiple legs. It weighs 6.94kg, so expect to handle it with both hands.

Safety pin closure makes it the pick for long term or permanent rigging, or anywhere the load may slide and rotate the pin. Hot dip galvanised finish handles outdoor and coastal exposure. Grade S gives the strength needed for lifting and towing work, and each shackle is marked with WLL, quality grade, size and batch ID or date of manufacture. Proof tested to the Australian Standard and complies to AS 2741, with test certificates available on request.
