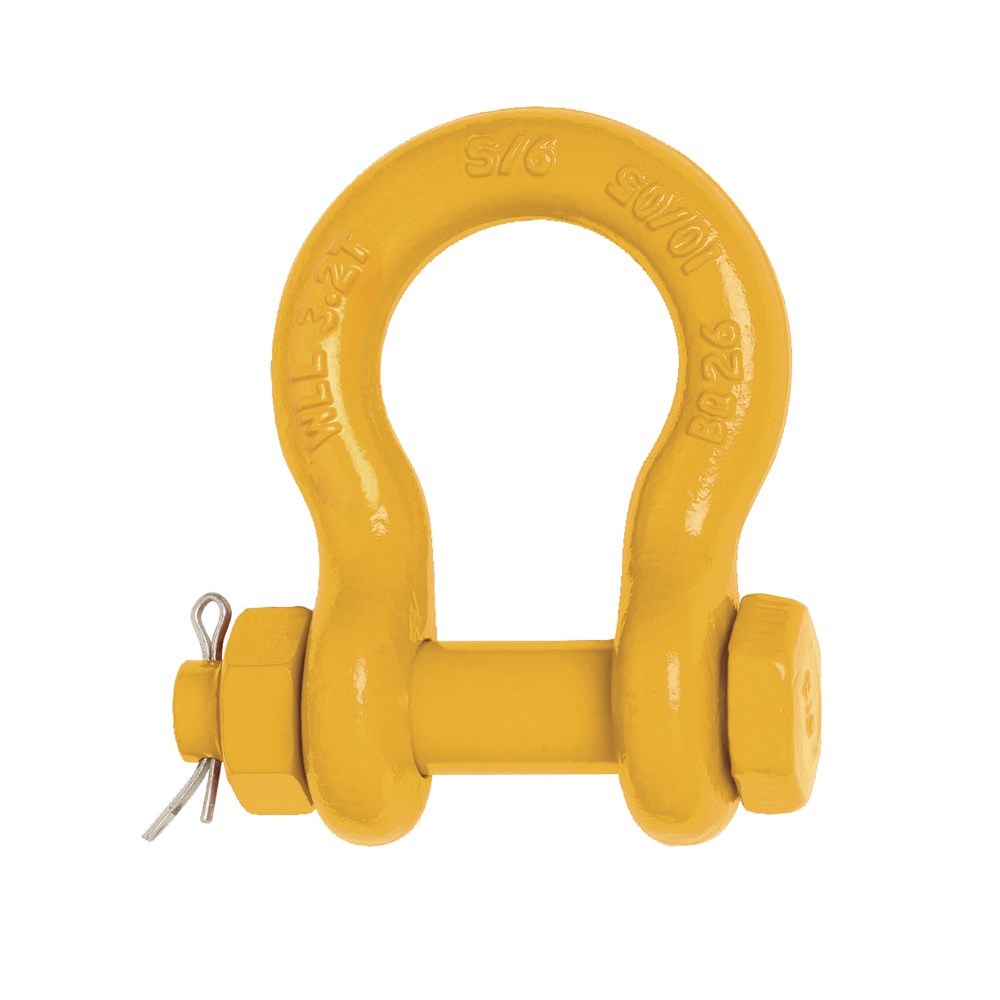

Beaver Colour Coded Safety Pin Bow Shackles 6.5t
244322Mper Each
$24.81 inc GSTTrade $22.33, save $2.48Trade accounts save 10%. Apply with your ABN
| WLL | 6.5t |
| Size | 22mm x 25mm |
| Type | Grade S |
| Shape | Bow |
| Weight | 1.88kg |
| Diameter | 22mm |
| Closing Method | Safety Pin |
| Shackle Colour | Brown |
| Inside Width (W) | 37mm |
| Pin Diameter (D) | 25mm |
| Width of Bow (B) | 58mm |
| Diameter Boss (F) | 554mm |
| Inside Length (L) | 84mm |
| Working Load Limit | 6.5t |
About this product
The Beaver Colour Coded Safety Pin Bow Shackle in 6.5t is the mid-weight pick in the range, sized 22mm x 25mm with a 22mm body and 25mm pin. Brown colour coding makes the 6.5t rating easy to spot in a bin of mixed gear, so matching it to the rest of your rigging takes a glance rather than a read. Grade S through and through, and it complies to AS 2741.
The bolt, nut and cotter setup suits long-term or permanent rigs, and any job where the load can slide on the pin and turn it. Inside width is 37mm, inside length 84mm, bow width 58mm, giving room for multiple sling legs or a chunky thimble. At 1.88kg it is still easy enough to handle up high. Each shackle carries the WLL, grade, size and batch ID stamped on it.
Common questions
- what is the WLL of a 22mm bow shackle
- This Beaver bow shackle is rated to a 6.5t working load limit, with a 22mm body diameter and 25mm pin.
- beaver shackle colour code 6.5t
- The 6.5t size is brown. Beaver colour codes these shackles to international WLL lifting standards so you can match them up with other lifting components at a glance.
- safety pin shackle vs screw pin shackle
- A safety pin shackle uses a bolt, nut and cotter, so it is the better option for long-term or permanent setups and where the load can slide on the pin and rotate it.
Full specifications
| Product Code | Size | WLL | Shackle Colour | Type | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|---|
| 244313M | 13mm x 16mm | 2t | Green | Grade S | Bow | Safety Pin | 0.44kg |
| 244316M | 16mm x 19mm | 3.2t | Yellow | Grade S | Bow | Safety Pin | 0.79kg |
| 244319M | 19mm x 22mm | 4.7t | Grey | Grade S | Bow | Safety Pin | 1.26kg |
| 244322M | 22mm x 25mm | 6.5t | Brown | Grade S | Bow | Safety Pin | 1.88kg |
| 244325M | 25mm x 29mm | 8.5t | Blue | Grade S | Bow | Safety Pin | 2.78kg |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Width of Bow (B) | Diameter Boss (F) |
|---|---|---|---|---|---|---|---|
| 244313M | 13mm x 16mm | 13mm | 16mm | 21mm | 48mm | 33mm | 33mm |
| 244316M | 16mm x 19mm | 16mm | 19mm | 27mm | 61mm | 43mm | 40mm |
| 244319M | 19mm x 22mm | 19mm | 22mm | 32mm | 72mm | 51mm | 48mm |
| 244322M | 22mm x 25mm | 22mm | 25mm | 37mm | 84mm | 58mm | 554mm |
| 244325M | 25mm x 29mm | 25mm | 29mm | 43mm | 95mm | 68mm | 60mm |
Questions about this equipment? Send us a message and we’ll check it against the job.
