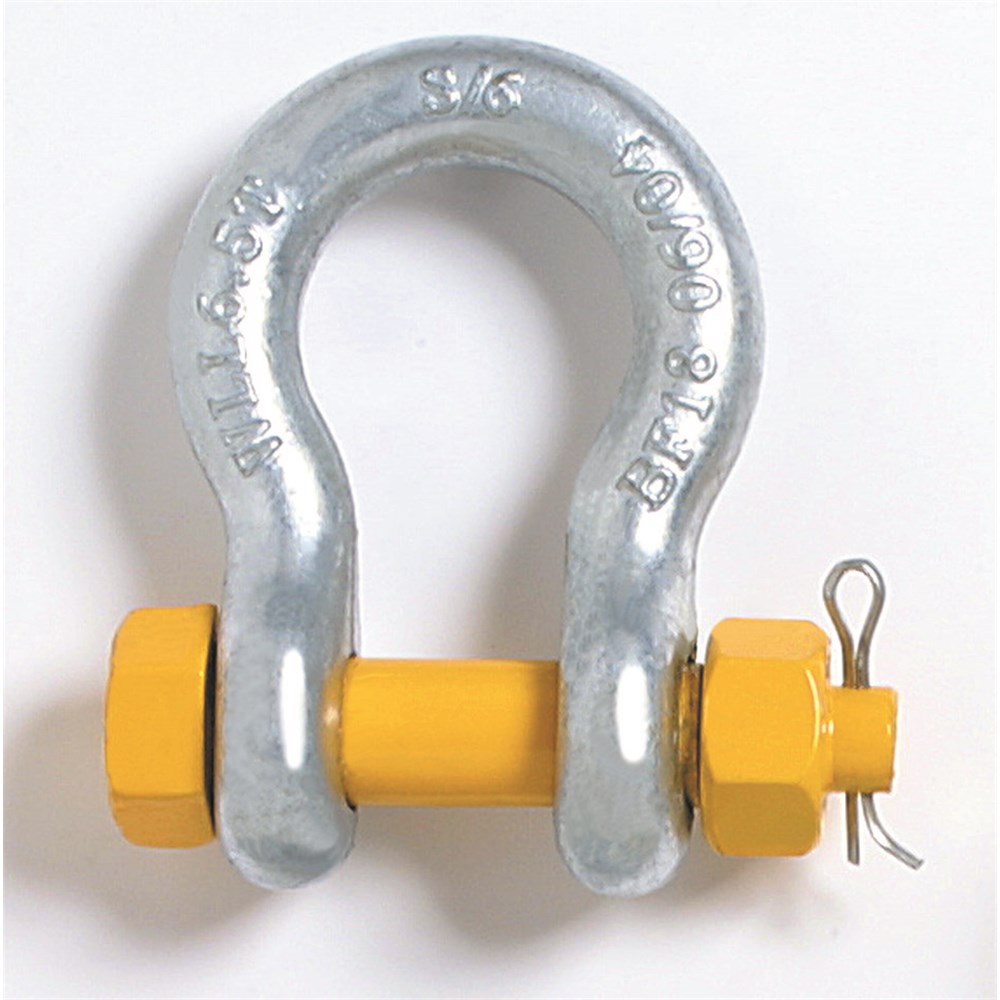

Beaver Grade S Safety Pin Bow Shackle 6.5t
244322per Each
$21.80 Trade inc GST$24.22 without a trade accountTrade accounts save 10% — apply with your ABN
| WLL | 6.5t |
| Size | 22mm x 25mm |
| Type | Grade S |
| Shape | Bow |
| Weight | 1.88kg |
| Diameter | 22mm |
| Closing Method | Safety Pin |
| Inside Width (W) | 37mm |
| Pin Diameter (D) | 25mm |
| Width of Bow (B) | 58mm |
| Diameter Boss (F) | 54mm |
| Inside Length (L) | 84mm |
| Working Load Limit | 6.5t |
Full specifications
| Product Code | Size | WLL | Type | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|
| 244313 | 13mm x 16mm | 2t | Grade S | Bow | Safety Pin | 0.44kg |
| 244316 | 16mm x 19mm | 3.2t | Grade S | Bow | Safety Pin | 0.79kg |
| 244319 | 19mm x 22mm | 4.7t | Grade S | Bow | Safety Pin | 1.26kg |
| 244322 | 22mm x 25mm | 6.5t | Grade S | Bow | Safety Pin | 1.88kg |
| 244325 | 25mm x 29mm | 8.5t | Grade S | Bow | Safety Pin | 2.78kg |
| 244329 | 29mm x 32mm | 9.5t | Grade S | Bow | Safety Pin | 3.87kg |
| 244332 | 32mm x 35mm | 12t | Grade S | Bow | Safety Pin | 5.26kg |
| 244335 | 35mm x 38mm | 13.5t | Grade S | Bow | Safety Pin | 6.94kg |
| 244338 | 38mm x 41mm | 17t | Grade S | Bow | Safety Pin | 8.79kg |
| 244345 | 45mm x 51mm | 25t | Grade S | Bow | Safety Pin | 14.99kg |
| 244351 | 51mm x 57mm | 35t | Grade S | Bow | Safety Pin | 20.65kg |
| 244357 | 57mm x 63mm | 45t | Grade S | Bow | Safety Pin | 32.5kg |
| 244363 | 63mm x 70mm | 55t | Grade S | Bow | Safety Pin | 41.05kg |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Width of Bow (B) | Diameter Boss (F) |
|---|---|---|---|---|---|---|---|
| 244313 | 13mm x 16mm | 13mm | 16mm | 21mm | 48mm | 33mm | 33mm |
| 244316 | 16mm x 19mm | 16mm | 19mm | 27mm | 61mm | 43mm | 40mm |
| 244319 | 19mm x 22mm | 19mm | 22mm | 32mm | 72mm | 51mm | 48mm |
| 244322 | 22mm x 25mm | 22mm | 25mm | 37mm | 84mm | 58mm | 54mm |
| 244325 | 25mm x 29mm | 25mm | 29mm | 43mm | 95mm | 68mm | 60mm |
| 244329 | 29mm x 32mm | 29mm | 32mm | 46mm | 108mm | 74mm | 67mm |
| 244332 | 32mm x 35mm | 32mm | 35mm | 52mm | 119mm | 83mm | 76mm |
| 244335 | 35mm x 38mm | 35mm | 38mm | 57mm | 133mm | 92mm | 84mm |
| 244338 | 38mm x 41mm | 38mm | 41mm | 60mm | 146mm | 98mm | 92mm |
| 244345 | 45mm x 51mm | 45mm | 51mm | 73mm | 178mm | 127mm | 110mm |
| 244351 | 51mm x 57mm | 51mm | 57mm | 83mm | 197mm | 146mm | 127mm |
| 244357 | 57mm x 63mm | 57mm | 63mm | 97mm | 218mm | 156mm | 136mm |
| 244363 | 63mm x 70mm | 63mm | 70mm | 105mm | 267mm | 184mm | 152mm |
