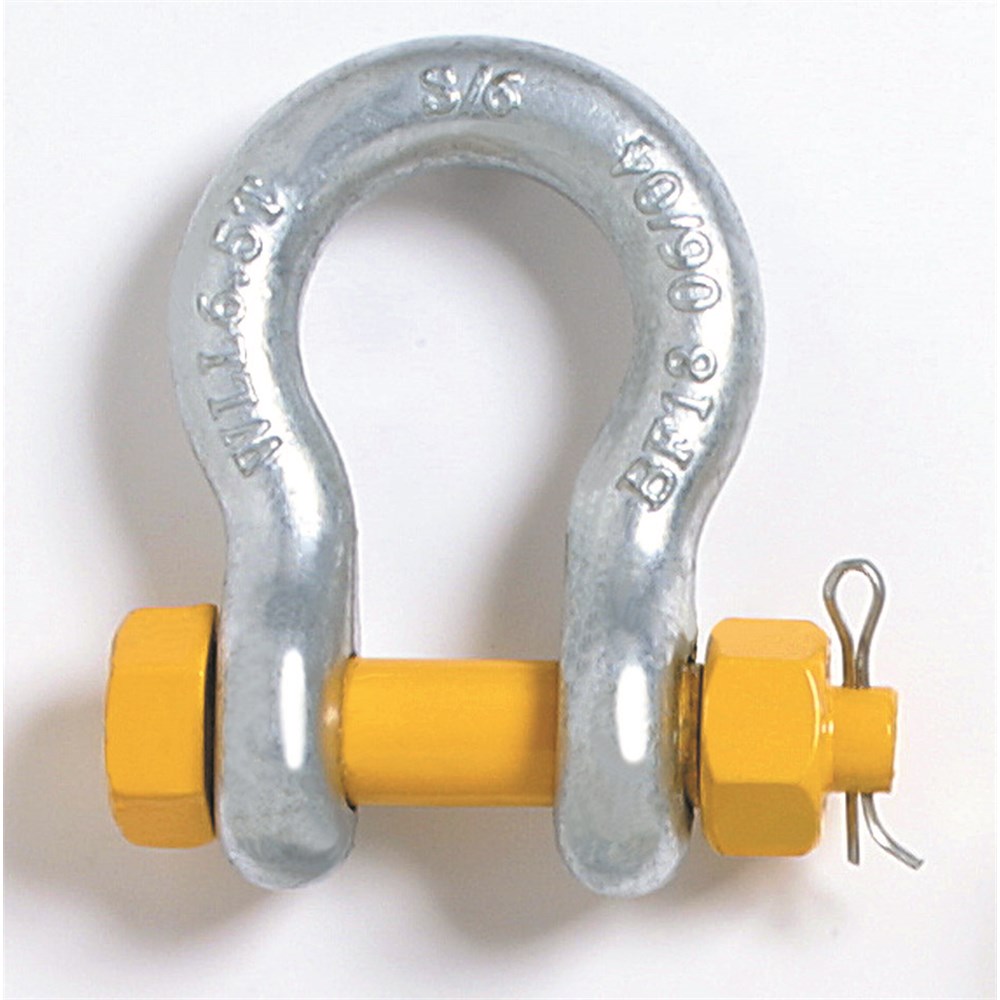

Beaver Grade S Safety Pin Bow Shackle 4.7t
244319per Each
$17.02 inc GSTTrade $15.32, save $1.70Trade accounts save 10%. Apply with your ABN
| WLL | 4.7t |
| Size | 19mm x 22mm |
| Type | Grade S |
| Shape | Bow |
| Weight | 1.26kg |
| Diameter | 19mm |
| Closing Method | Safety Pin |
| Inside Width (W) | 32mm |
| Pin Diameter (D) | 22mm |
| Width of Bow (B) | 51mm |
| Diameter Boss (F) | 48mm |
| Inside Length (L) | 72mm |
| Working Load Limit | 4.7t |
About this product
The Beaver Grade S Safety Pin Bow Shackle 4.7t is a hot dip galvanised bow shackle for lifting and towing where the connection stays put for the long haul. The 19mm body takes a 22mm safety pin with nut and cotter, so the pin cannot work loose if the load slides and tries to rotate it. Working load limit is 4.7t.
Inside width is 32mm and inside length 72mm, with a 51mm bow to take multi-leg slings or a few chain legs without crowding. Diameter across the boss is 48mm, and the shackle weighs 1.26kg. Each one is marked with WLL, quality grade, size and batch ID or date of manufacture, proof tested to the Australian Standard and complies to AS 2741. Test certificates are available on request.
Common questions
- what is the WLL of a 19mm bow shackle
- This Beaver Grade S bow shackle has a working load limit of 4.7t, with a 19mm body and a 22mm pin.
- safety pin vs screw pin shackle which one do i need
- A safety pin shackle uses a nut and cotter, which suits long-term or permanent rigging and any job where the load may slide on the pin and rotate it. Screw pin types are better for connections you undo often.
- are beaver grade s shackles galvanised
- Yes, they are hot dip galvanised for corrosion protection, which helps on outdoor and exposed work.
Full specifications
| Product Code | Size | WLL | Type | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|
| 244313 | 13mm x 16mm | 2t | Grade S | Bow | Safety Pin | 0.44kg |
| 244316 | 16mm x 19mm | 3.2t | Grade S | Bow | Safety Pin | 0.79kg |
| 244319 | 19mm x 22mm | 4.7t | Grade S | Bow | Safety Pin | 1.26kg |
| 244322 | 22mm x 25mm | 6.5t | Grade S | Bow | Safety Pin | 1.88kg |
| 244325 | 25mm x 29mm | 8.5t | Grade S | Bow | Safety Pin | 2.78kg |
| 244329 | 29mm x 32mm | 9.5t | Grade S | Bow | Safety Pin | 3.87kg |
| 244332 | 32mm x 35mm | 12t | Grade S | Bow | Safety Pin | 5.26kg |
| 244335 | 35mm x 38mm | 13.5t | Grade S | Bow | Safety Pin | 6.94kg |
| 244338 | 38mm x 41mm | 17t | Grade S | Bow | Safety Pin | 8.79kg |
| 244345 | 45mm x 51mm | 25t | Grade S | Bow | Safety Pin | 14.99kg |
| 244351 | 51mm x 57mm | 35t | Grade S | Bow | Safety Pin | 20.65kg |
| 244357 | 57mm x 63mm | 45t | Grade S | Bow | Safety Pin | 32.5kg |
| 244363 | 63mm x 70mm | 55t | Grade S | Bow | Safety Pin | 41.05kg |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Width of Bow (B) | Diameter Boss (F) |
|---|---|---|---|---|---|---|---|
| 244313 | 13mm x 16mm | 13mm | 16mm | 21mm | 48mm | 33mm | 33mm |
| 244316 | 16mm x 19mm | 16mm | 19mm | 27mm | 61mm | 43mm | 40mm |
| 244319 | 19mm x 22mm | 19mm | 22mm | 32mm | 72mm | 51mm | 48mm |
| 244322 | 22mm x 25mm | 22mm | 25mm | 37mm | 84mm | 58mm | 54mm |
| 244325 | 25mm x 29mm | 25mm | 29mm | 43mm | 95mm | 68mm | 60mm |
| 244329 | 29mm x 32mm | 29mm | 32mm | 46mm | 108mm | 74mm | 67mm |
| 244332 | 32mm x 35mm | 32mm | 35mm | 52mm | 119mm | 83mm | 76mm |
| 244335 | 35mm x 38mm | 35mm | 38mm | 57mm | 133mm | 92mm | 84mm |
| 244338 | 38mm x 41mm | 38mm | 41mm | 60mm | 146mm | 98mm | 92mm |
| 244345 | 45mm x 51mm | 45mm | 51mm | 73mm | 178mm | 127mm | 110mm |
| 244351 | 51mm x 57mm | 51mm | 57mm | 83mm | 197mm | 146mm | 127mm |
| 244357 | 57mm x 63mm | 57mm | 63mm | 97mm | 218mm | 156mm | 136mm |
| 244363 | 63mm x 70mm | 63mm | 70mm | 105mm | 267mm | 184mm | 152mm |
